ToqueCAN
$ 105.95
Pi Toque With 2x CAN, 3 Port USB Hub and 24V>5V@5A Regulator
In stock
Discover why our customers are raving about us! With an amazing 97% 5-star rating on Trustpilot, we’re committed to giving you the ultimate 3D printing experience.

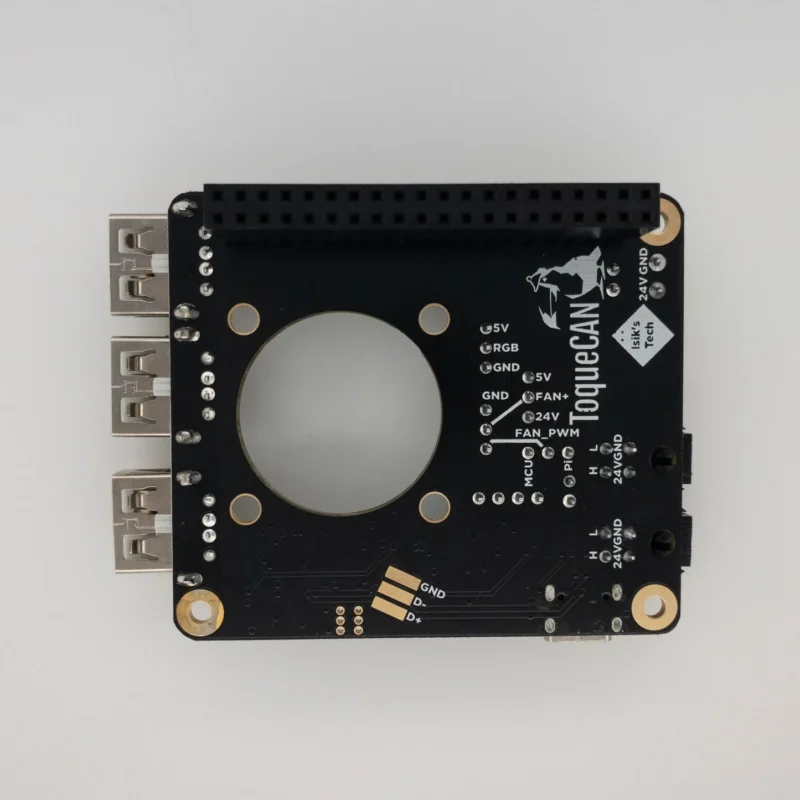

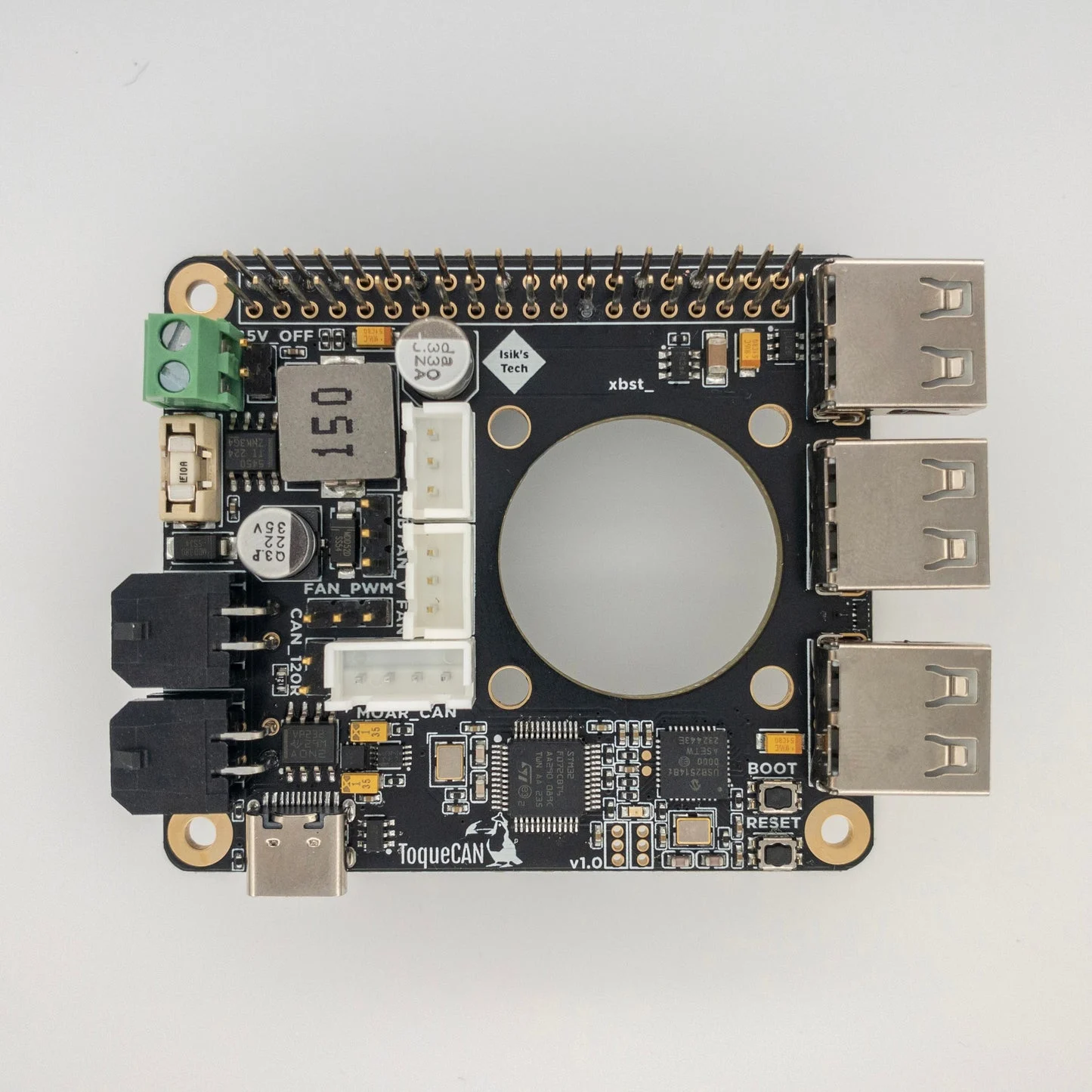

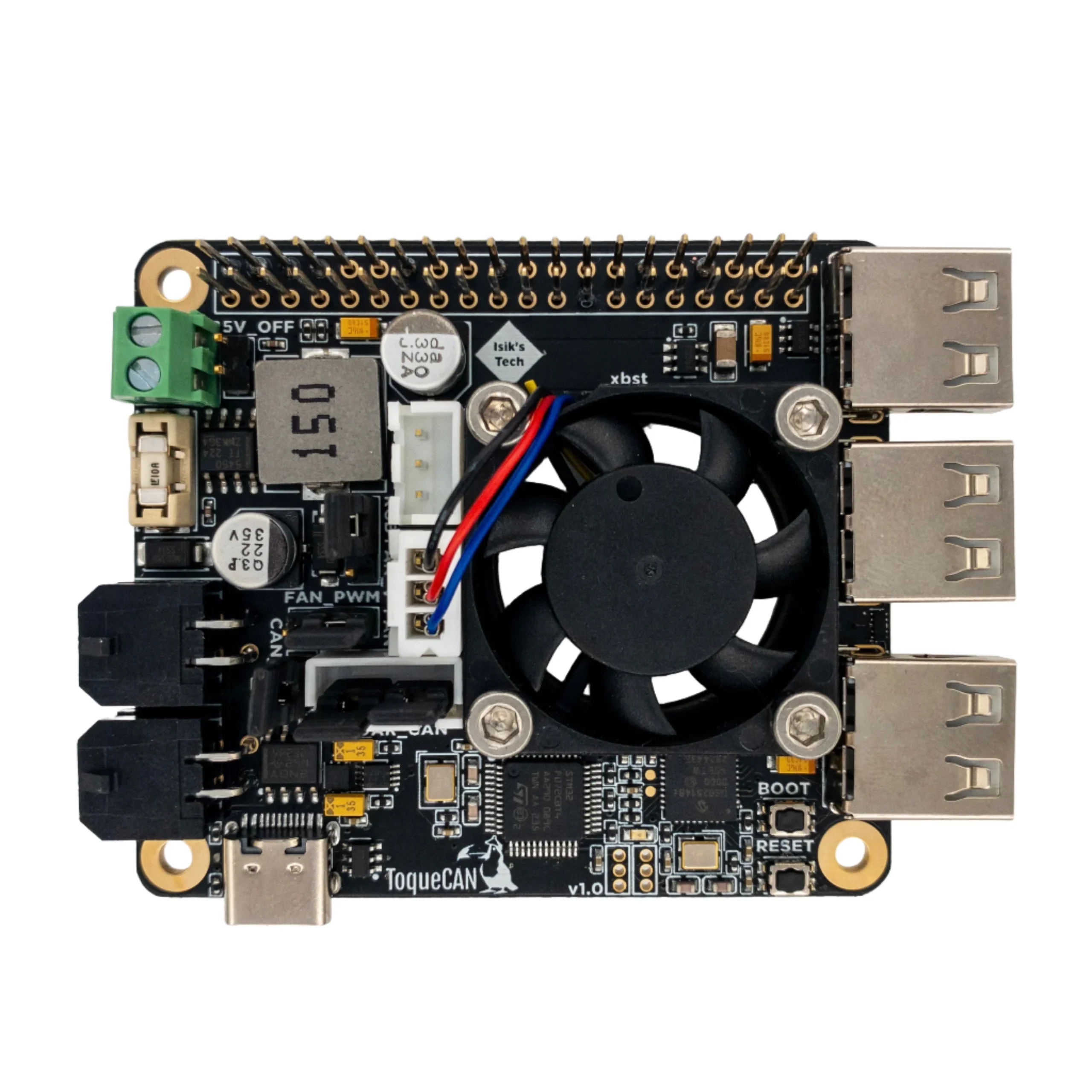

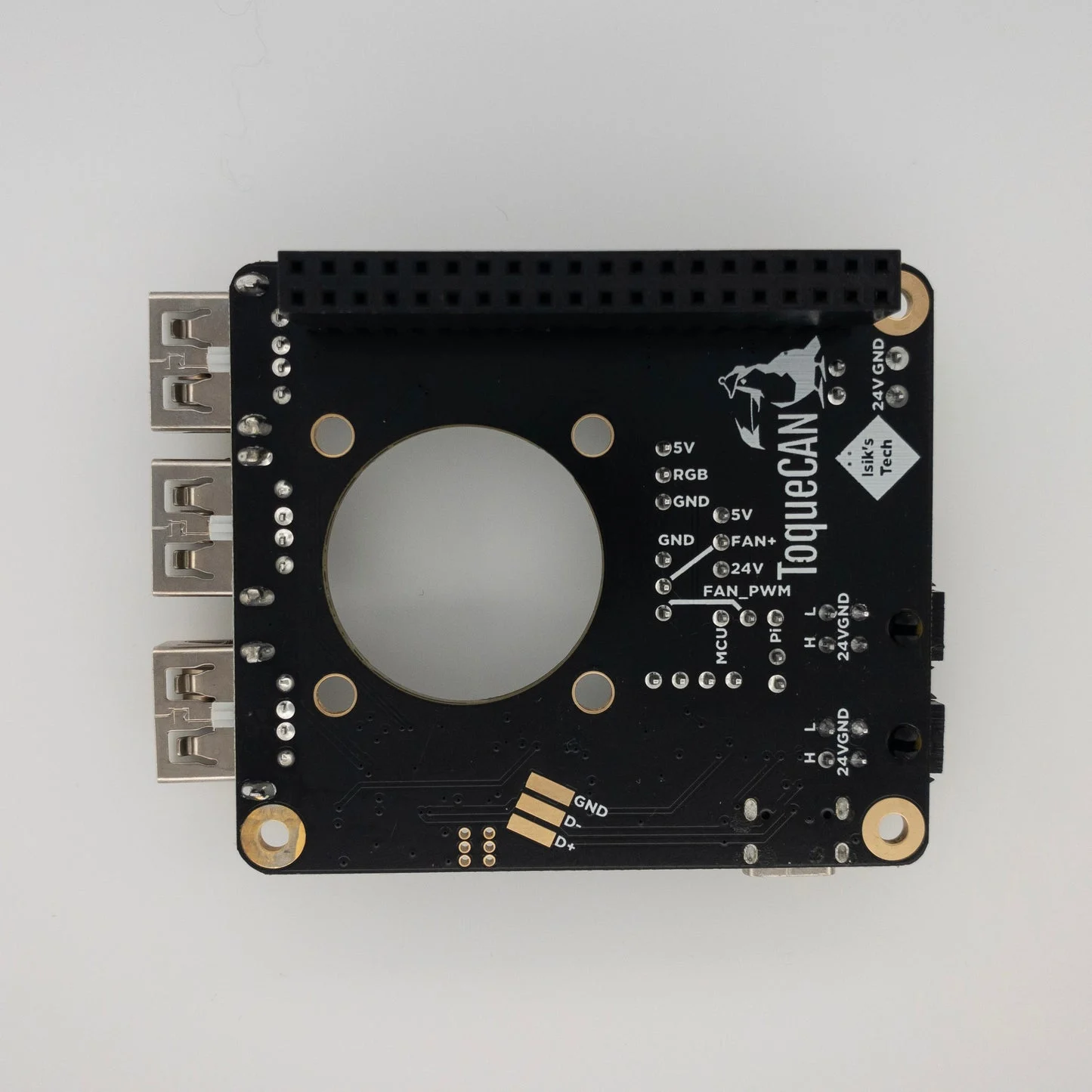

ToqueCAN is an open-source Raspberry Pi toque* with:
- A CAN transceiver with 2x CAN connectors
- 3 port USB hub
- 24V to 5V 5A regulator for powering the Pi and USB devices
- Pi cooling fan (30mm or 40mm) mount with PWM speed control
- Neopixel control
- GPIO passthrough
- Supports Klipper and Candlelight firmwares

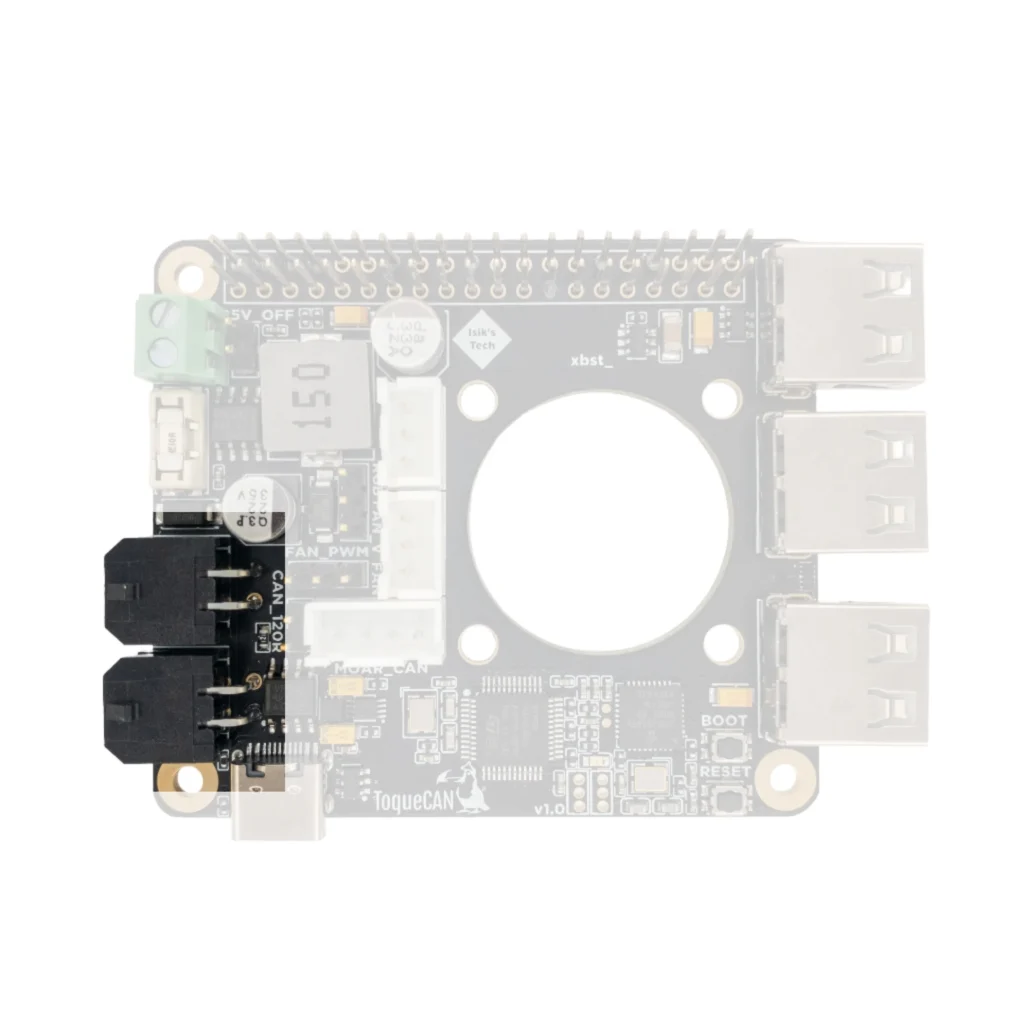

CAN Bus Connectors
|
|---|
|
2x (2×2) MX3.0 connectors for CAN bus communication and power supply for up to 2 CAN bus devices. Up to 1M CAN is supported using a SN65HVD232 transceiver and a STM32F072 MCU for the firmware. Both Candlelight and Klipper (in bridge mode) firmwares are supported. Even more CAN devices are supported through the MOAR_CAN expansion connector. (Normally populatedwith 2x jumpers) |

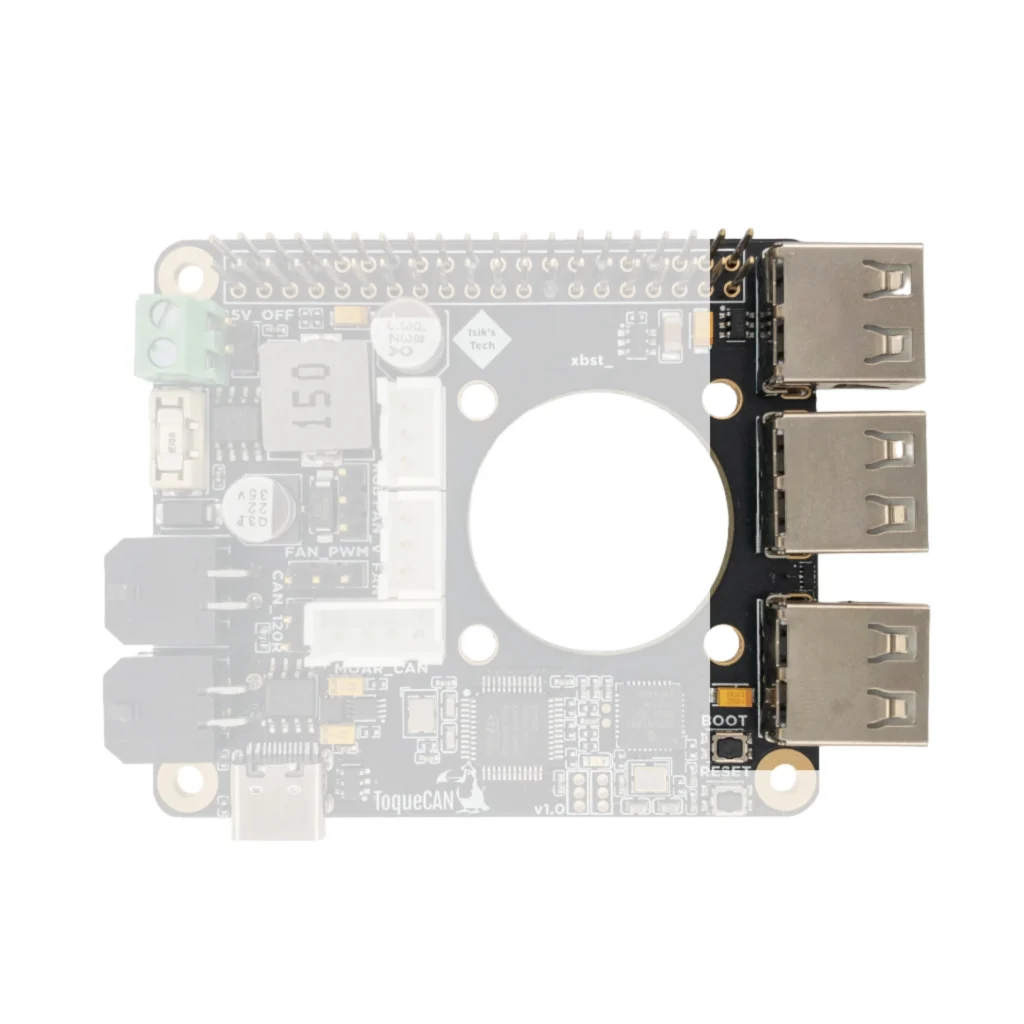

3 Port USB Hub
|
|---|
| 3x USB-A connectors are available through the 4-port USB hub built into the ToqueCAN. The other USB port is internally connected to the MCU for CAN bus. Connect
to your Raspberry Pi (or similar SBC) using a short USB A to C cable (not included in the box). A 180-degree USB adapter is included in the box for a more compact USB cable routing. |

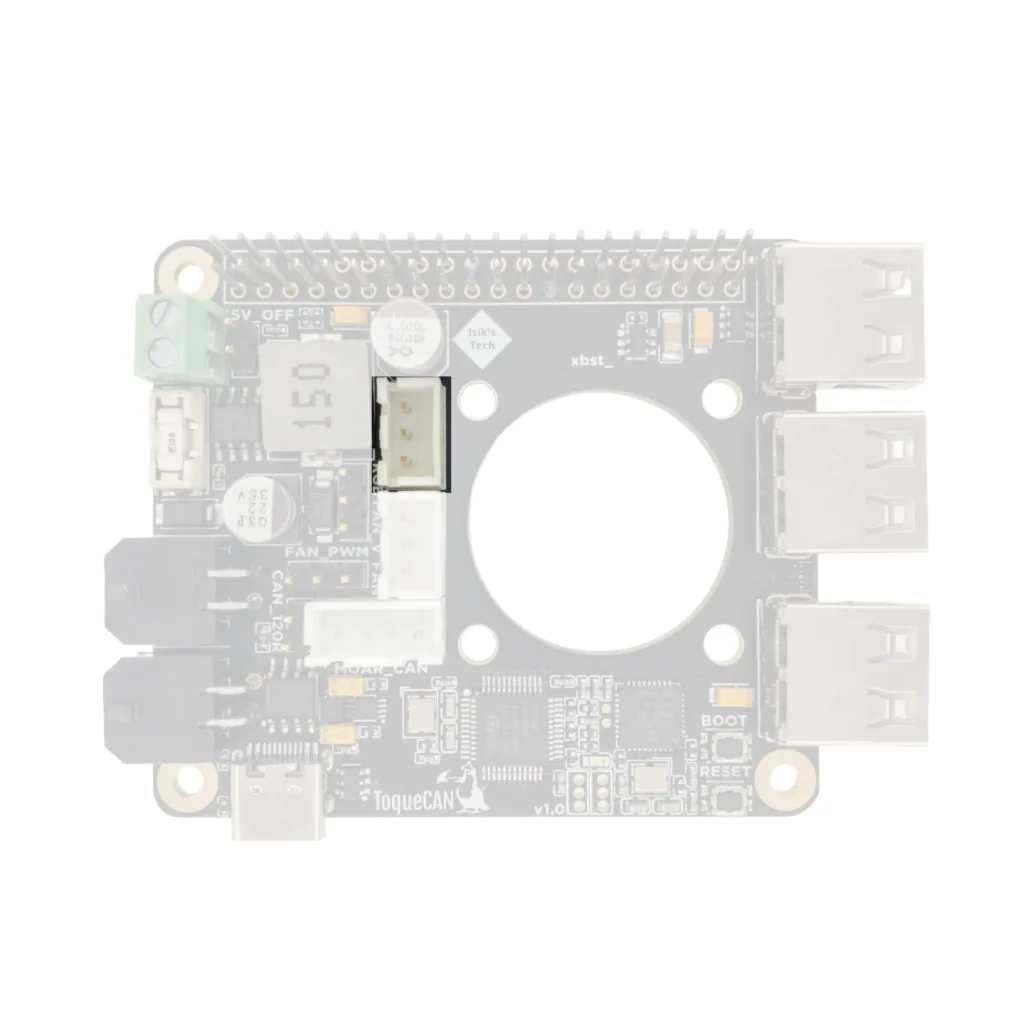

Neopixel LED Control
|
|---|
| 5V addressable RGB LED connector for controlling LEDs like Neopixels, WS2812 (RGB), SK6812 (RGBW) and similar. Neopixel control is only supported when using
Klipper (in bridge mode) firmware. |

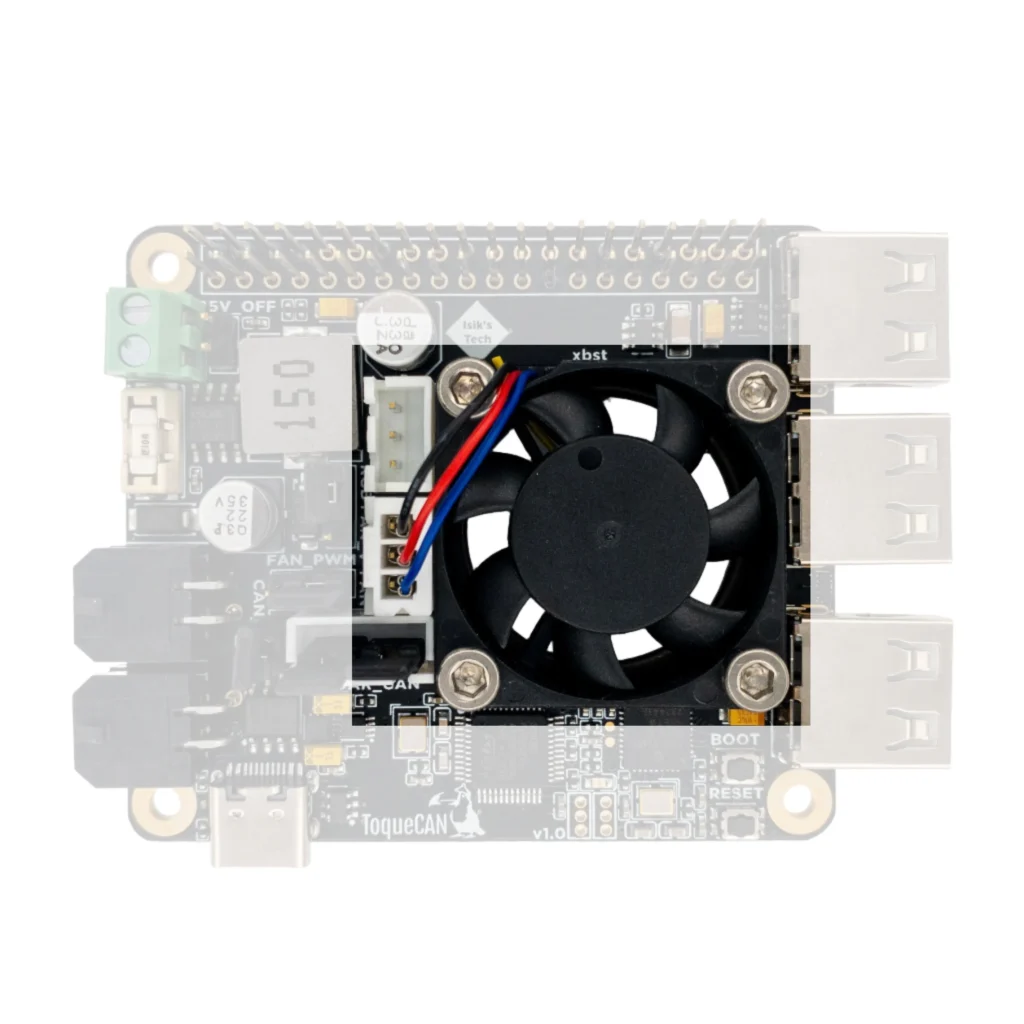

30mm / 40mm PWM Fan Support
|
|---|

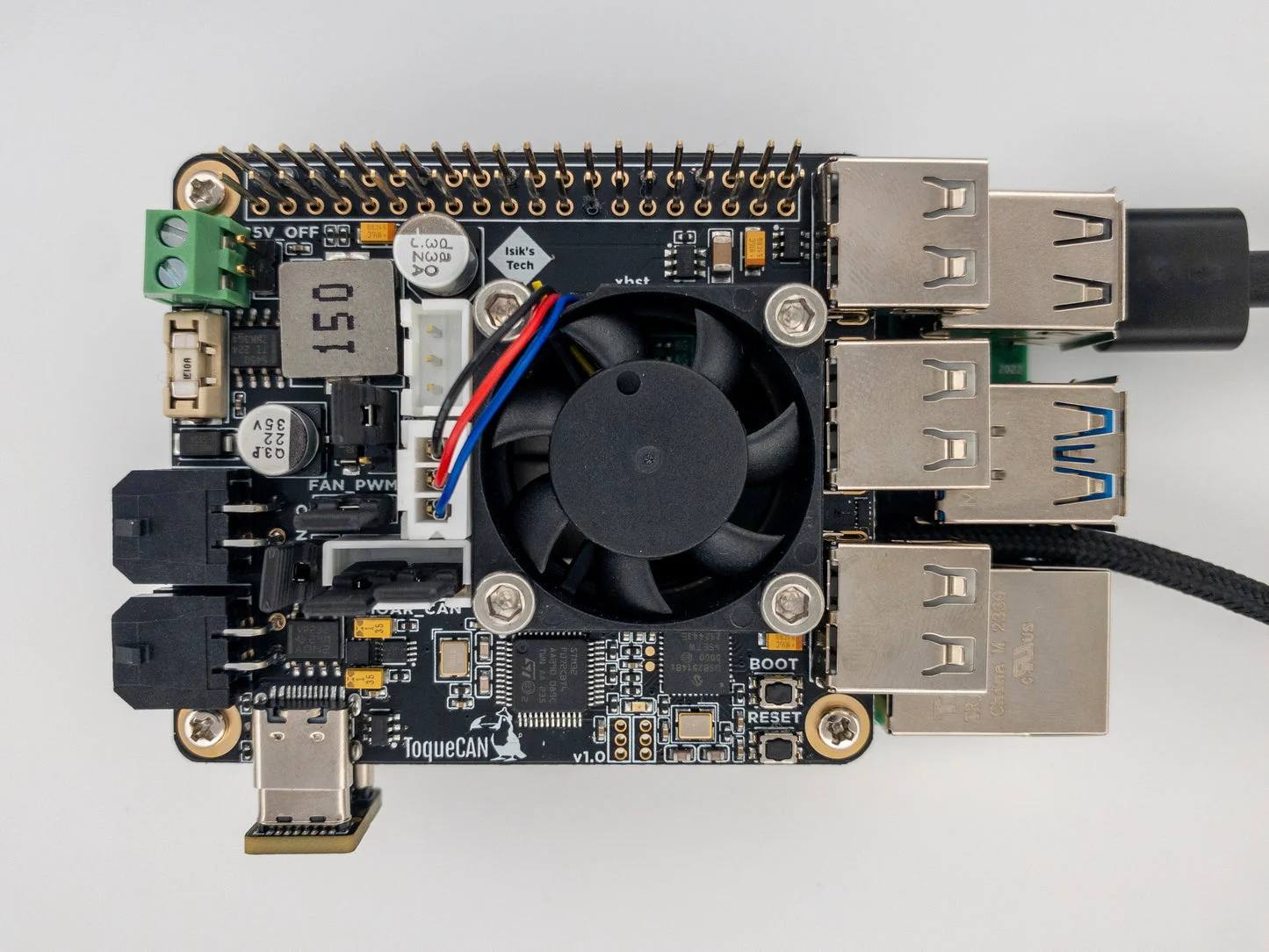

| ToqueCAN supports PWM fans for cooling the Raspberry Pi (or similar SBC). 5V and 24V (or input voltage) fans are supported. For fan speed control (PWM), the
signal can come from the MCU if using Klipper in bridge mode firmware, or it can come from the Raspberry Pi. Jumpers on the PCB are used to configure these settings. ToqueCAN has a 30mm fan cutout on the PCB. Fans up to 40mm are supported. Fan mount requires 3D-printed parts. Fan and fan mounting hardware are not included. |

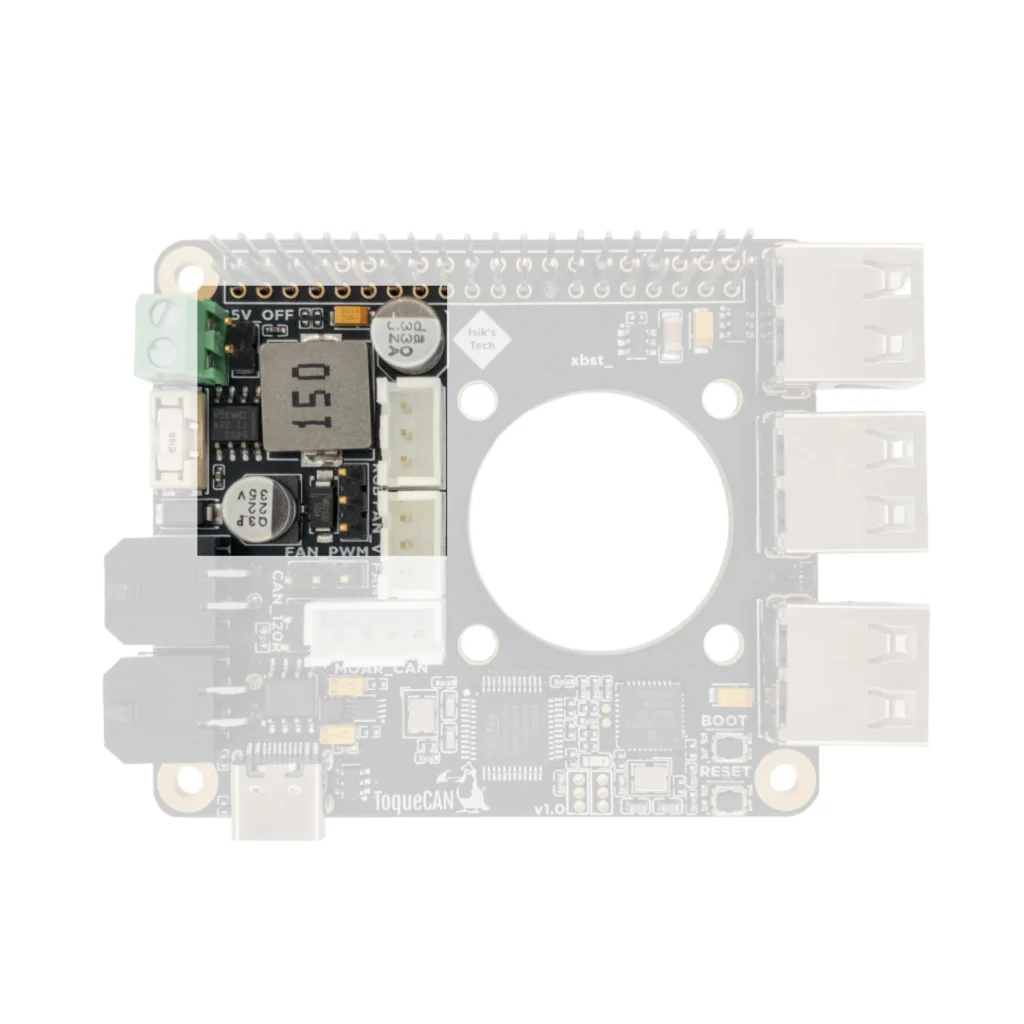

5V Regulator
|
|---|
|
ToqueCAN features a buck converter for powering the Raspberry Pi (or other similar SBC), USB devices and the ToqueCAN itself from your printer’s power supply. Input voltages up to 24V are supported. |

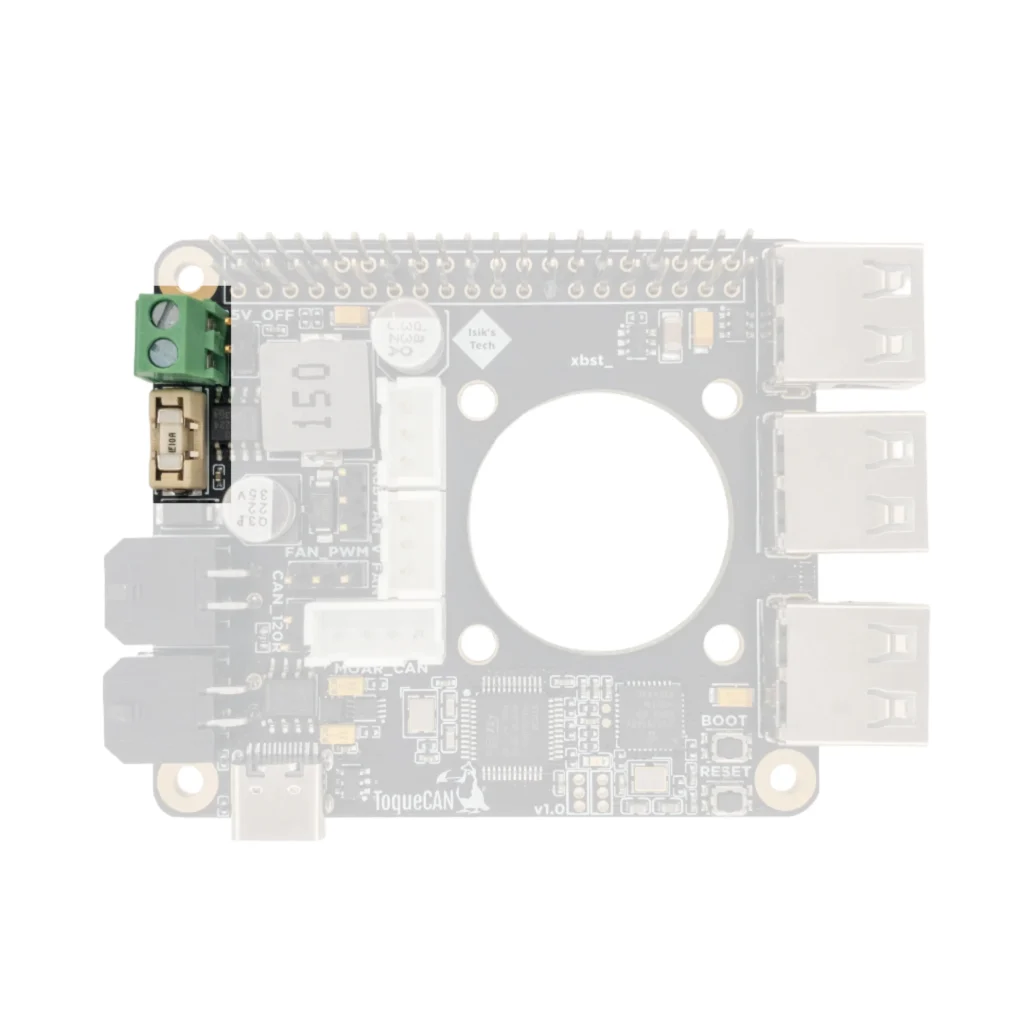

Power Input
|
|---|
| Screw terminal for power input for the ToqueCAN. Input voltages up to 24V are supported. Up to 8A is available for power draw through the CAN bus connectors. 10A
fused (replaceable) for protection. |

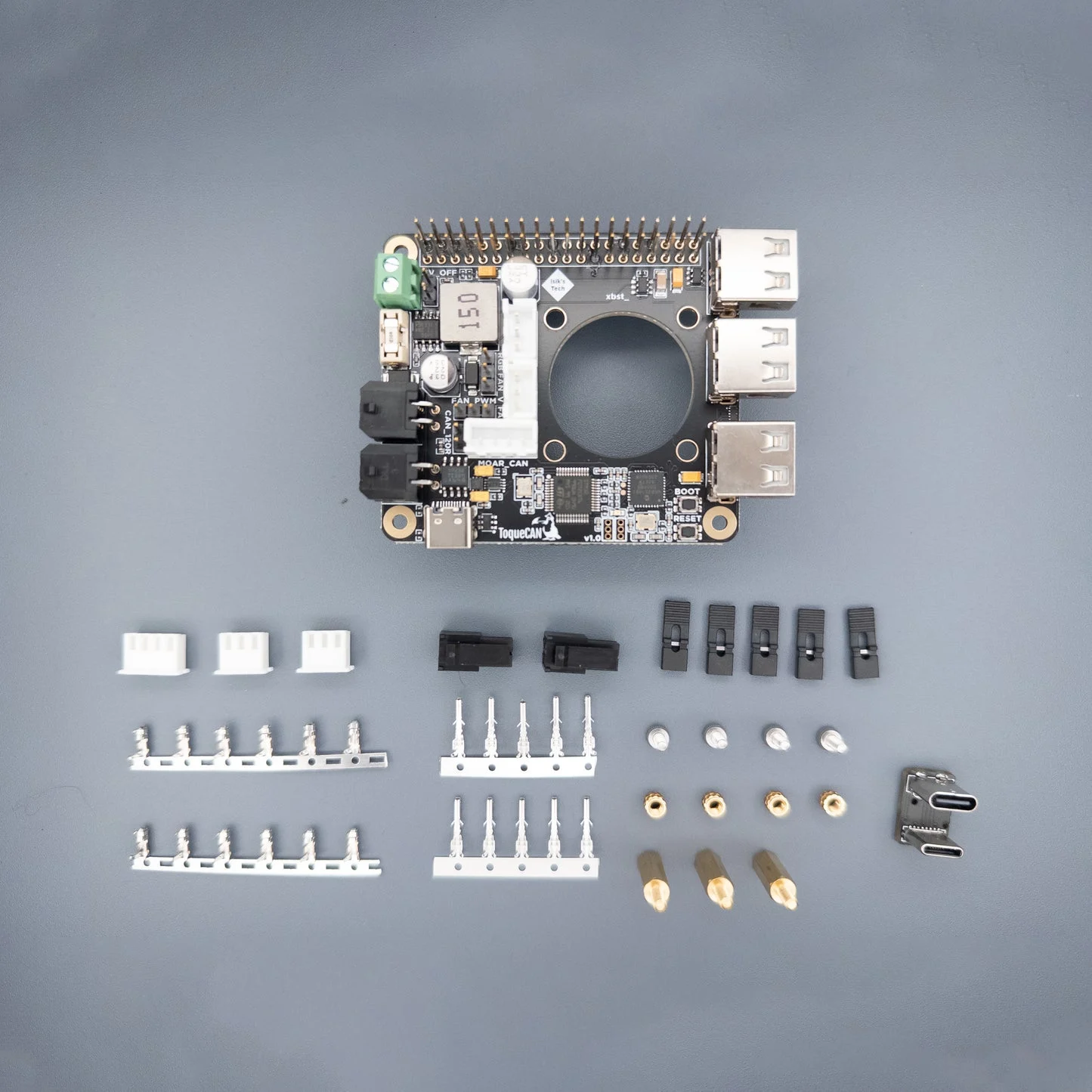

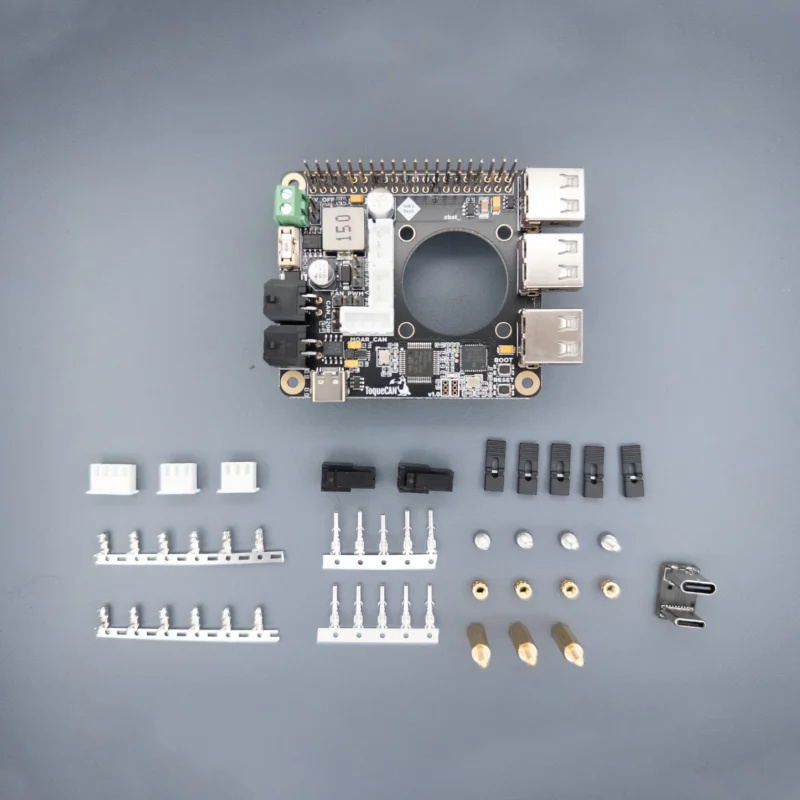

Included Hardware 2x MX3.0 Connectors and Pins
|
|---|
|
Open Source
|
|---|
| ToqueCAN is open-source hardware. The source files, gerbers, BOM, 3D CAD models, STLs for fan mounts, manual and more can be found on its GitHub repo.
I am the original creator of this project; every sale here helps me fund the development of future open-source PCB projects. Thanks! |
Additional information
| Weight | 0.110 kg |
|---|---|
| Dimensions | 21 × 14 × 8 cm |
