Description

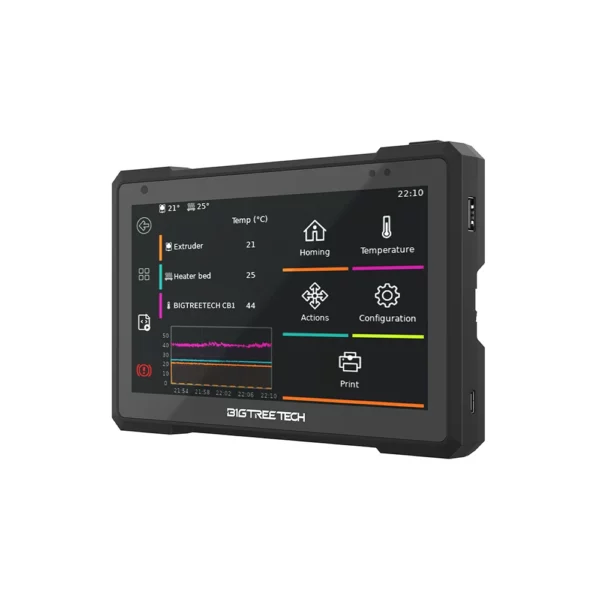

The BIGTREETECH Pad 7, a product of Shenzhen Big Tree Technology Co., Ltd., is a tablet equipped with pre-installed Klipper and KlipperScreen. The BTB headers have been engineered to provide users with the flexibility to select from various solutions, including CM4, CB1, and more.
NOTES
There are two options for this screen,one is Pad 7 with CB1;the other is Pad 7 (without CB1)Users can purchase CB1 or CM4 for installation.
Specifications
1. Dimensions: 185.7 x 124.78 x 39.5 mm
2. Display Viewing Area: 154.2 x 85.92 mm
3. Display: 7 inches, 1024 x 600, 60Hz refresh rate
4. Viewing Angle: 178°
5. Brightness: 500 Cd/m²
6. Input: DC 12V, 2A
7. Rated Power: 7.3W
8. Display Port: HDMI
9. Touch Port: USB-HID
10. PC Connection: Type-C (CM4 eMMC writing OS)
11. Interface: USB 2.0 x 3, Ethernet, CAN, SPI, SOC-Card, 3.5mm Jack
12. Core Board: BIGTREETECH CB1 v2.2, 1GB, with a 32 GB memory card
13. Compatible: CM4Voron 2.4，Ender 3，B1 SE PLUS
Feature Highlights
- The 7-inch IPS touch screen offers a wider field of view, high level of detail, and a comfortable user experience.
- Features a built-in speaker, which allows you to adjust the volume with the volume buttons.
- Having a 3.5mm headphone jack, which enables you to connect headphones or external speakers.
- The touch experience is enhanced with vibration feedback.
- The built-in light sensor adjusts the backlight brightness automatically based on the available light.
- Incorporates the GT911 high-performance touch chip, which supports 5-point touch.
- The bracket attaches securely to the back of the Pad 7 during storage and folding, thanks to the built-in magnets.
Advantage
- Klipper Pre-installed
- 7-inch IPS Touch Screen
- 1024×600178° Viewing Angle
- CB1/CM4 Compatibility
- Rich Expansion Interface
- Open Source Support
