This is the 12-24v operating voltage version TMC5160. Because of the lack of components, the high-voltage version cannot be made temporarily, but this version is sufficient for normal use. If you need 5160, this is a good choice.

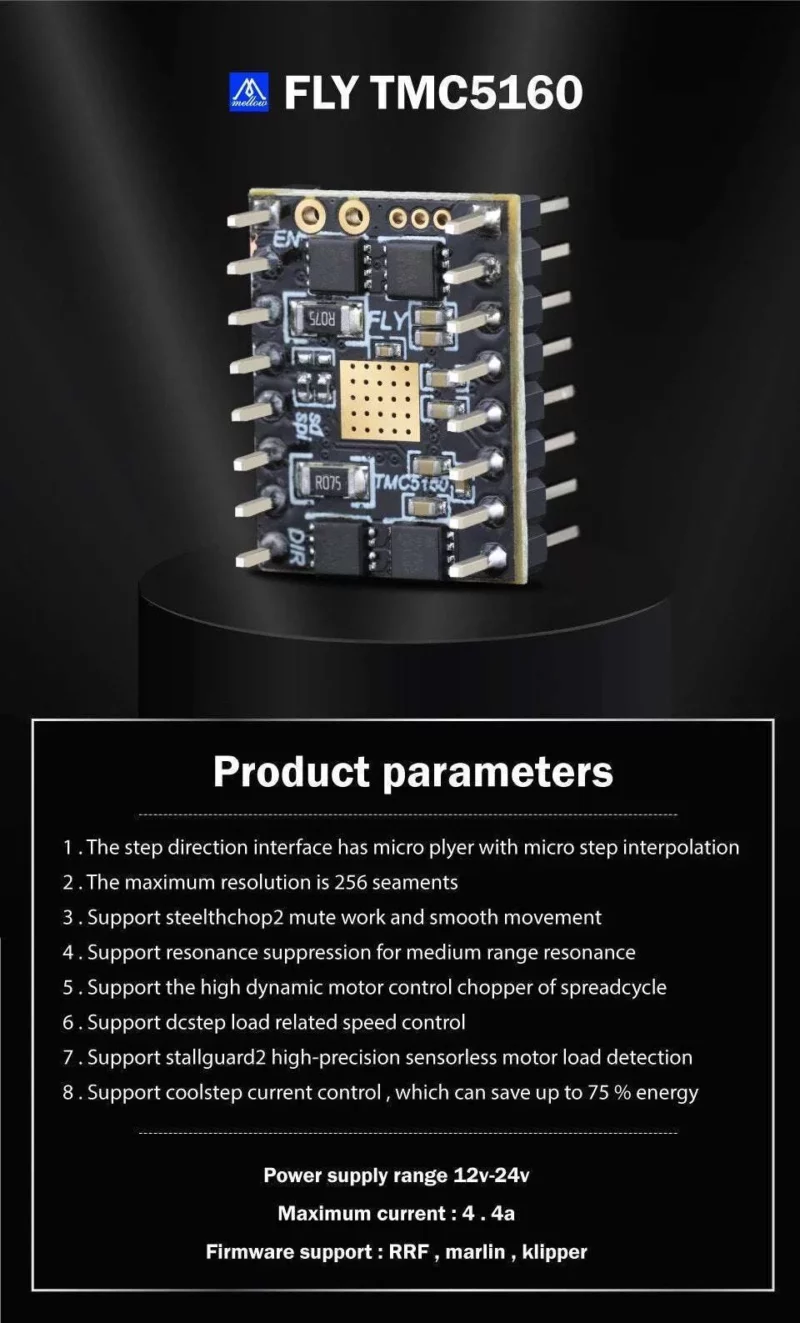

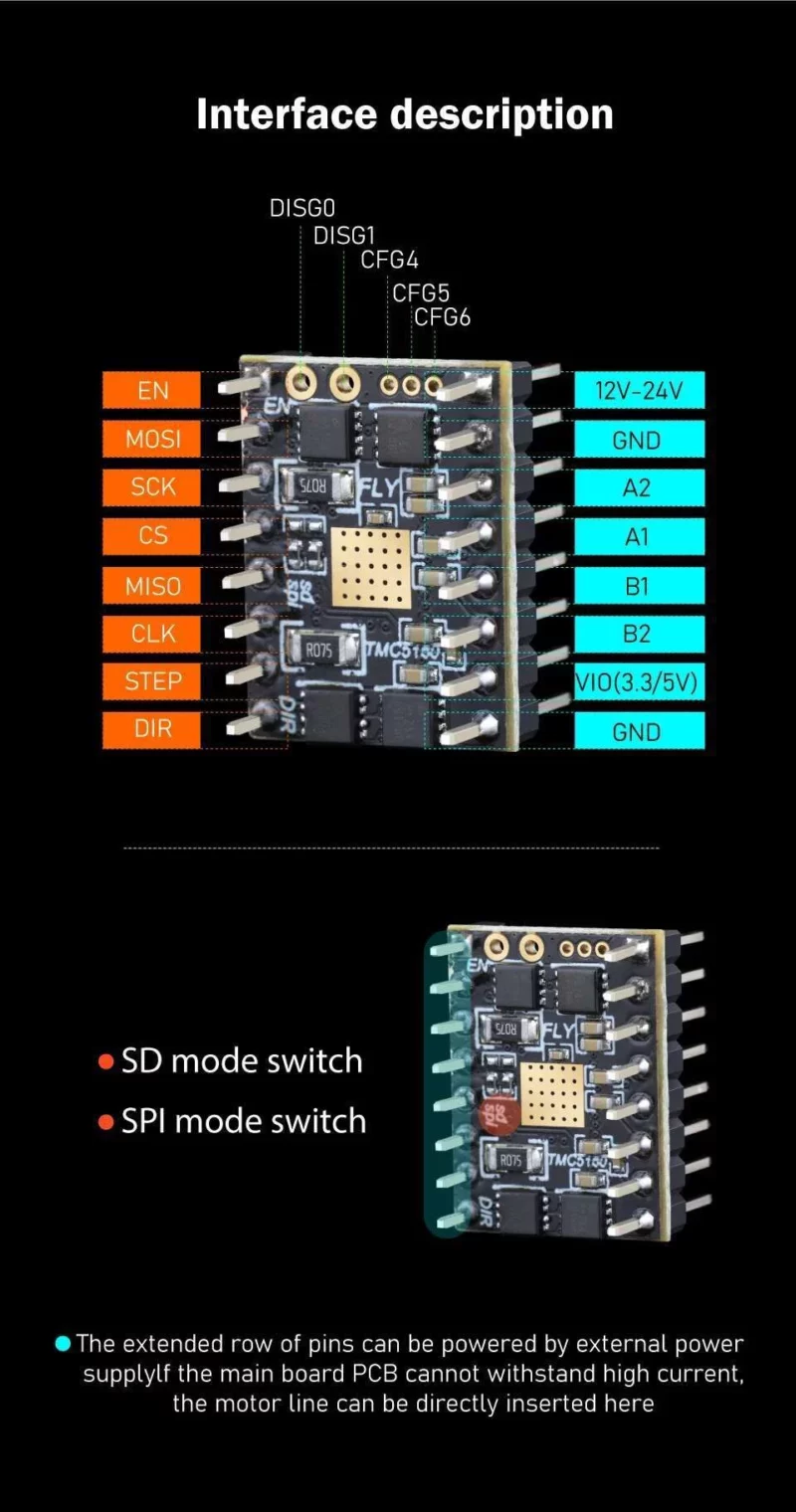

1 Step/direction interface with microstep interpolation microPlyer
2 The highest resolution is 256 subdivisions
3 Support stealthChop2 silent work and smooth motion
4 Supports resonance suppression for mid-range resonance
5 Support spreadCycle high dynamic motor control chopper
6 Support dcStep load related speed control
7 Supports stallGuard2 high-precision sensorless motor load detection
8 Support coolStep current control, which can achieve up to 75% energy saving
