HIWIN Rat Rig V-Core 4 Linear Rail – Preloaded Z0, Z1
$ 408.95 – $ 453.85
Discover why our customers are raving about us! With an amazing 97% 5-star rating on Trustpilot, we’re committed to giving you the ultimate 3D printing experience.

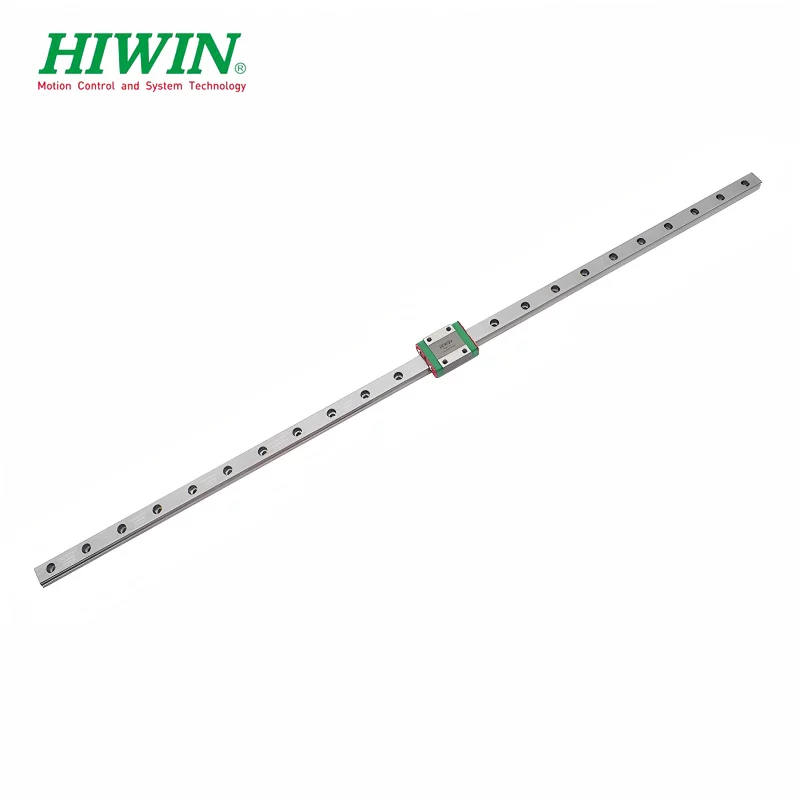

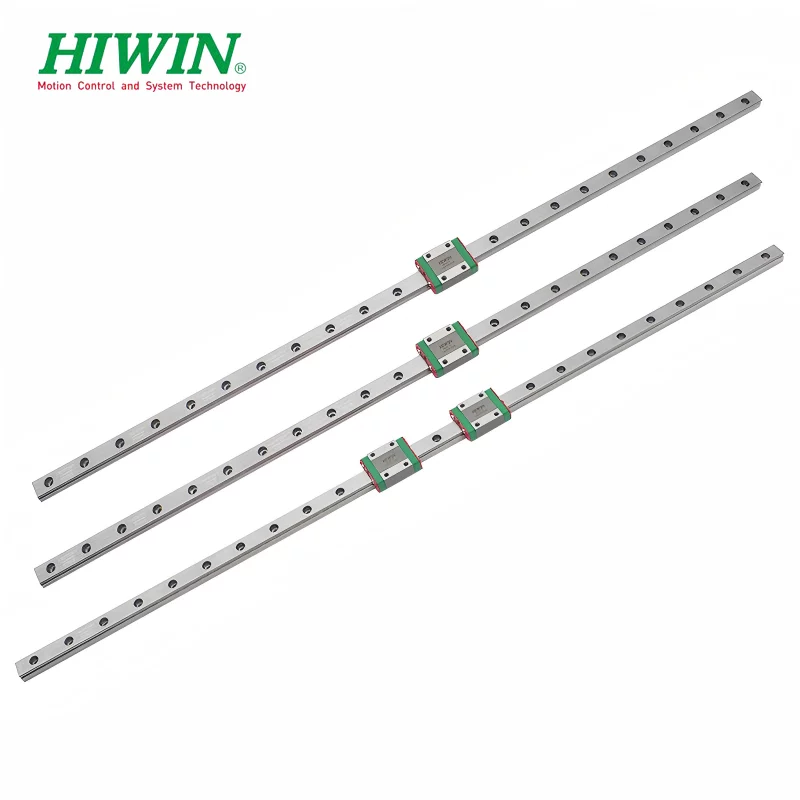

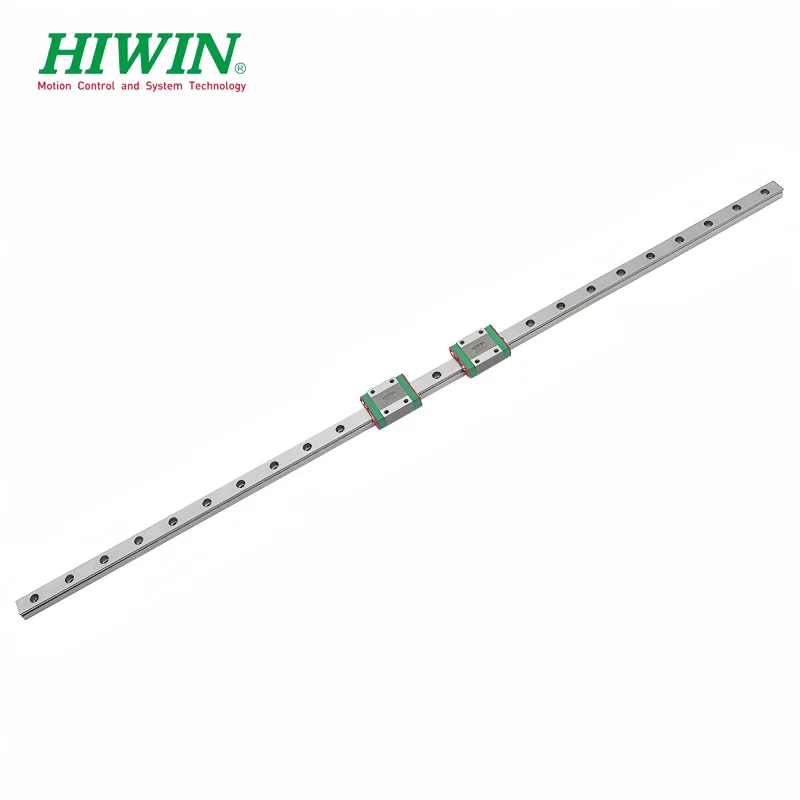

HIWIN Rat Rig V-Core 4 Linear Rail 400 & 500 MGN12H MGN12C Y X Rail
Packing List
V-Core 4 400 = HIWIN MGN12 500MM X2 + HIWIN MGN12C 575MM X1
V-Core 4 500 = HIWIN MGN12 600MM X2 + HIWIN MGN9H 675MM X1
- Preload : Z0/Z1
- Precision: C
- Material: Stainless Steel (Martensitic Stainless Steel)
- Block Pre-Installed
What Is Z0/Z1 Preload
- Z0-Block moves down under its own weight on the rail, with free movement
- Z1-Block will stay on the rail and move only under additional weight or force, It needs to be pushed to move
# There is a 1-2mm tolerance in rail cutting, please notice
# HIWIN linear rail stainless steel is martensitic stainless steel, which is why the rail with magnetic

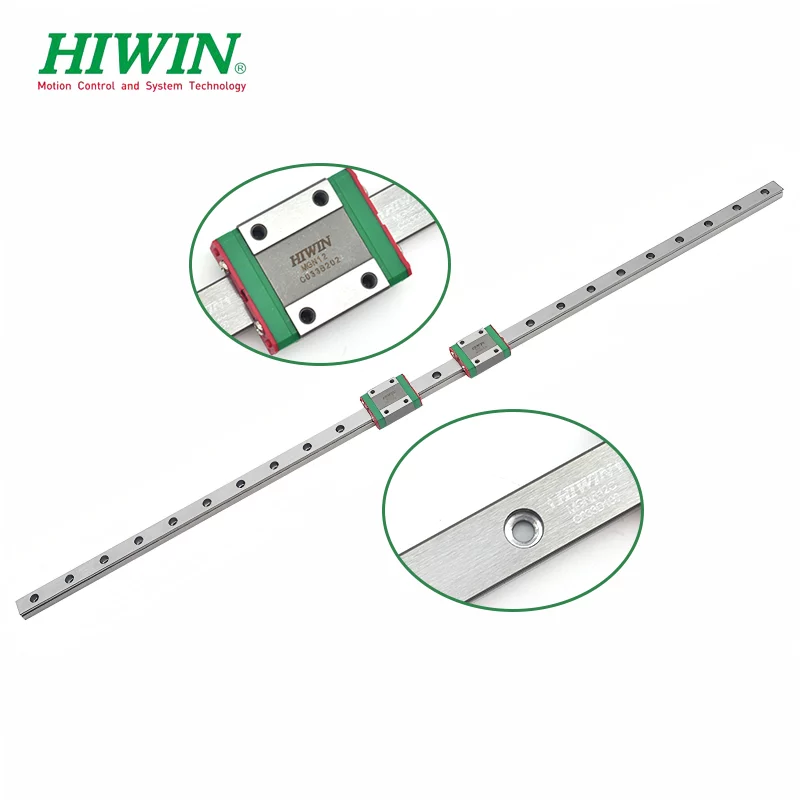

# The Latest Version HIWIN MGN12H Block Laser Engraving MGN12 , MGN9H Marks MGN9, No Difference In Quality
Additional information
| Dimensions | 70 × 13 × 13 cm |
|---|---|
| Model: No selection | V-Core 4 – 400, V-Core 4 – 500 |
| Preload: No selection | X – Z1, Y – Z0 |
