Mellow Fly 24V/48V HV TMC5160 Pro V1.5 Stepper Motor Driver StepStick SPI Silent
$ 37.65 $ 30.12
14 in stock
Discover why our customers are raving about us! With an amazing 97% 5-star rating on Trustpilot, we’re committed to giving you the ultimate 3D printing experience.

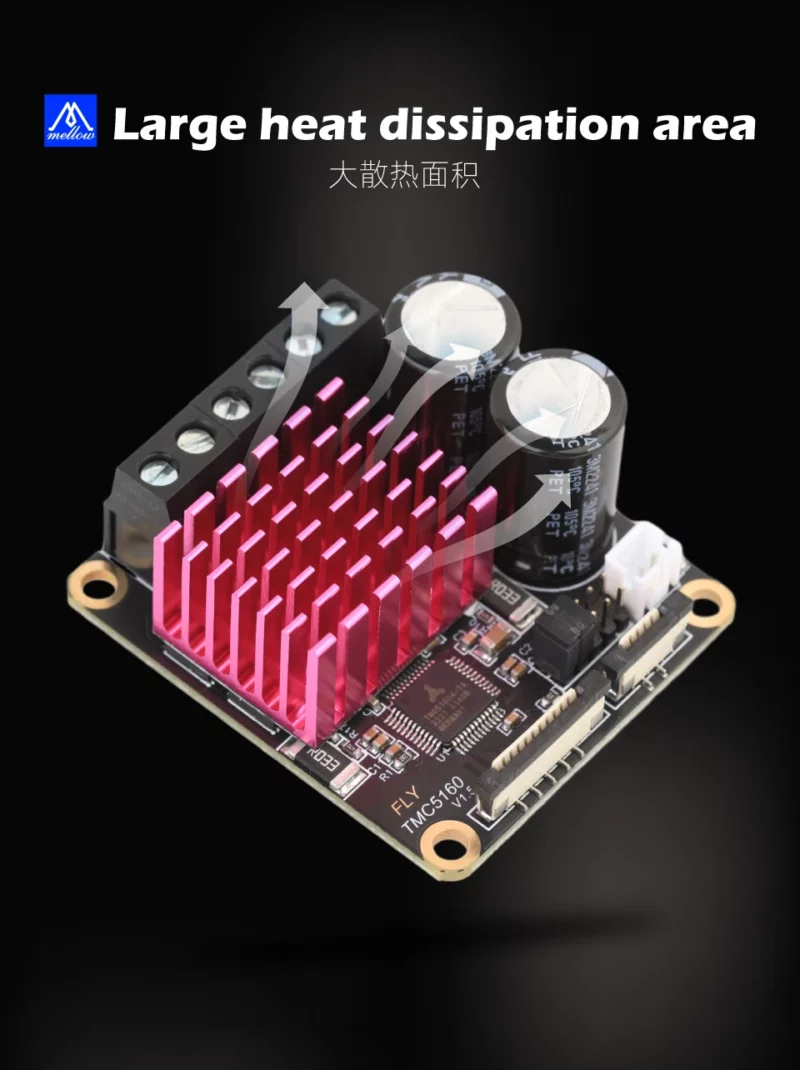

Mellow Fly HV-TMC5160 Pro V1.5 offers two voltage levels of operation 24V and 48VÂ meeting the demands of customers seeking high-voltage stepper motor driver solutions.
SPECIFICATIONS

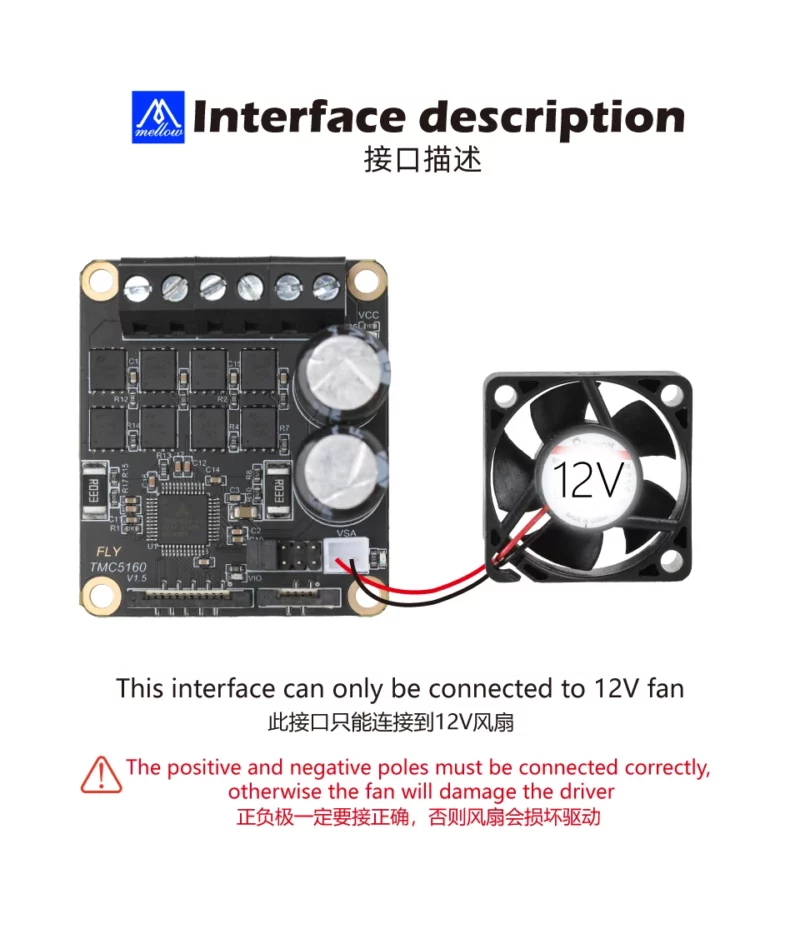

vsa: 12V to 5160 chip

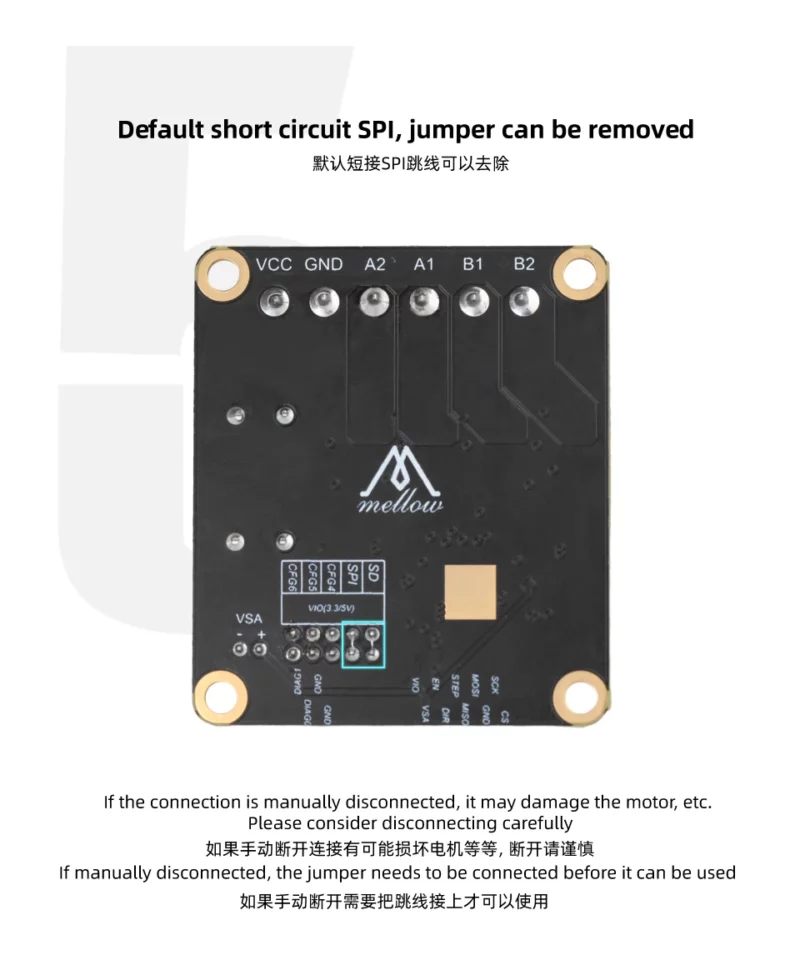

Working Mode: STEP/DIR Default SPI
Usage: 3D Printer Parts
Origin: Mainland China
Note: reference resistor 0.033
Motor operating current: 0-6A
Model Number: 20TMC5160HVPRO
Microsteps: Up to 256 subdivisions
Logic voltage: 3.3V/5V
Item Type: DRIVER

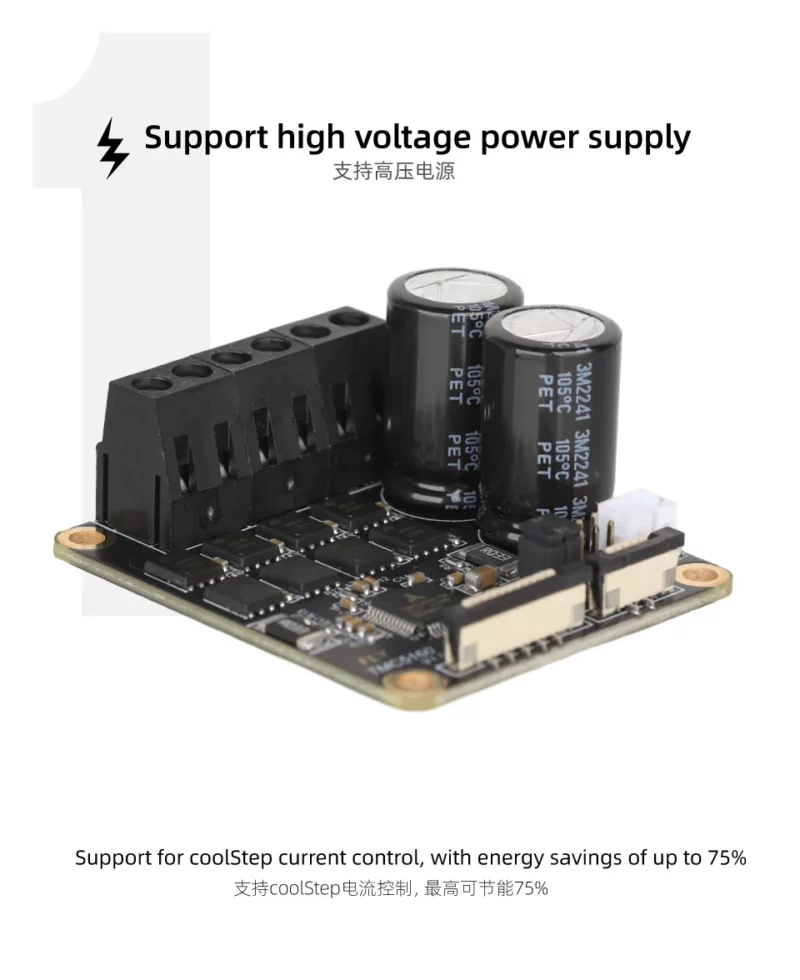

Input voltage range: 24V~48V
Firmware: Marlin,Klipper,RRF
Driver Type: Stepper Motor Driver
Brand Name: Mellow
Additional information
| Weight | 0.07 kg |
|---|---|
| Dimensions | 13 × 10 × 8 cm |
