Fly ProX10

Fly ProX10 3D Printer Motherboard

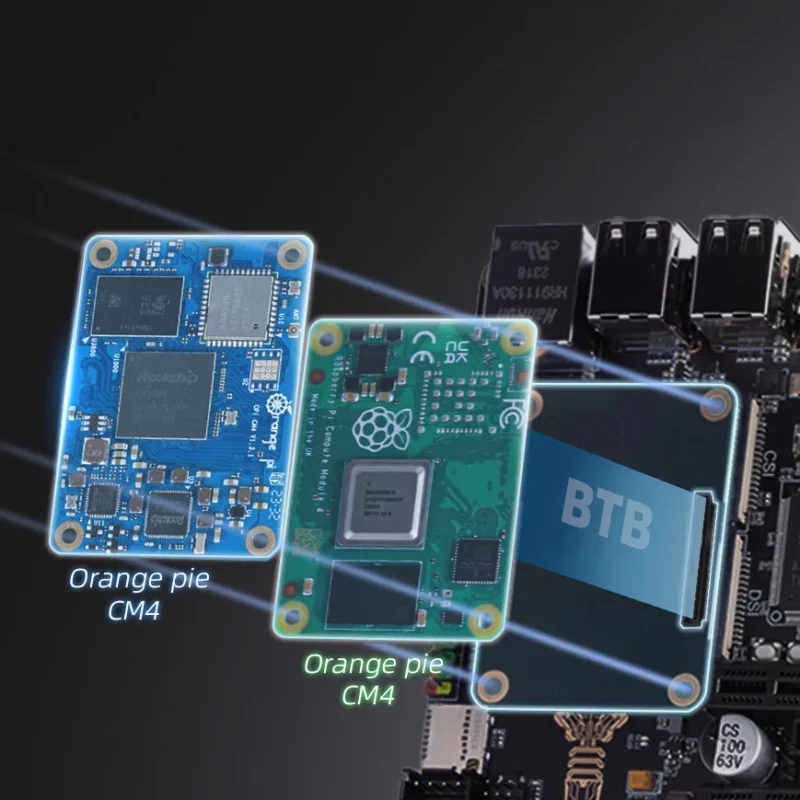

The Fly ProX10 3D printer motherboard stands out with its onboard 550Hz high-performance MCU chip. We’ve taken advantage of the recent price drop of the Raspberry Pi and integrated a BTB port, making it easy to install the Raspberry Pi CM4. This supports the most popular host installation solutions. What’s more, we’ve extended the CM4 port to the motherboard, supporting 40-pin GPIO, HDMI, DSI, CSI, Gigabit Ethernet, and more.

The motherboard includes 10 motor driver ports, each supporting VCC (12V/24V) and a high-voltage 48V power supply for high-speed printing. We have implemented a new TP driver design, where the driver chips are mounted vertically and equipped with heatsinks to improve cooling efficiency. We have also designed unique RGB lighting for DIY enthusiasts on the drivers, allowing for personalised customisation.

This motherboard is our first to feature six two-wire fan ports and two four-wire PWM fan ports for adjustable speed control. The heating system continues to use high-performance MOSFETs, supporting stable output control of up to 200W per port. With 8 limit switch ports, 6 temperature sensor ports, and 6 heater ports, it meets the needs of various user scenarios.

In summary, the ProX10 is a versatile motherboard that can integrate a Raspberry Pi host, offering multi-axis control and various application possibilities for 3D printers. It is compatible with a wide range of DIY 3D printer designs, such as Voron, Vzbot, Hevort, BLV, and more.

-32-bit ARM Cortex-M7 Kernel 550MHz, STM32H723ZGT6 Chip

-Support Klipper Can/RRF CANFD

-Using RepRap firmware, you can use BTB WiFi and support 2.4m/s

-Support 10 independent motor drives（support 48V high voltage）, 5 extruders, 6 PWM fans(6-2 Wires,2-4 Wires)

-The unique design of the PWM Fan MOS board can be directly replaced in case of damage, reducing the difficulty of customer maintenance

Firmware: Klipper/Reprap

Driver support:  A4988, LV8729, DRV8225, TMC2208 / 2209/5160etc.

Drive mode support: TMC: UART / SPI

Display： HDMI, FLY 4.3/7.0 V1, FLY TFT3.5

Support automatic bed levelling sensor: BLTouch

Optional limit switch power supply: 5V / 12V / 24V

Package included

Set1

Fly PRoX10 Board*1

Set2

TP2209*1

Set3

TP5160*1

Set4

TP2209*5

Set5

TP5160*5

Klipper firmware refer to this URL

mellow.klipper.cn

Web generation machine configuration, do not need to know programming

https://teamgloomy.github.io/Configurator
