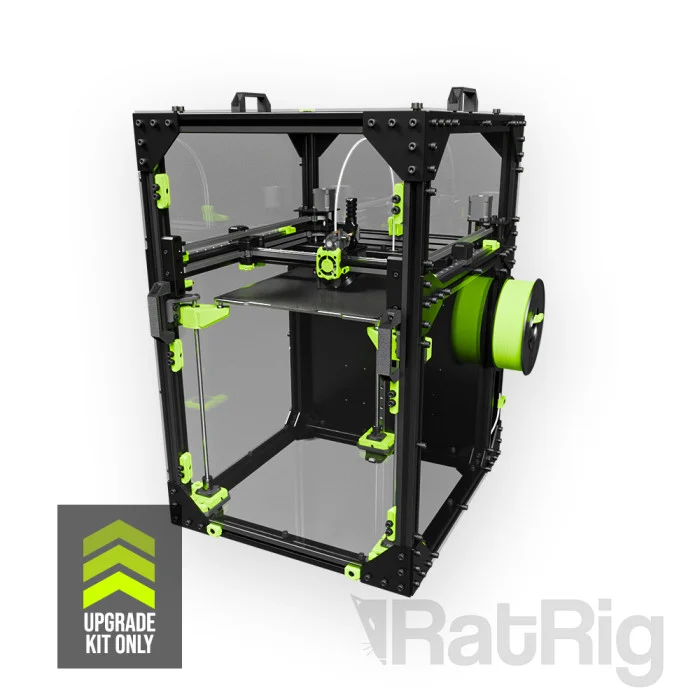

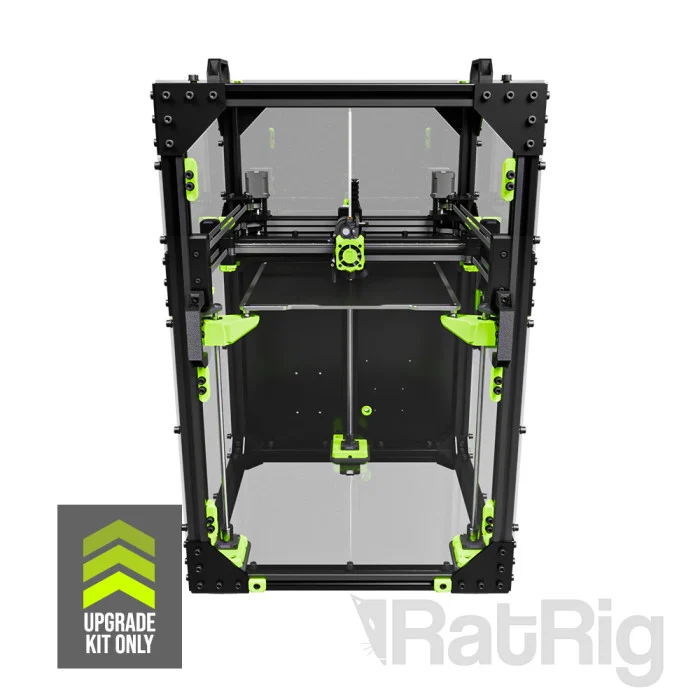

Rat Rig V-Core 3.2H Upgrade Kit

V-Core 3.2H Upgrade Kit - The Ultimate Upgrade Solution

Super-charge your V-Core 3.1 with hybrid kinematics, front access belt tensioning, and a complete XY motion refresh, all in one drop-in kit. Upgrade to the V-Core 3.2H Upgrade Kit to experience enhanced features and performance.



Why Upgrade?

• Higher acceleration and smoother motion
• Front-access belt tensioners
• Metal-reinforced gantry & mounts

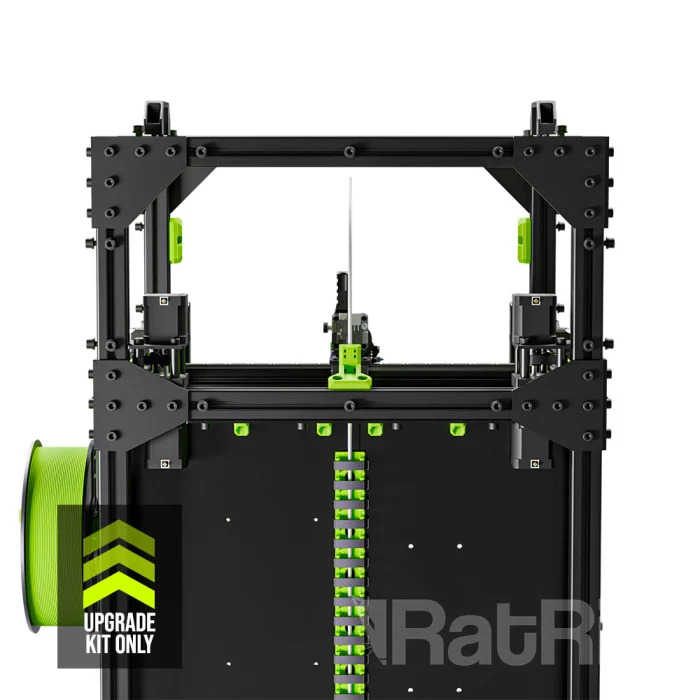

Hybrid X/Y Kinematics

• Borrowed from the V-Core 4.0 to boost performance, the hybrid adds two extra motors to the Y-axis, allowing higher print speeds, higher input shaping acceleration recommendations, cutting down print time while maintaining top-notch quality.

Front-Access Belt Tensioners

• Tune belts straight from the front, no machine flipping or awkward angles.

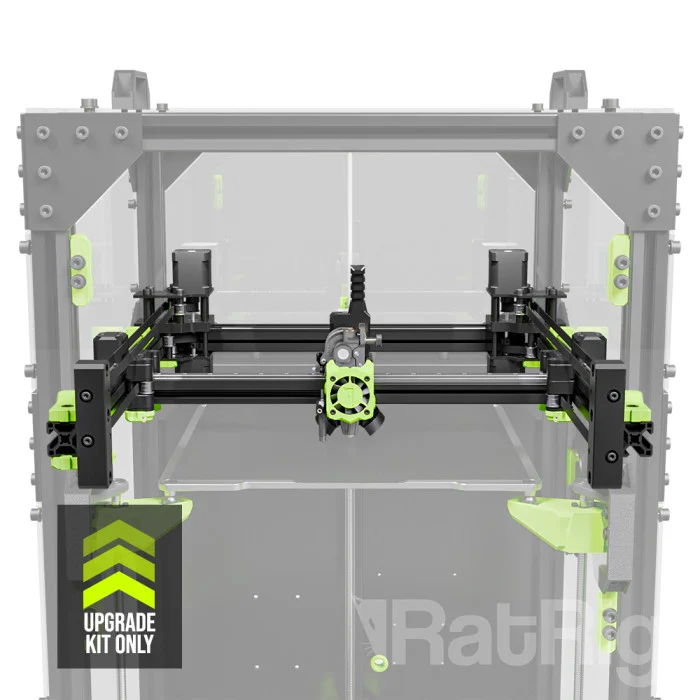

Metal Reinforced X/Y kinematics

High-Temp Hybrid Steppers

• Four new high-temperature X/Y motors are able to handle the enclosed chamber heat.

Kit Includes

• Hybrid X/Y kinematics assembly parts
• Metal-reinforced X-axis gantry
• 4 high-temp hybrid stepper motors
• Full-metal motor mounts & shaft supports
• New tool-head backplate
• 2 Rat Rig OMRON endstops + Y-axis cable
• 2 additional stepper drivers
• Complete idler bearing replacement set
• Genuine Gates belts

Check the full BOM here: V-Core 3.2H BOM The latest technology in the V-Core 3.2H Upgrade Kit guarantees superior print quality.

Designed For

Many users have successfully upgraded to the V-Core 3.2H Upgrade Kit, noting significant improvements.

• V-Core 3.1 – Standard Configuration
• Upgraded with Enclosure 2.0



COMPATIBILITY

The V-Core 3.2H was designed to be installed on the V-Core 3.1 with the Enclosure 2.0 upgrade kit installed. Below you can find alternatives if you have an Open Frame V-Core 3.1. Not compatible with:

• V-Core 3.0
• V-Core 3.1 with Enclosure 1.0

  The V-Core 3.2H is more than just an upgrade; it’s a celebration of the platform that helped us grow, and a thank you to the community that made it all possible. With the V-Core 3.2H Upgrade Kit, you can push the boundaries of your 3D printing capabilities.

---

Documentation

Build Guide: Step-by-step guide here CAD Models: 200 mm | 300 mm | 400 mm | 500 mm BOM: V-Core 3.2H BOM Explore the comprehensive documentation to maximise the benefits of the V-Core 3.2H Upgrade Kit.
