Product

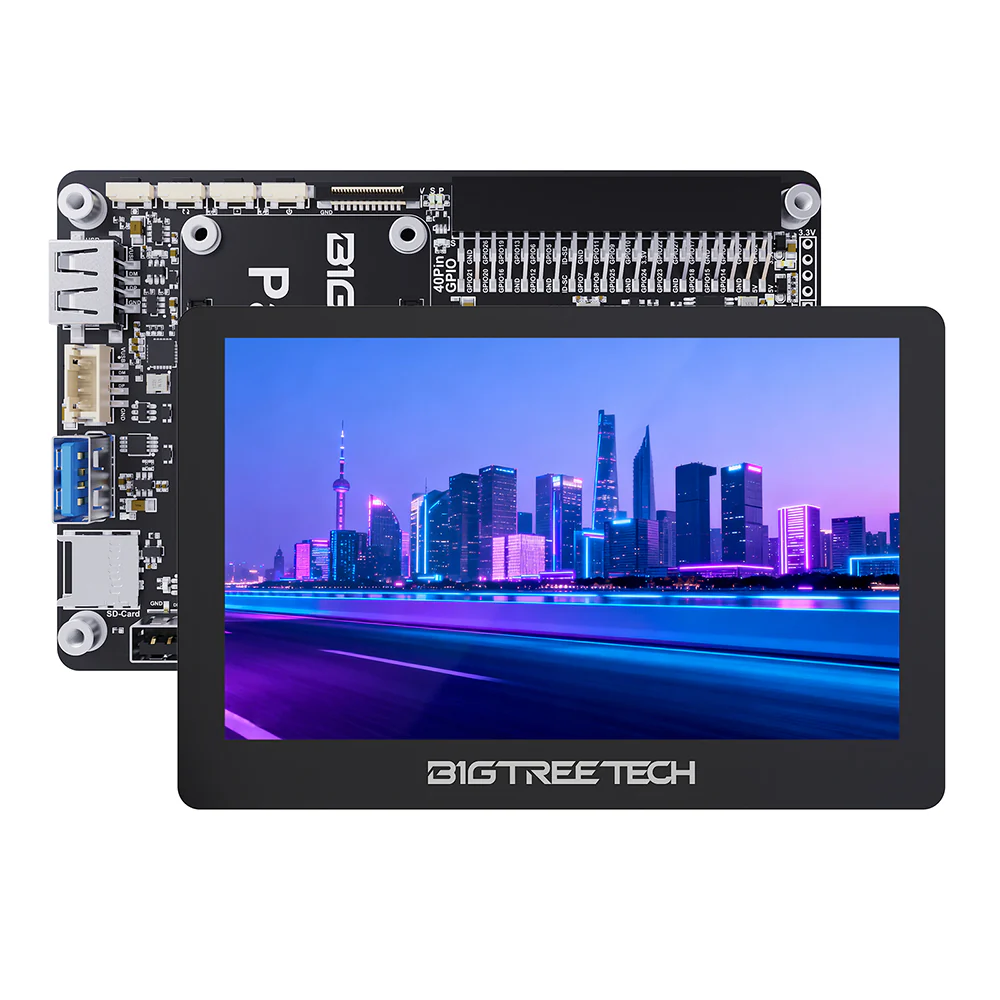

BIGTREETECH PAD5 V2.0

BIGTREETECH PAD5 V2.0

111.15 AUD

Specifications

  • 5" IPS capacitive touchscreen, 800 × 480.
  • Takes a compute module: Raspberry Pi CM5 or CM4, or BTT CB1 / CB2. The PAD5 is screen and host in one, so Klipper runs on it directly.
  • Ports: 2 × USB 3.0, 3 × USB 2.0, Gigabit Ethernet, USB-C OTG, micro-HDMI, 40-pin GPIO, MIPI DSI and CSI (camera), 4-pin fan, RTC, reserved CAN header.
  • Power: USB-C PD, 5 V 5 A.
  • With a CM5, the USB 3.0 ports and one-button power on/off work.

The BIGTREETECH PAD5 V2.0 is a powerful smart touchscreen designed for Klipper-based 3D printers. It offers a modern, responsive interface that greatly improves the user experience compared to traditional displays.

Key Features:

  • 5-inch high-definition color touchscreen with smooth and intuitive UI
  • Powerful processor for fast response and fluid operation
  • Full Klipper compatibility with support for advanced features and macros
  • Easy plug-and-play installation on most Klipper setups
  • Real-time printer monitoring, file management, and control
  • Sleek design that enhances the look of your 3D printer setup
  • Supports popular firmware and custom themes

Whether you're running a Voron, RatRig, or any custom Klipper printer, the PAD5 V2.0 delivers a premium touchscreen experience that makes controlling and monitoring your prints much more convenient and enjoyable.

BIGTREETECH PAD5 V2.0 – picture 1

1040000085
