Description

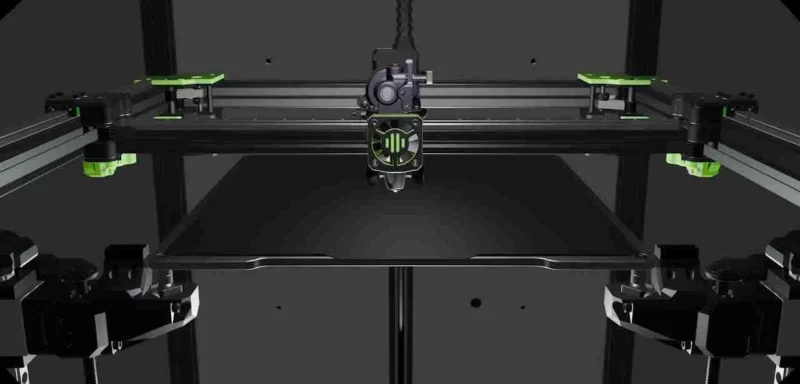

PROGRESSIVE UPGRADE PATH
EASILY UPGRADE STANDARD INTO HYBRID AND THEN HYBRID INTO IDEX – CONVERSION BETWEEN MODES IS JUST A MATTER OF ADDING A FEW PARTS. NO REBUILD IS NECESSARY.

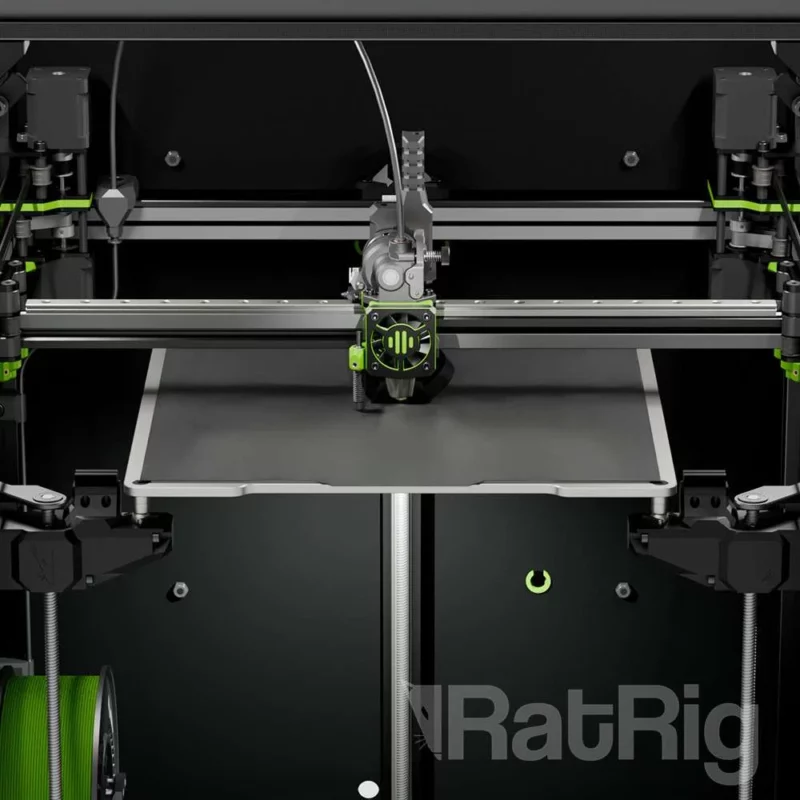

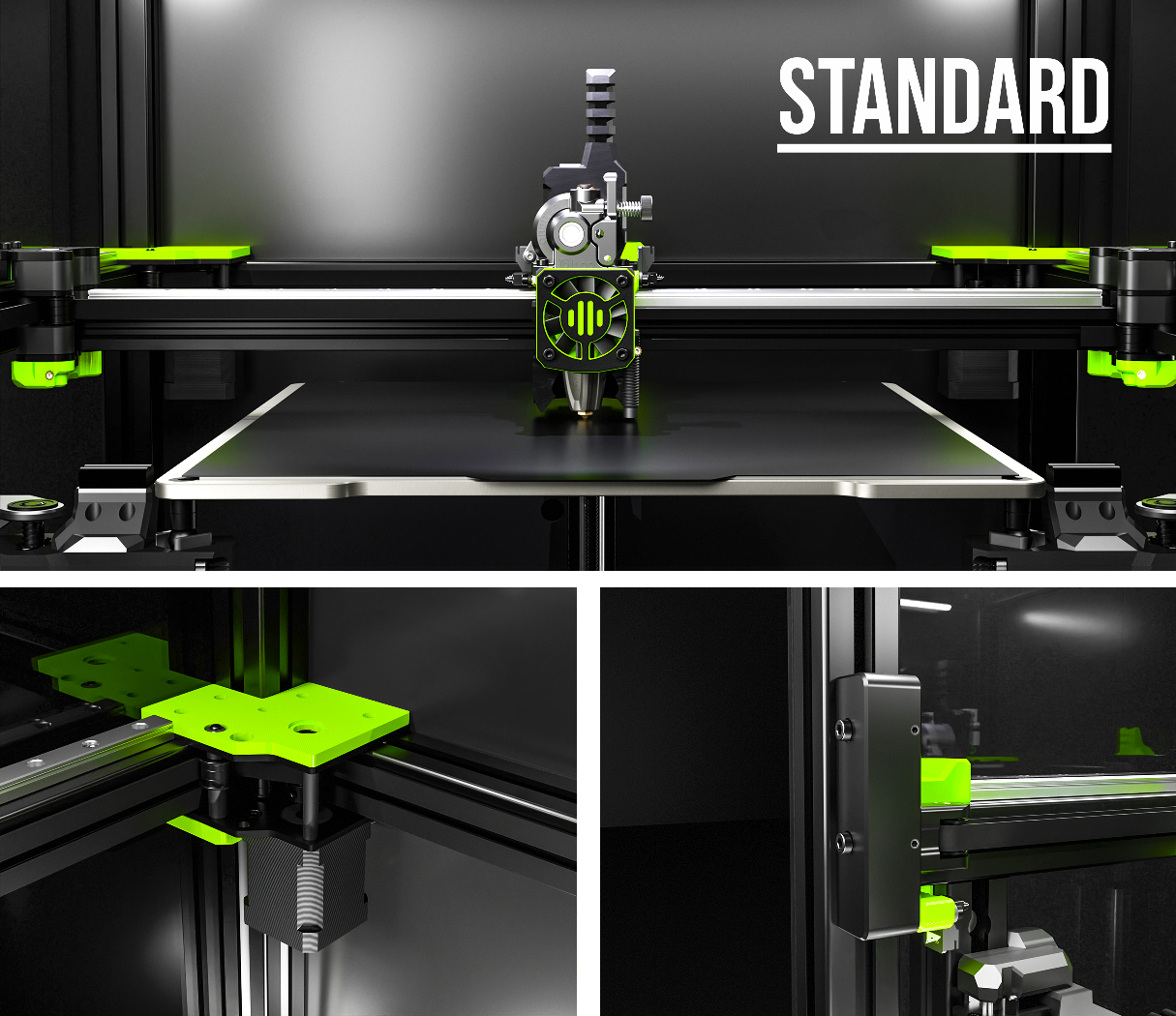

SINGLE TOOLHEAD & COREXY KINEMATICS

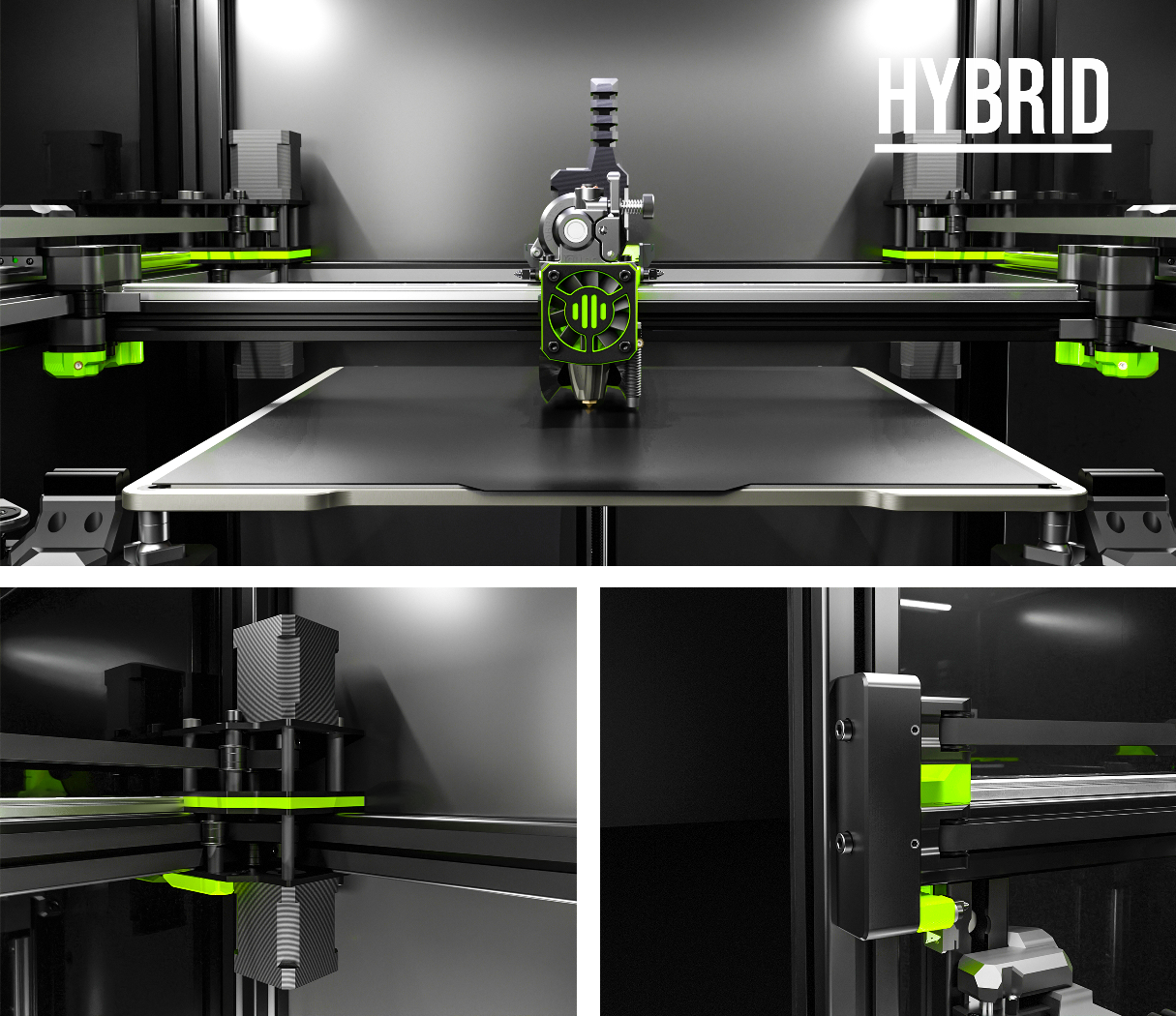

SINGLE TOOLHEAD, HYBRID COREXY KINEMATICS (2 EXTRA MOTORS FOR Y AXIS)

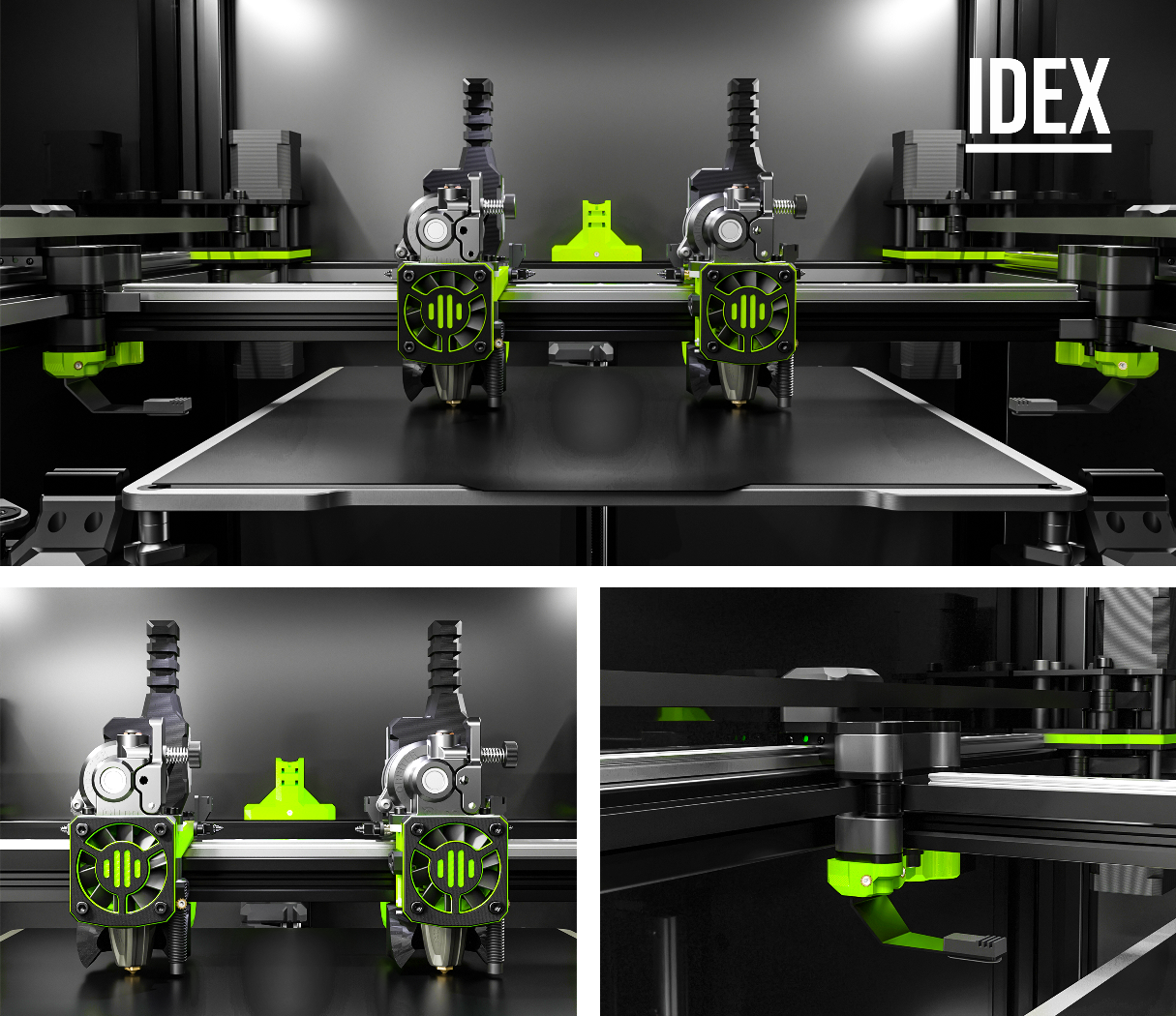

2 INDEPENDENT TOOLHEADS & HYBRID COREXY IDEX

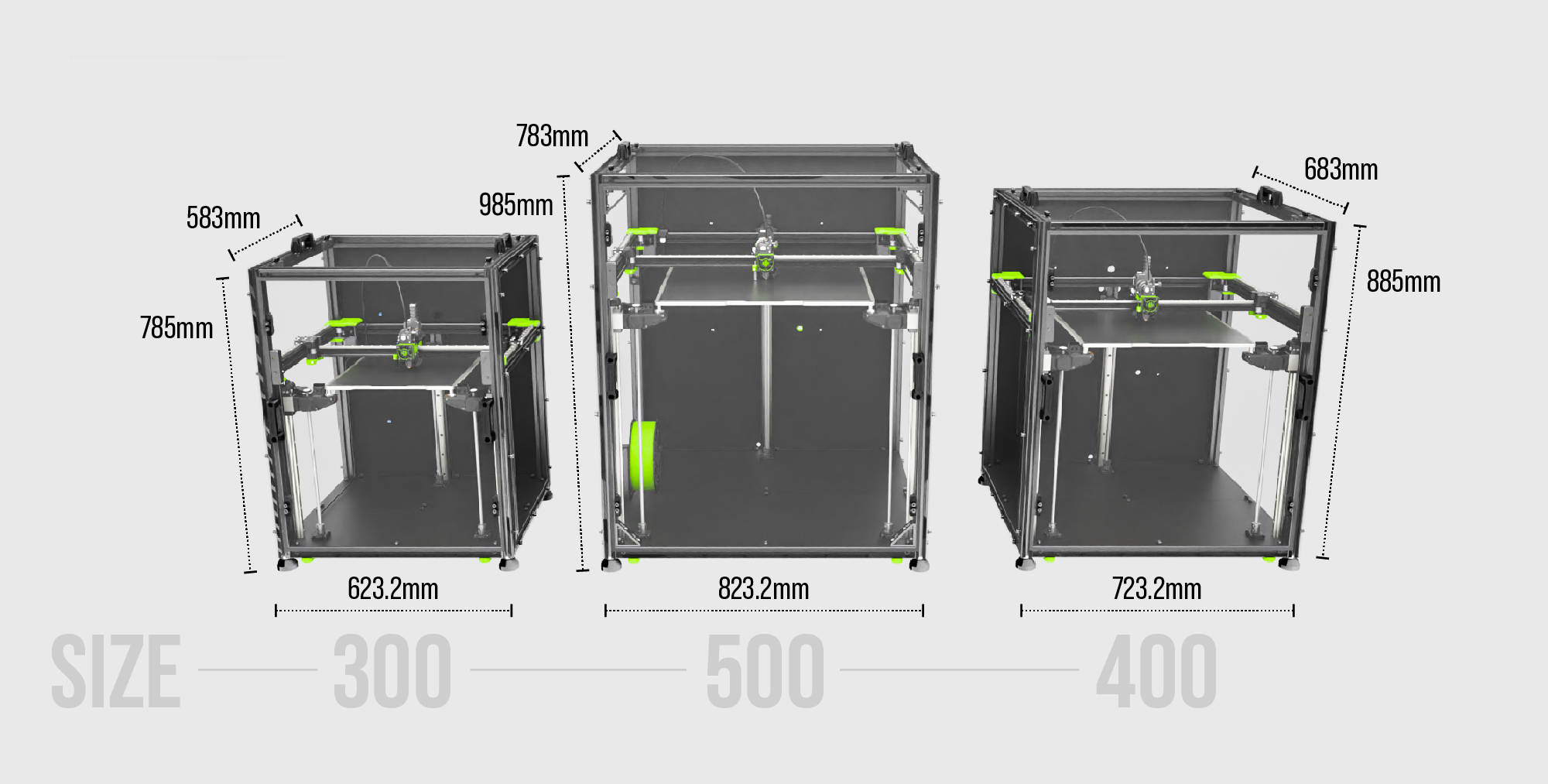

UNIVERSAL FRAME

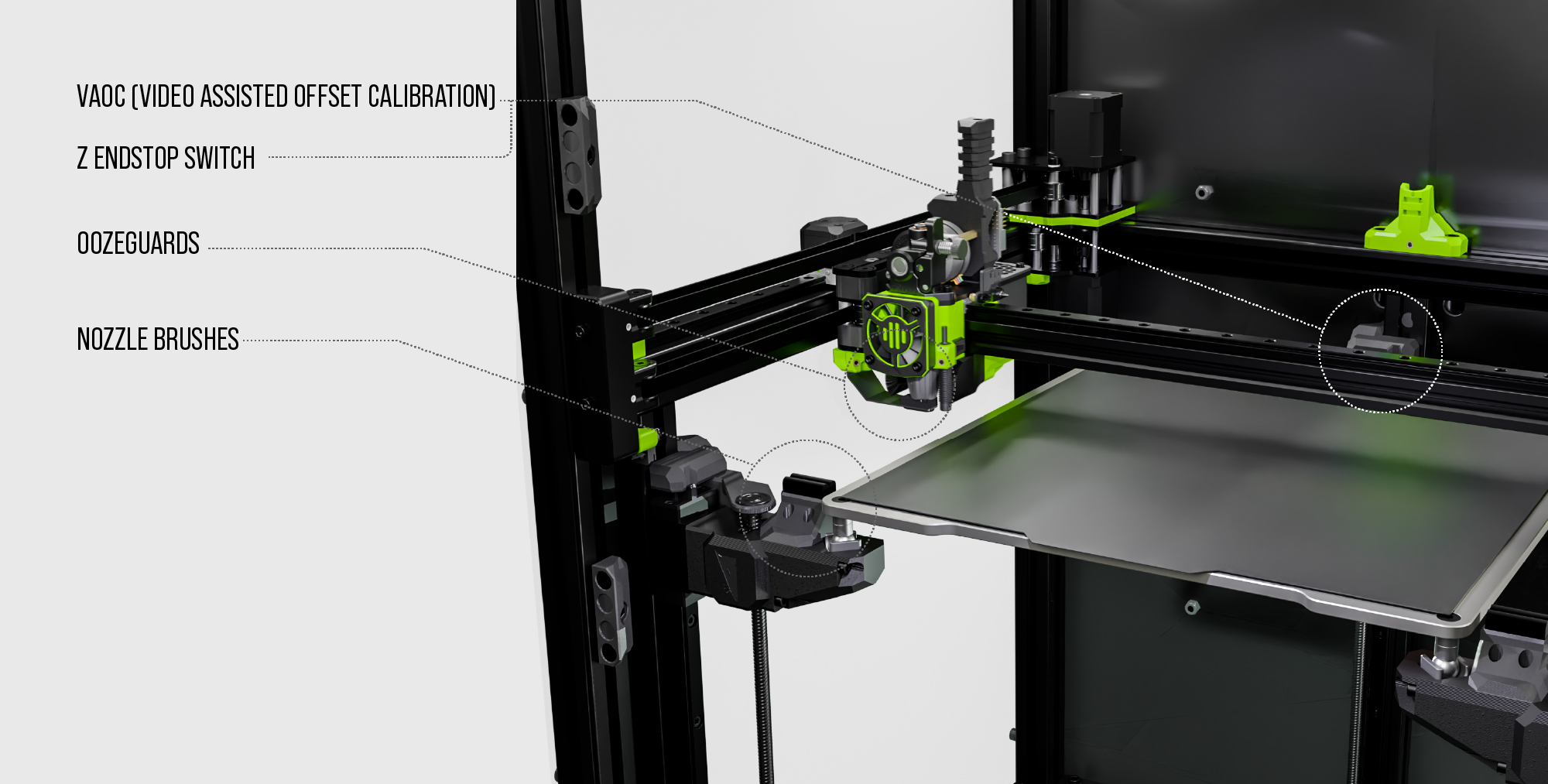

DROP-IN IDEX FEATURES:

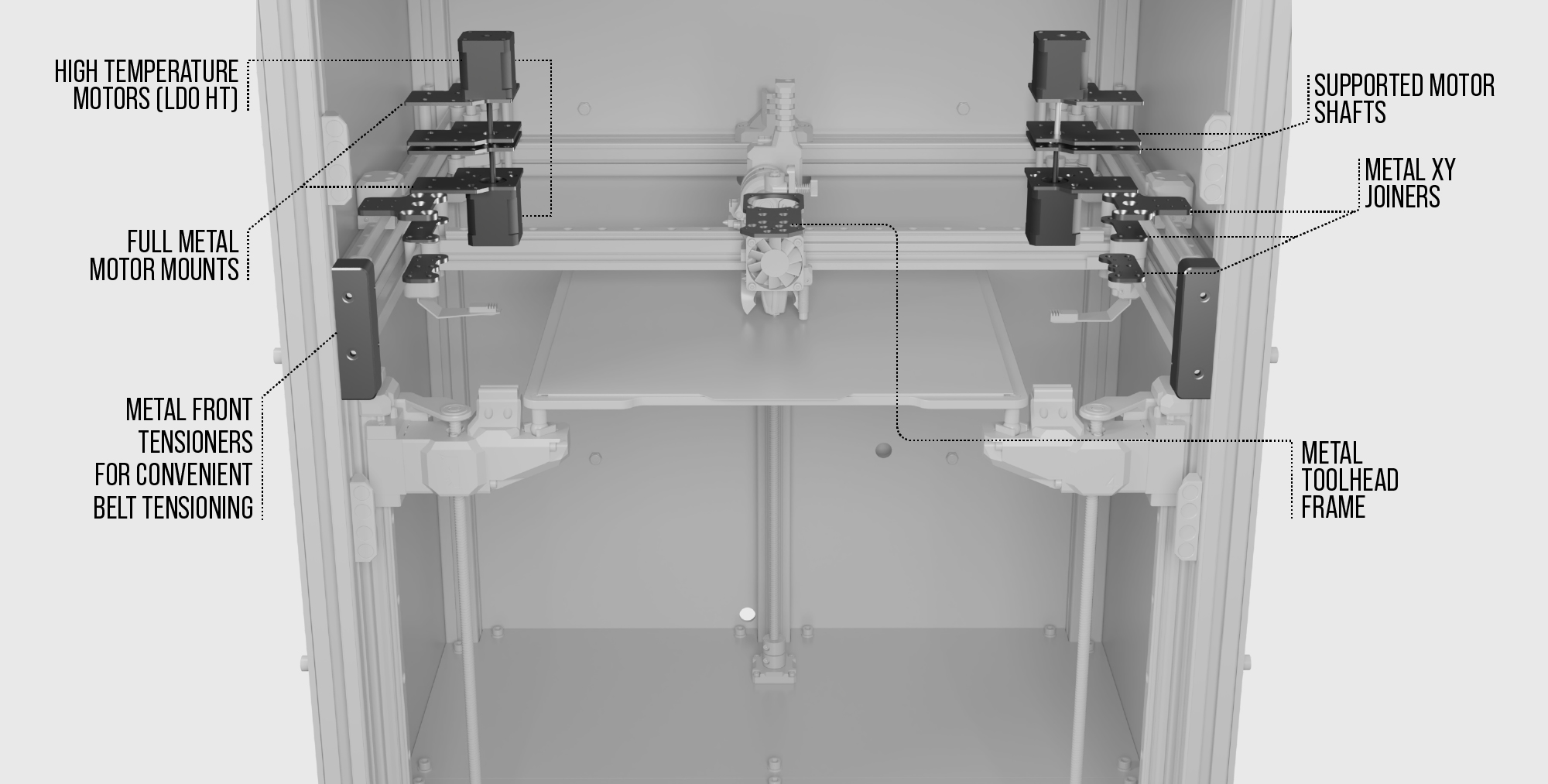

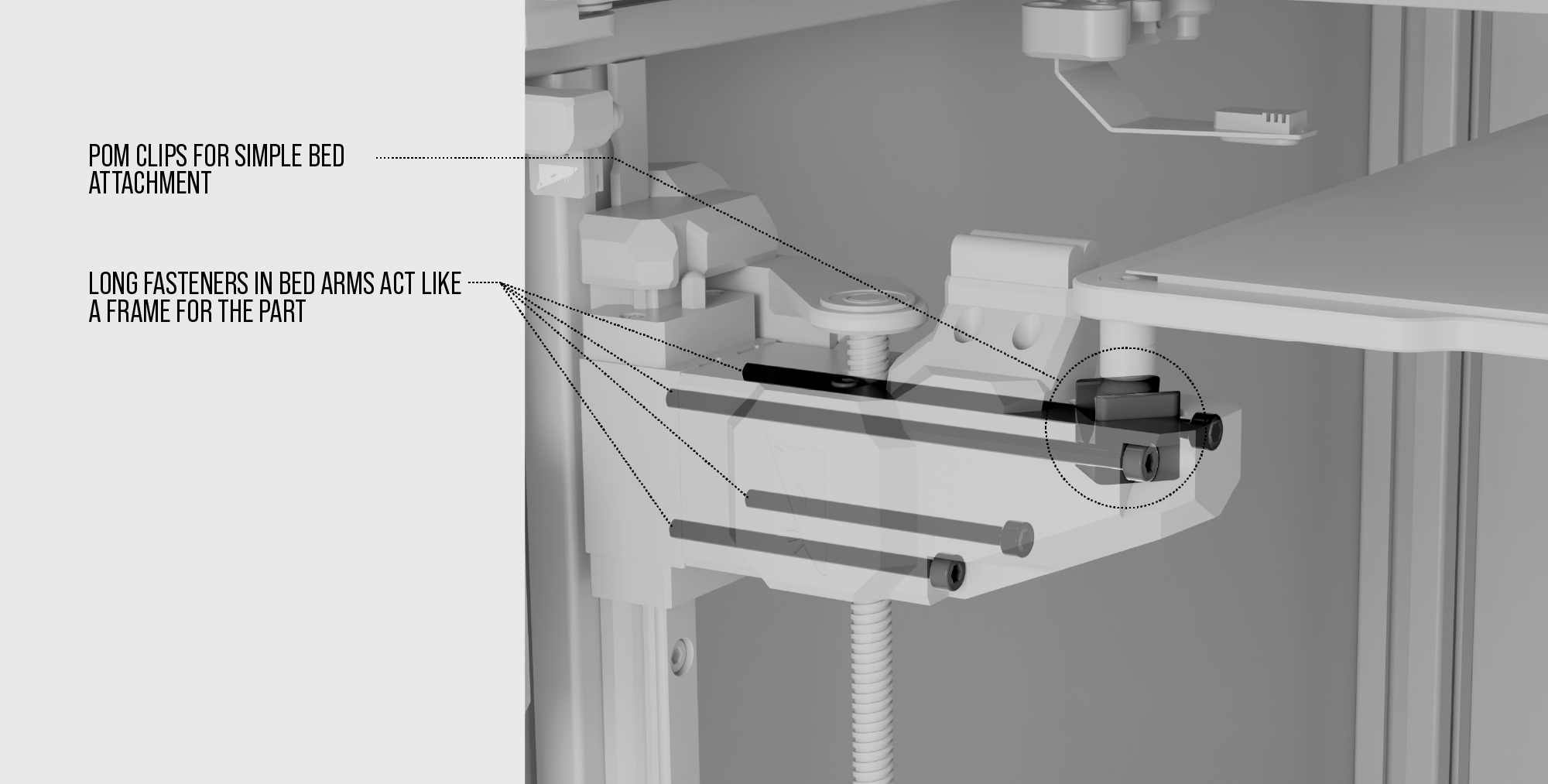

HEAVY ON THE METAL
FULL METAL MOTION SYSTEM

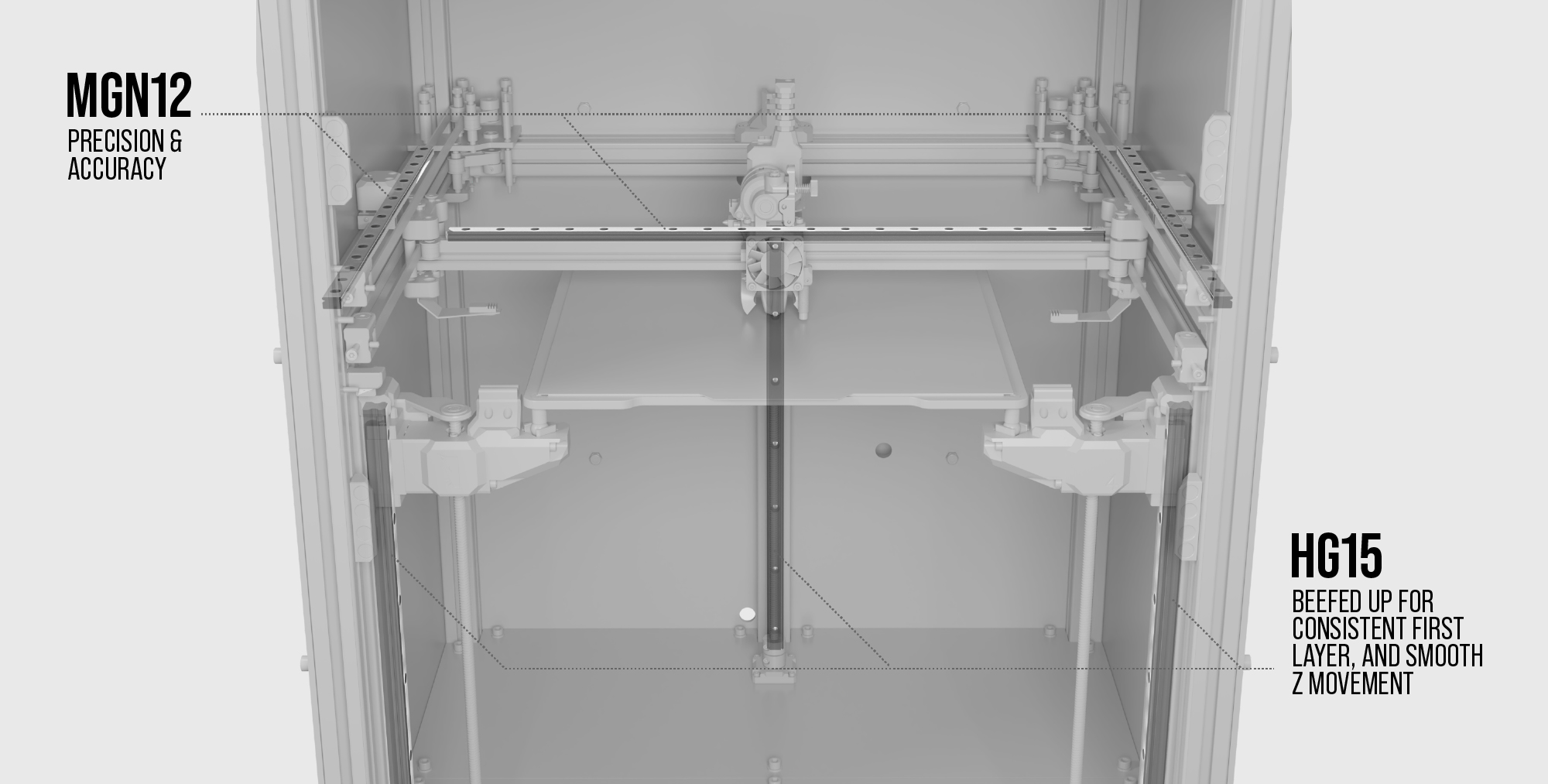

HIGH GRADE STEEL LINEAR RAILS ON EVERY AXIS

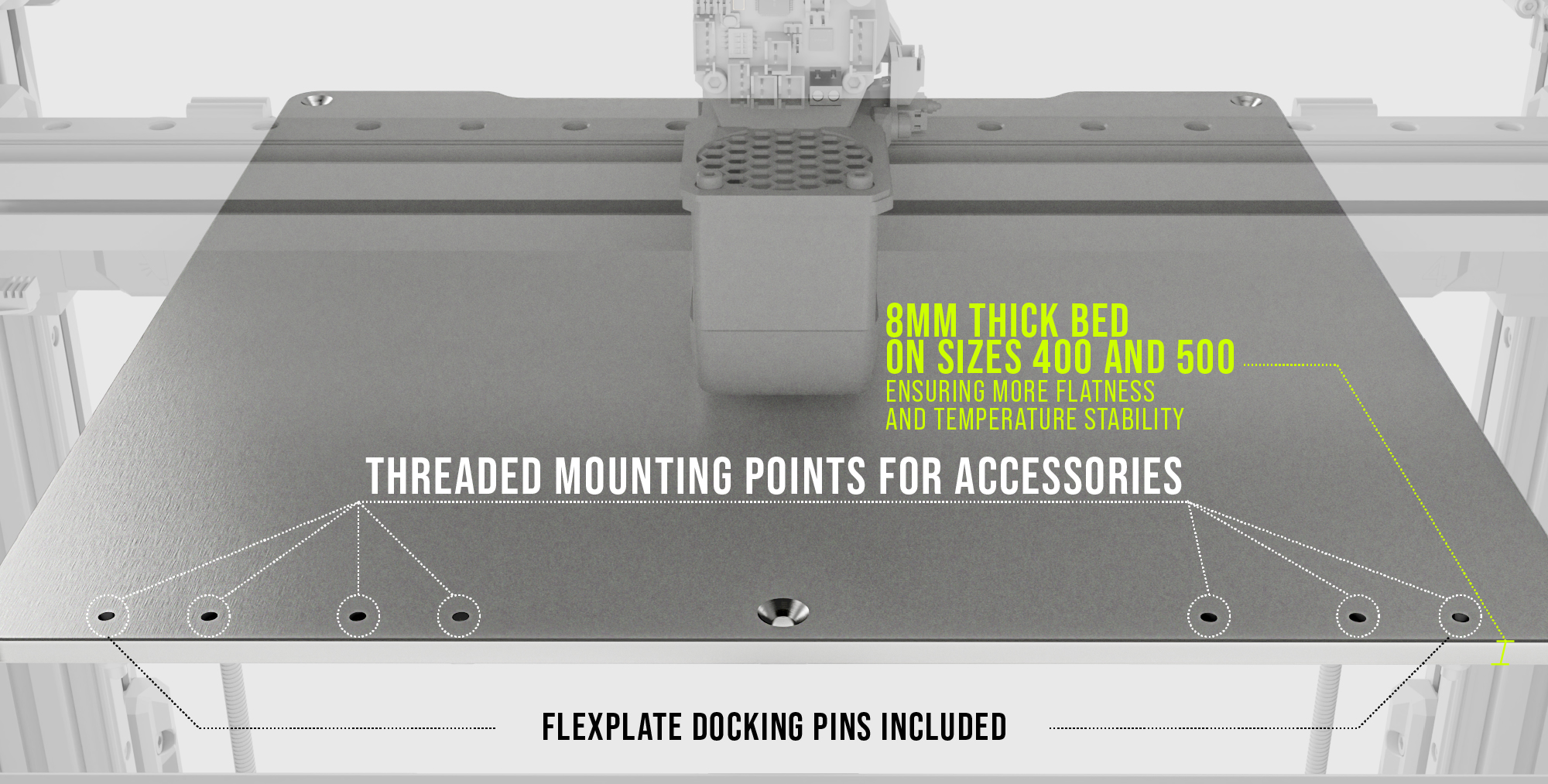

NEW 8MM THICK BEDS ON 400 AND 500 SIZES

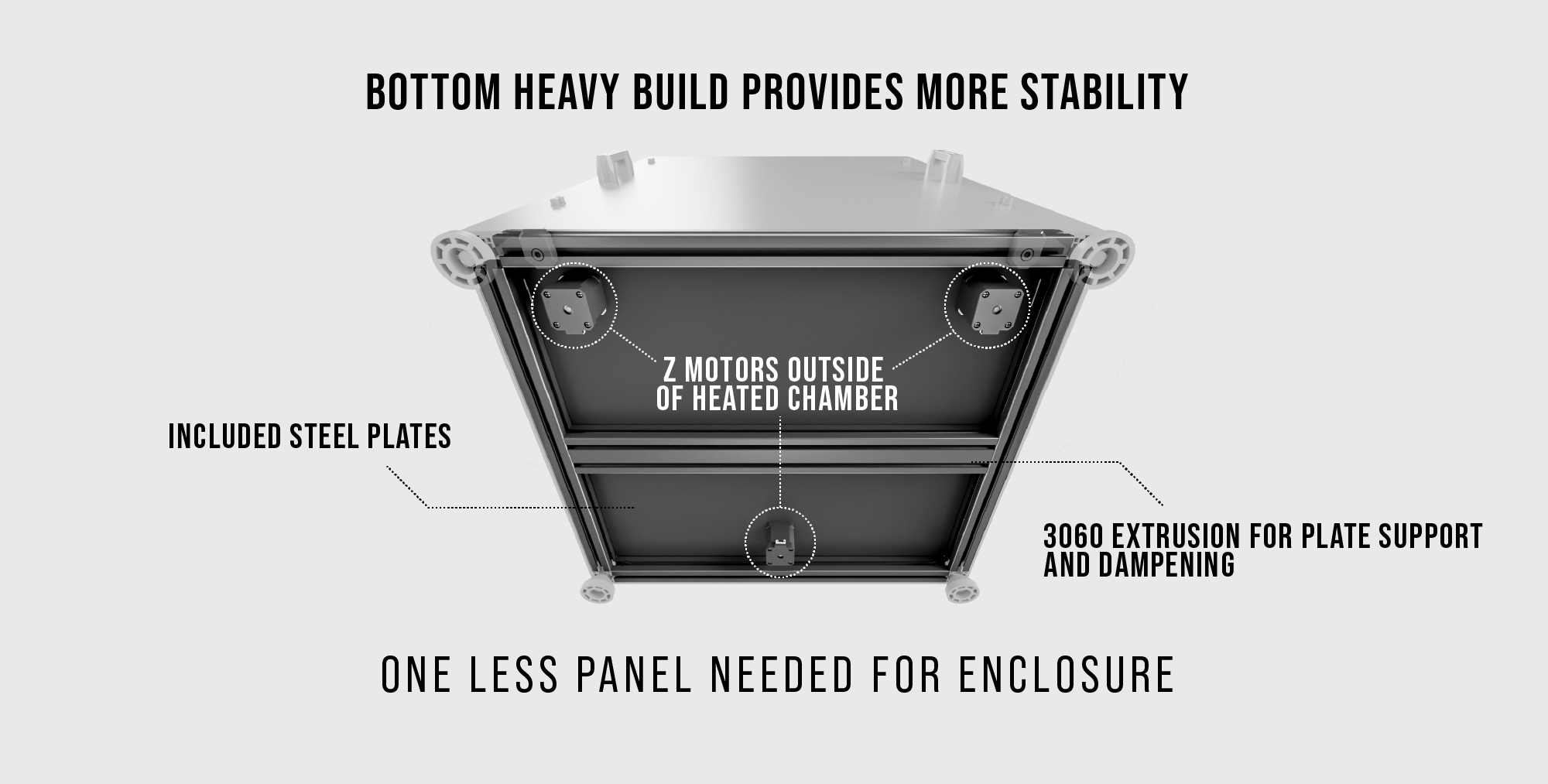

INCLUDED STEEL BASE PLATE
ELECTRONICS

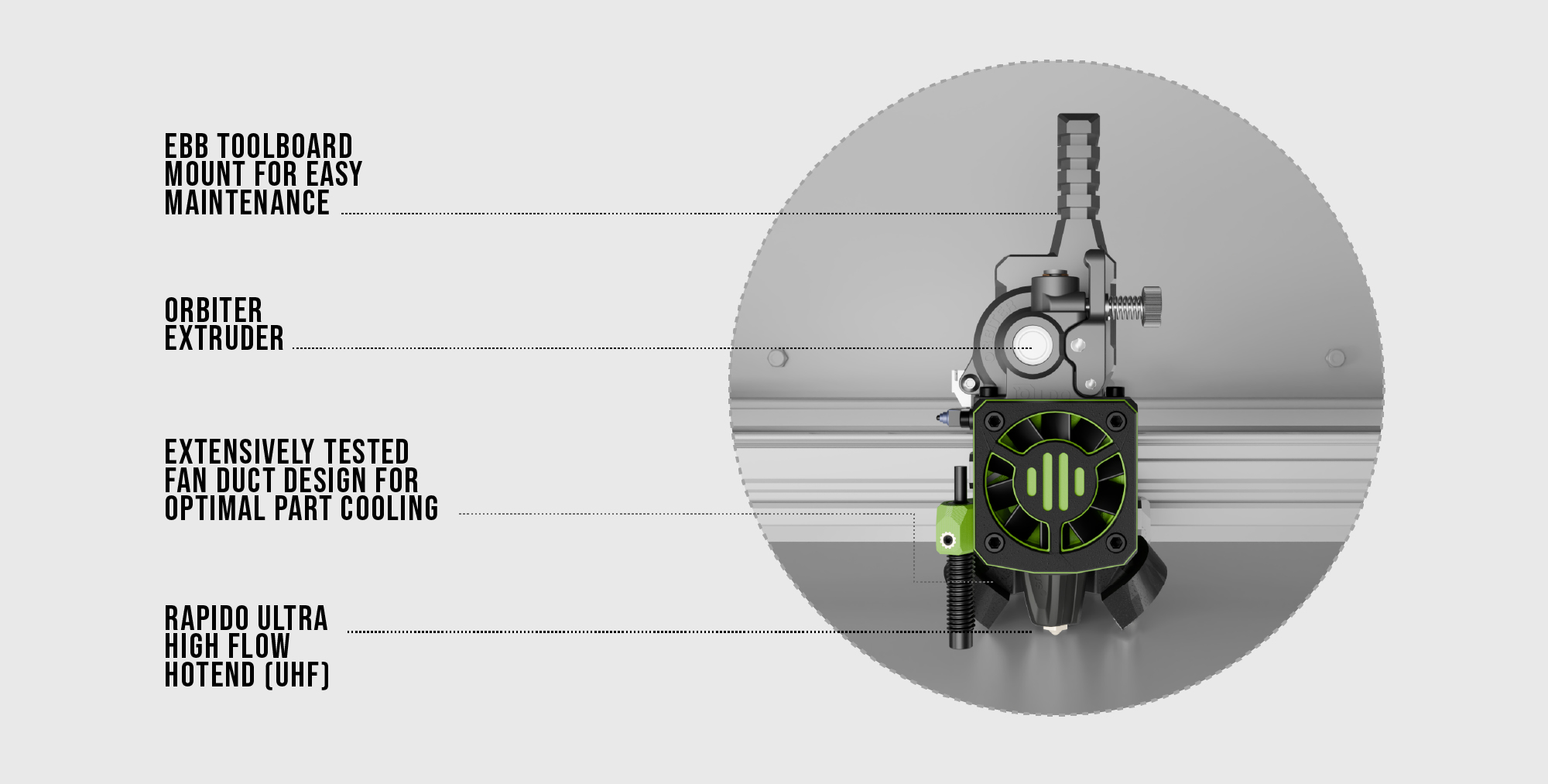

V-CORE 4 TOOLHEAD
SUPER LIGHT AND COMPACT, WITH A STURDY METAL FRAME THAT DELIVERS STELLAR INPUT SHAPER RESULTS

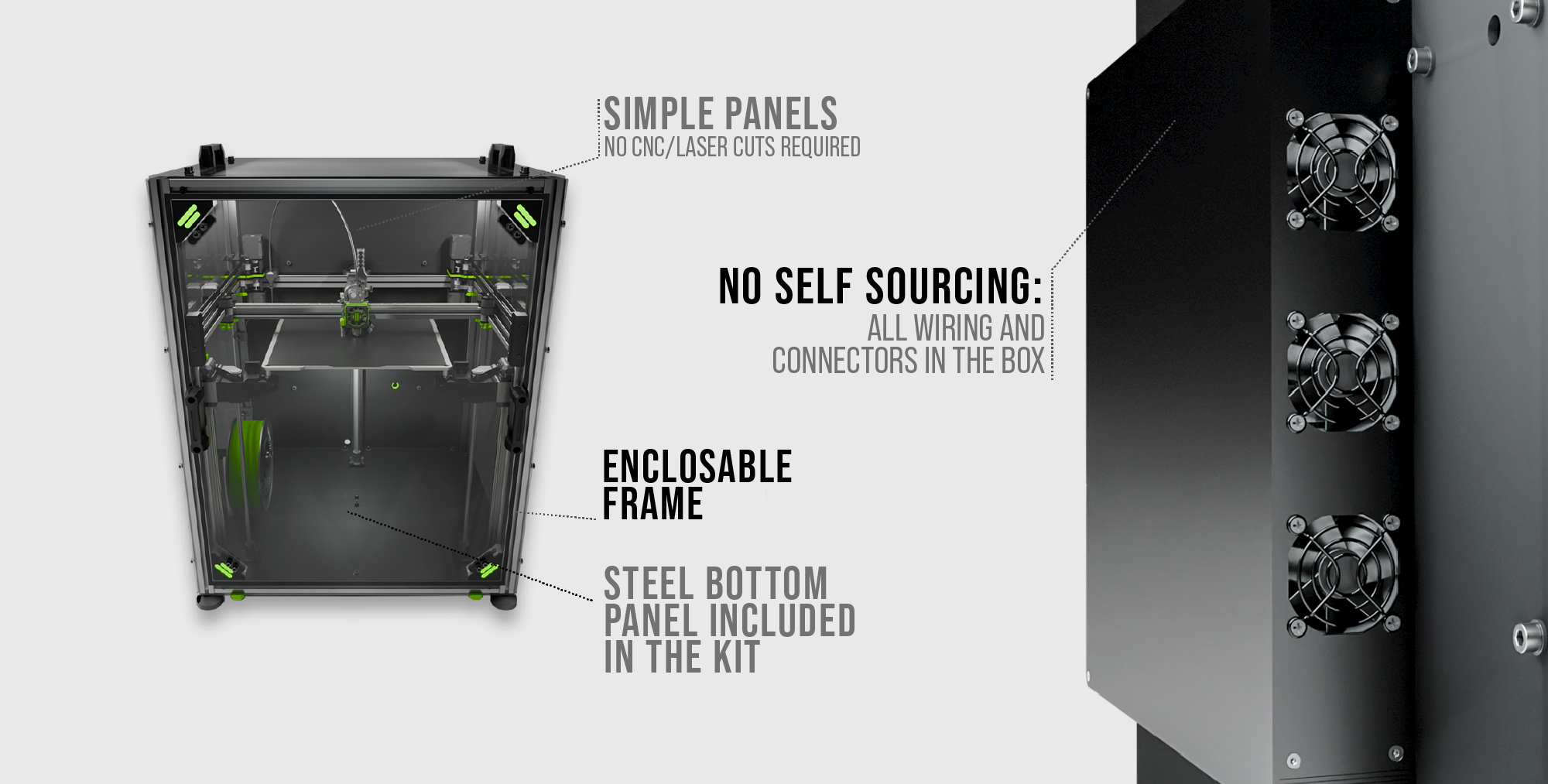

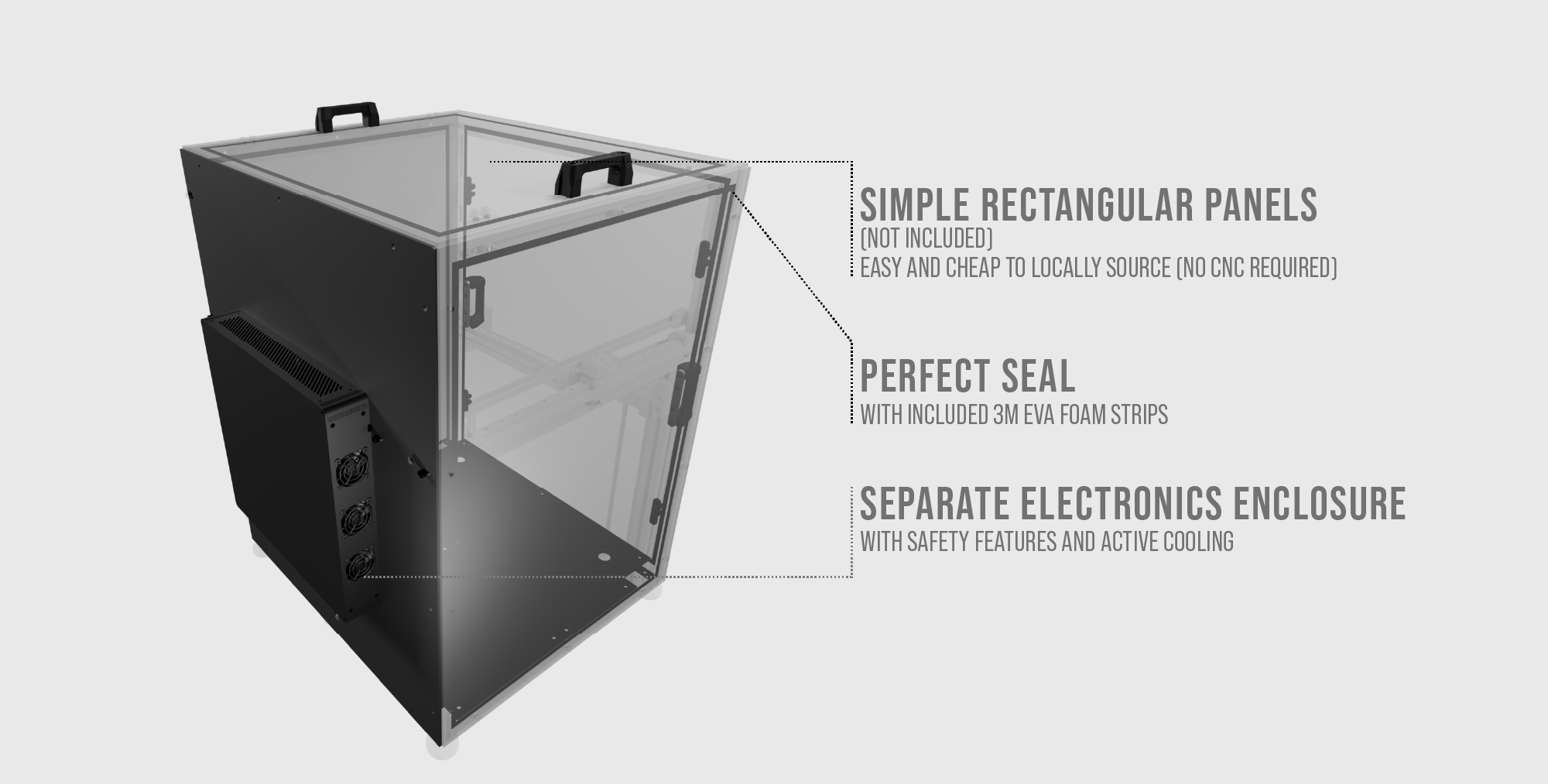

SELF-ENCLOSED DESIGN
PRICING
FULL MACHINE PRICE HAS DECREASED WHEN COMPARED TO V-CORE 3, WHEN YOU ACCOUNT FOR ALL ITEMS:
Kit BOM
- Machine Kit – Includes all the frame elements, mechanical/kinematic components and machine wiring:
1 x Rat Rig V-Core 4.0 – Machine Kit v1.03s – 300
- Complete printed parts bundle for a COREXY Hybrid machine – IDEX printed parts not included:
-
1 x Rat Rig V-Core 4.0 – Base Printed Parts Bundle (ABS – Black & Green)

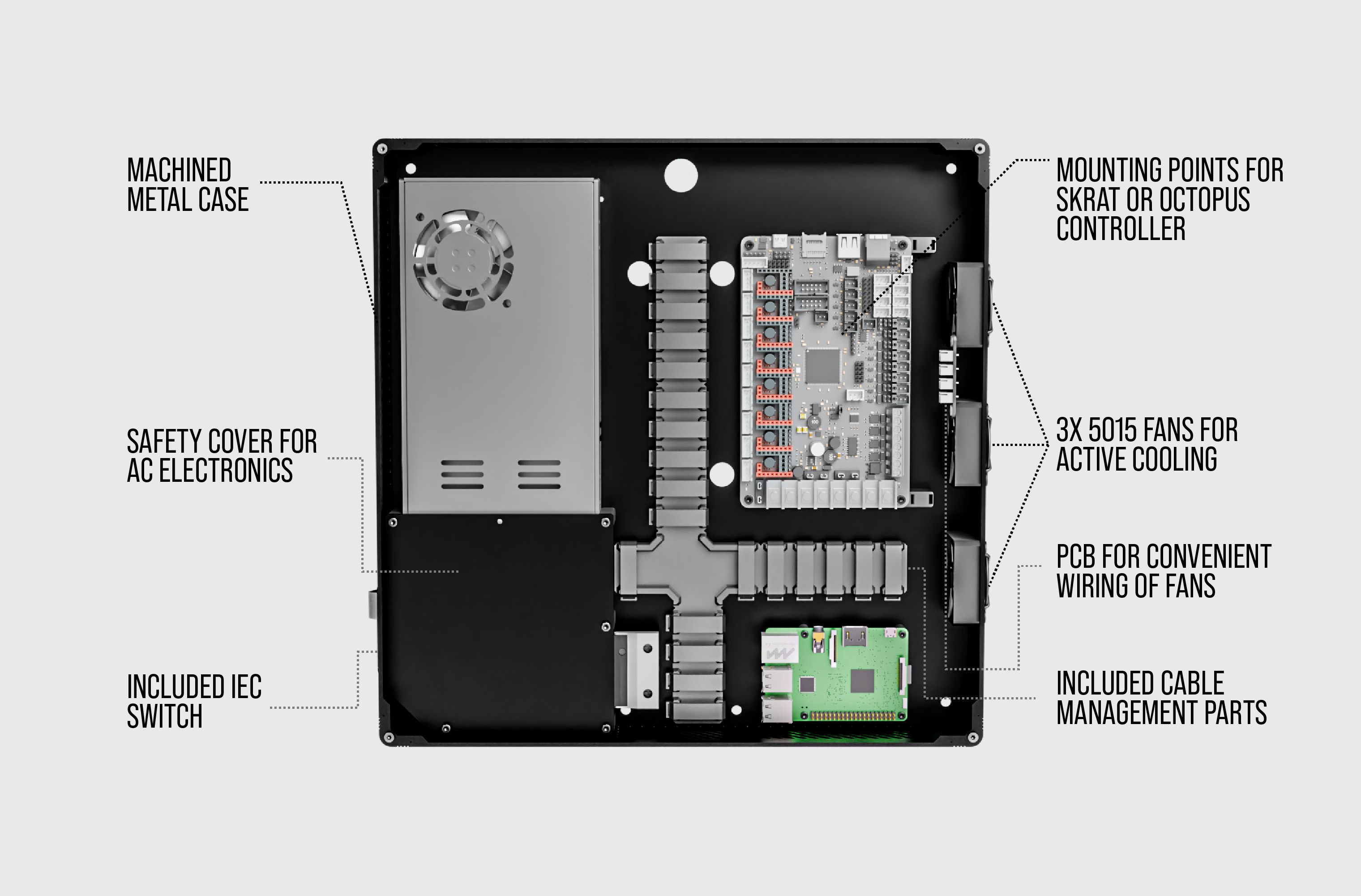

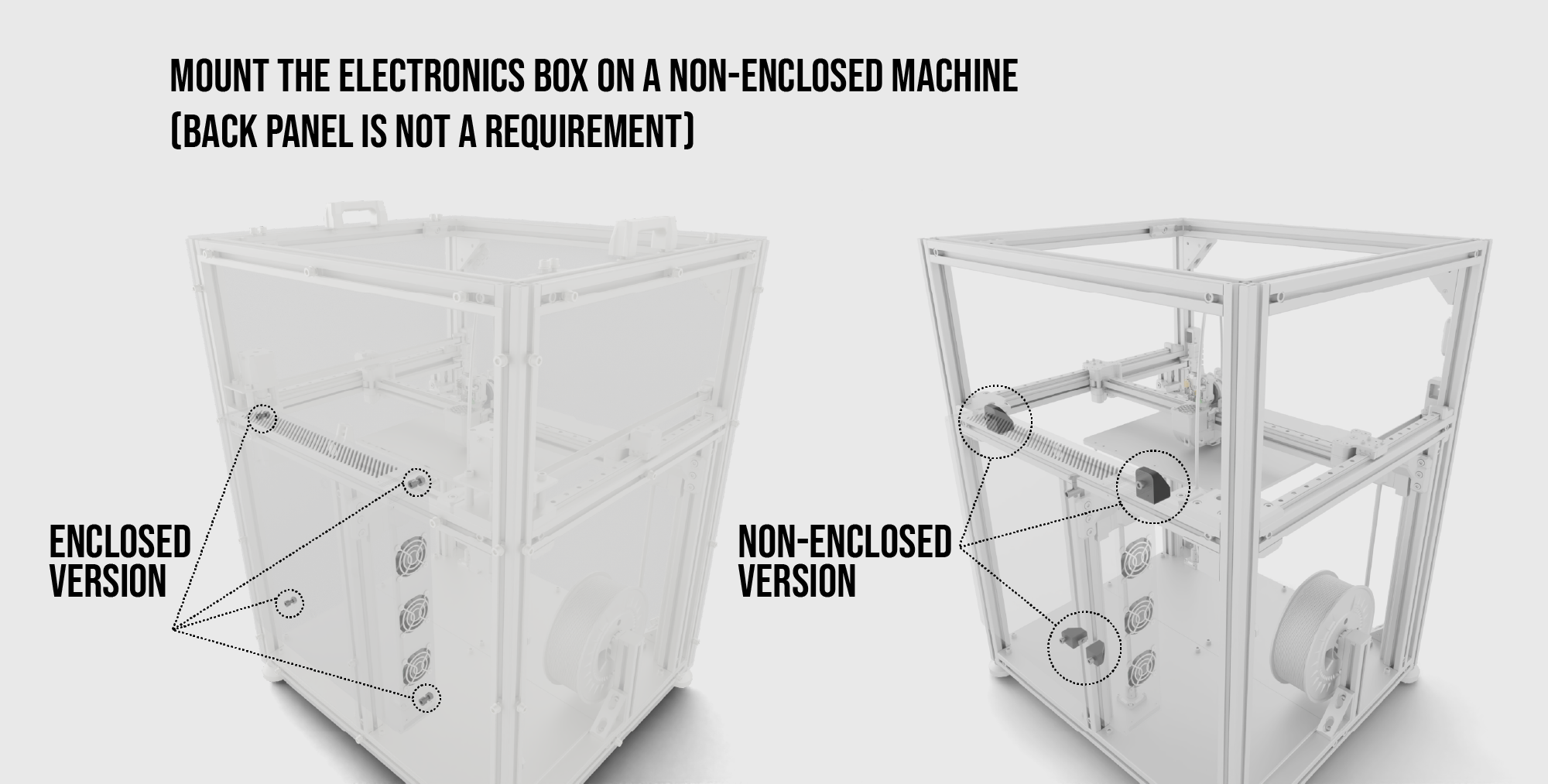

- ELECTRONICS ENCLOSURE (INCLUDES BOX, WIRING, FANS & HARDWARE):
1 x Rat Rig V-Core 4.0 – Aluminium Electronics Enclosure Kit
- Bed plate:
1 x Rat Rig V-Core 4.0 – Bed Plate – Milled cast tooling plate – 529*529*8mm
- Heater Pad (SSR Required):
1 x C-LIN SSR 40A480VAC Solid State Relay Input 3V~32VDC 40DA1 x Keenovo 280x280mm 220V 1200W Silicone Heater Bed Pad w/ NTC 100K Thermistor and Thermal Fuse
- Print surface (Includes magnetic sheet):
1 x FlexPlate PRO Set – Black Textured PEI 310 x 310 mm – Double Sided
- Electronics – Controller Setup and Wiring (RPI is required to run RatOS):
1 x BigTreeTech Octopus V1.1 Motherboard (board only – no drivers)1 x BigTreeTech EBB42 USB/CAN Toolboard v1.2 (Without Max)5 x BigTreeTech TMC2209 Driver1 x RASPBERRY PI 4 Model B 1.5GHz – WiFi 2.4/5GHz + Bluetooth 5.0 + PoE – 2GB2 x Rat Rig DaySpring LED Light Strip PCB – 310mm – 24V – By Vector3D
- Electronics – Sensors:

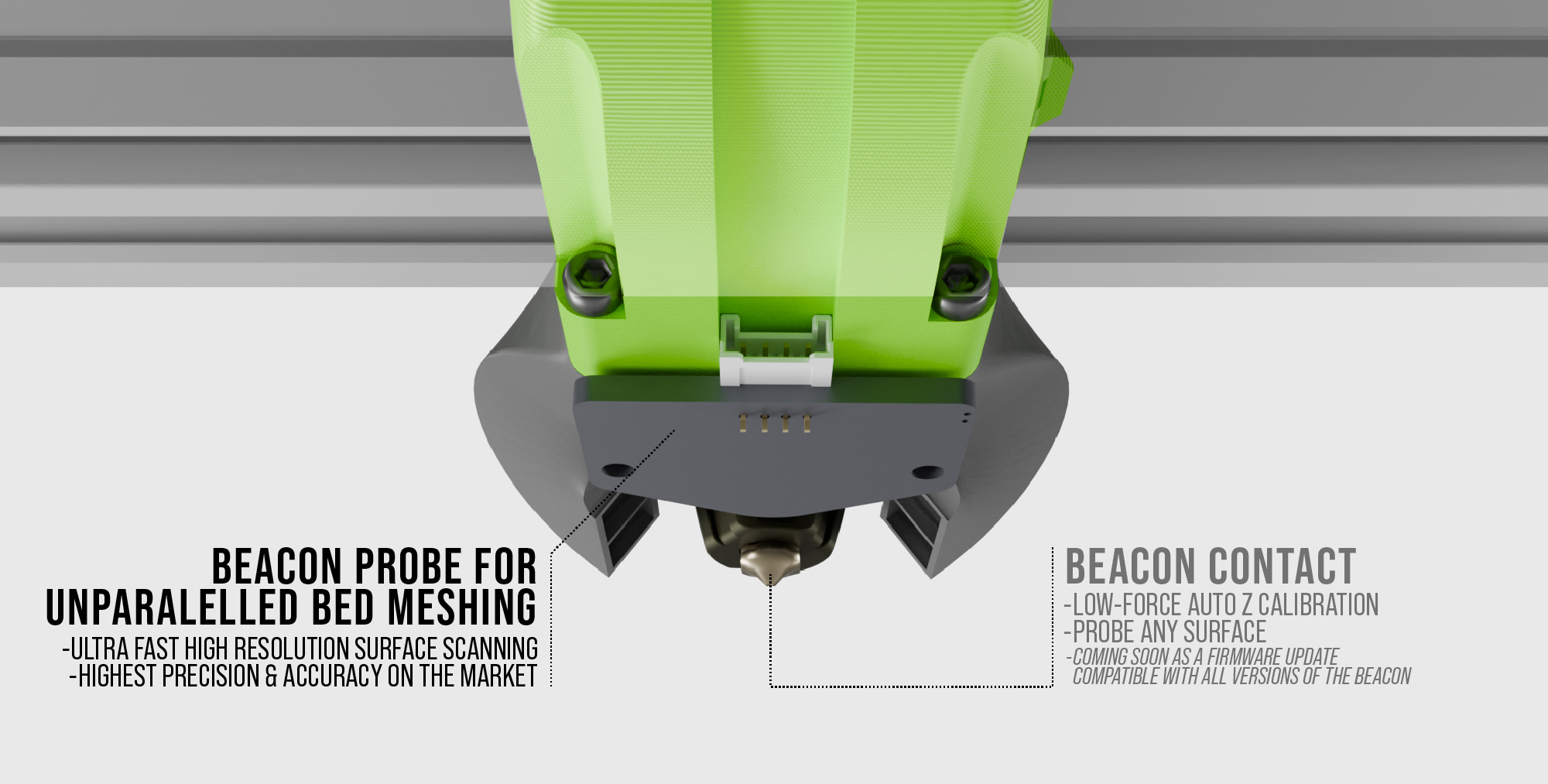

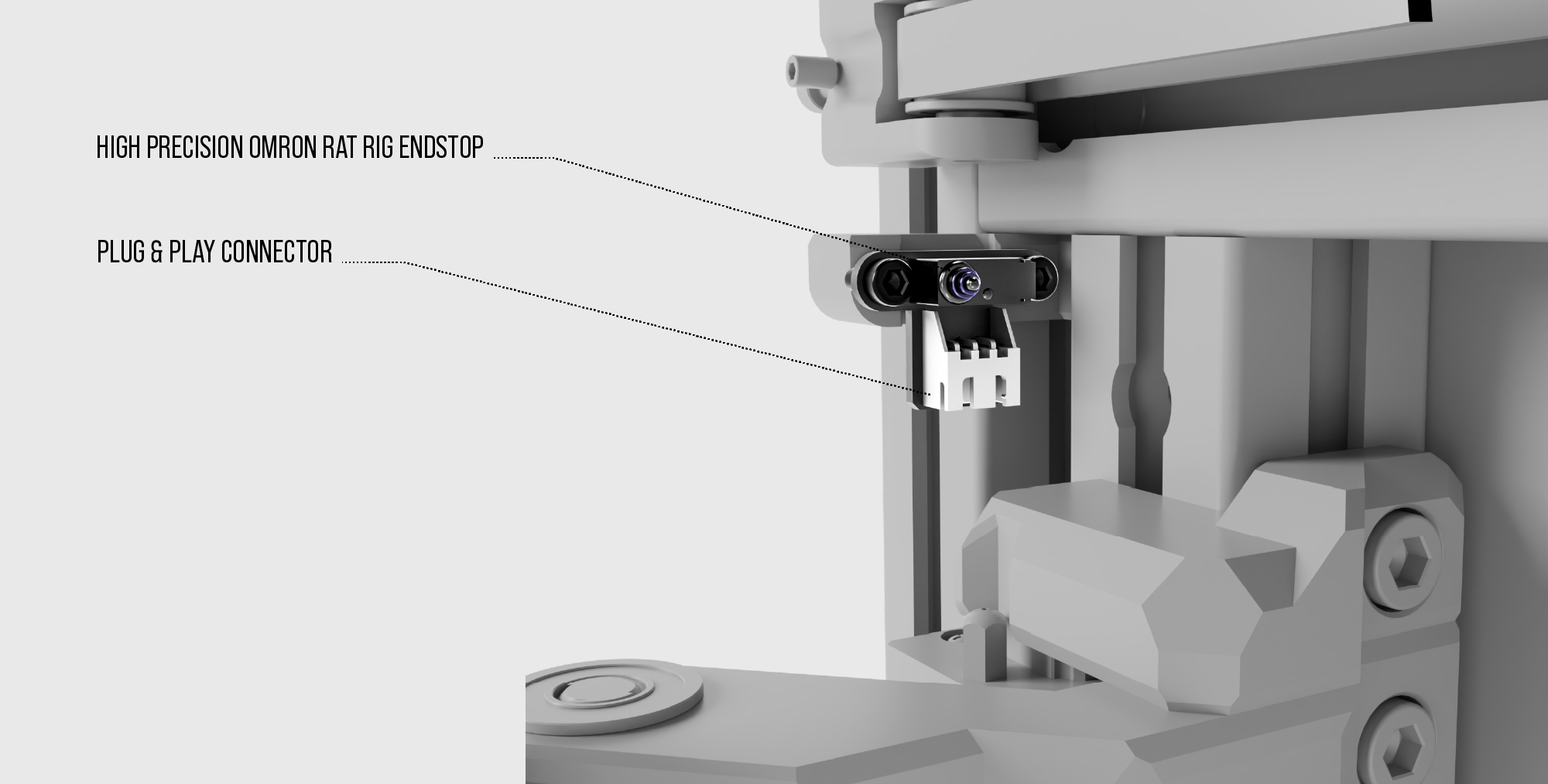

2 x Rat Rig Endstop v1.1 – Omron – NC1 x Beacon Sensor Rev H – by Beacon3D (Klipper only – USB Cable Included)
- Electronics – Toolhead:
1 x Phaetus Rapido 2.0 Plus UHF Hotend – Black – 2000mm Cable1 x LDO Orbiter V2.0 Extruder1 x LDO Orbiter 2 Smart Sensor1 x Fan – 4010mm Axial Brushless 24V DC – 140mm Cable – GDSTime (Double Ball Bearing)1 x Fan – 4028 Axial – NIDEC W40S12BS2E5-57T04HF9 (12V 1.61A 25000RPM)
- Motors (NEMA HT REQUIRED FOR XY AXIS):
3 x Nema 17 Stepper Motor – 48mm – 1.8degree/step, 76oz-in (LDO-42STH48-2504AC)2 x Nema 17 Stepper Motor – HT – 48mm – (1.8º, 76oz-in, 35mm shaft)
- Power Supply:
1 x Power Supply Weho – 250Watt 24V – Fanless
- Performance Upgrade (Required for IDEX):
1 x Rat Rig V-Core 4.0 – HYBRID Upgrade Kit (CoreXY to Hybrid)
