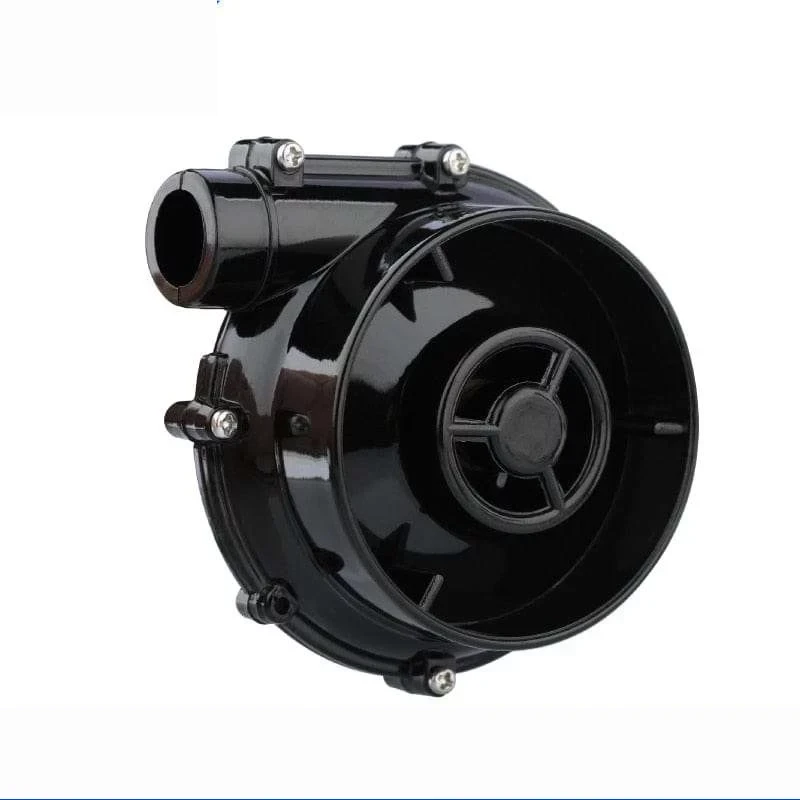

Mellow 24V Brushless Centrifugal Air Blower DC WS7040 7040 Blower Fan

This 24V Brushless Centrifugal Air Blower DC WS7040 7040 Blower Fan offers a 6.5kpa airflow for VzBoT HevORT 3D Printers.

When you want to use the potentiometer knob to control the fan speed, you only need to connect the driver board directly to the 24V DC power supply.

When you need to use the motherboard or Raspberry Pi to control, just take out the potentiometer, connect the signal pin of the driver board to the 5V or 3.3V pin of the motherboard, and connect it to GND.

Marlin:

Enable “FAN_SOFT_PWM” and set ”SOFT_PWM_SCALE”to 5

Duetboard:

https://duet3d.dozuki.com/Wiki/Connecting_and_configuring_fans

Klipper

[fan]

pin: host:gpio26

hardware_pwm: False

cycle_time: 0.005

Package:

SET WS7040 Blower Fan (Including driver board)

SPECIFICATIONS

Voltage: DC24V

Speed: 37000RPM+- 7%

Size: 70*71*22.4mm

Origin: Mainland China

Model Number: 10WS7040

Item Type: Fan

Current: 2.7A

Brand Name: Mellow

Air Pressure: 6.5kpa

24V Model: WS7040
