Kraken Motors – High Torque Stepper Motors – By Devil Design

This product is currently out of stock and unavailable.

Kraken Motors – High Tor...

This product is currently out of stock and unavailable.

Read more

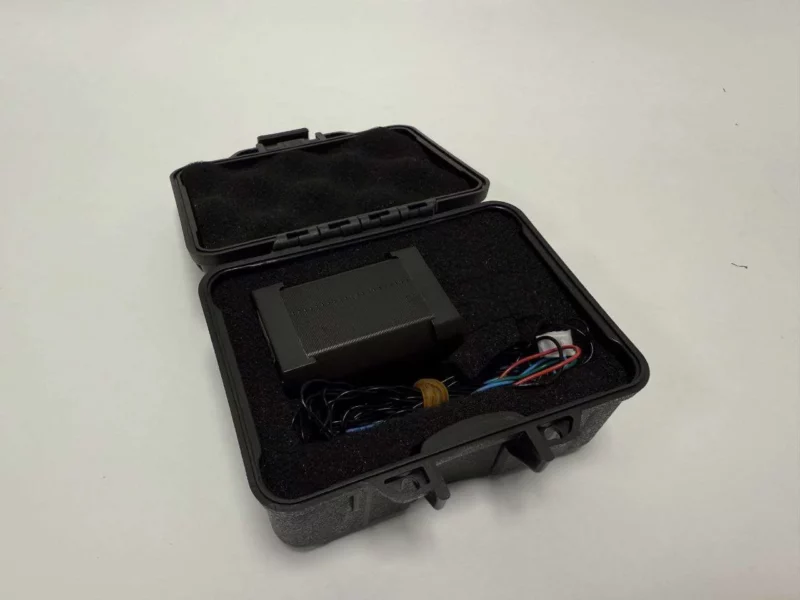

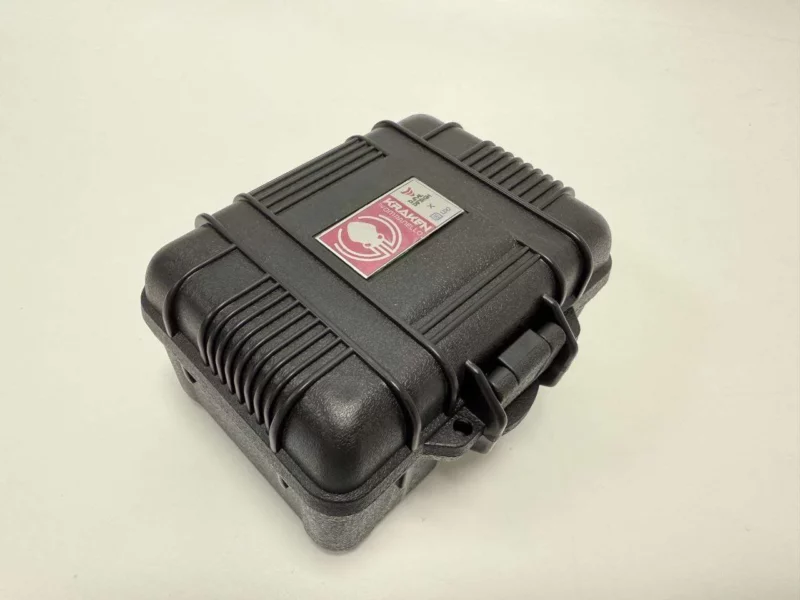

Kraken by Omranello is a powerhouse stepper motor developed in collaboration with LDO. This monstrous motor delivers way more torque than you need, capable of handling up to 3 amps and 60 volts. Equipped with an internal PT1000 thermistor and a Powge 30T gear, the Kraken is encased in a durable hard case to ensure maximum protection and reduce cardboard waste.

The Kraken [LDO 3004] represents a significant leap forward in motor technology and is considered one of the strongest NEMA17 motors on the market today. Perfect for 3D printers, CNC machines, and industrial applications, this motor is designed for those who demand unmatched performance and reliability.

Unleash the Beast with the Kraken by Omranello.

For more information, visit Github: Kraken-Stepper

Specifications
NEMA 17 – 1.8° Step AngleNEMA 17 – 0.9° Step Angle
Serial: LDO-42STH60-3004AC(S40)
Type: NEMA 17 – 1.8° Step Angle
200 Steps Per Revolution
Current (MAX): 3.0 Amps
Voltage (MAX): 60 V
Holding Torque: 9.0 kg/cm
Output Shaft: 40mm length, 5mm diameter
gear: 30T 2GT from POWGE
Wire: 1 meter with 4-pin JST-XH connector (+2 white wires PT100 Thermistor)
Serial: LDO-42STH60-3004MAC(S40)
Type: NEMA 17 – 0.9° Step Angle
400 Steps Per Revolution
Current (MAX): 3.0 Amps
Voltage (MAX): 60 V
Holding Torque: 8.0 kg/cm
Output Shaft: 40mm length, 5mm diameter
Gear: 30T 2GT from POWGE
Wire: 1 meter with 4 pin JST-XH connector (+2 white wires PT100 Thermistor)

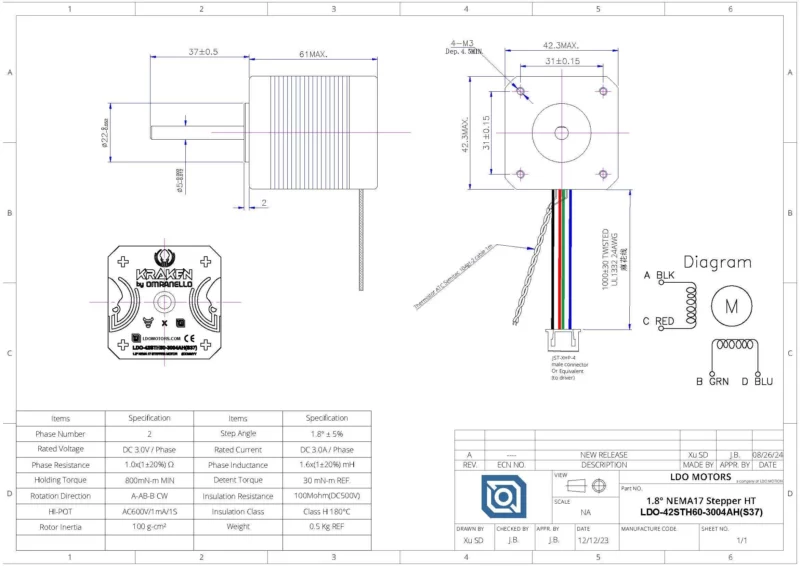

Datasheet: NEMA 17 – 1.8° Step Angle

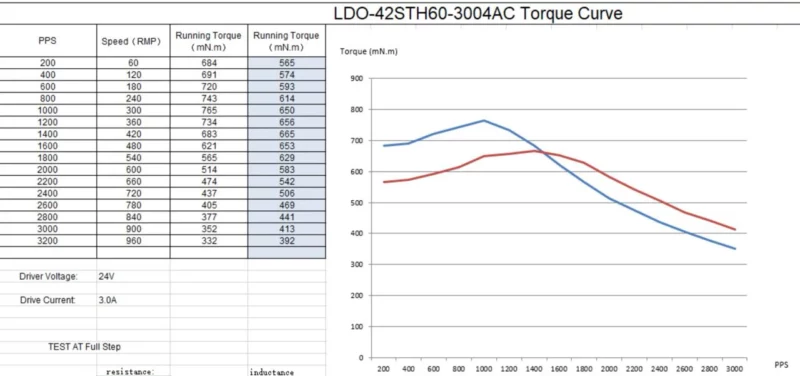

Torque curve:

Data sheet: NEMA 17 – 0.9° Step Angle

Torque curve:
