K Hub V1.0 4-Port USB 2.0 Hub

K Hub V1.0 4-Port USB 2.0 Hub

45.00 AUD

Specifications

  • 1 × USB-C upstream to your Klipper host; 4 × USB-A downstream.

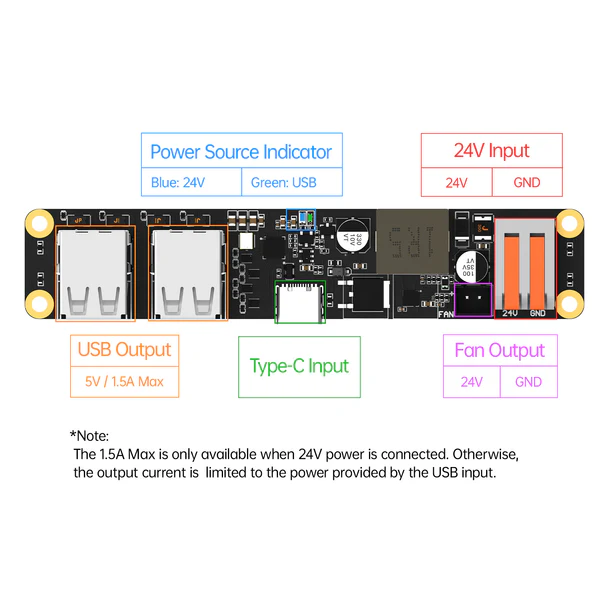

  • Power: 24 V 3 A on the lever terminal, or 5 V 2 A on USB-C. On 24 V each port gives up to 1.5 A, enough for a camera, Pad5, EBB toolboard or KlipperScreen at once. On USB-C power only, the ports share what the host supplies.
  • Protection: per-port fuse, ESD, over-current, reverse-polarity and short-circuit.
  • Cooling: 3010 fan, heatsink, ENIG gold-finish board.

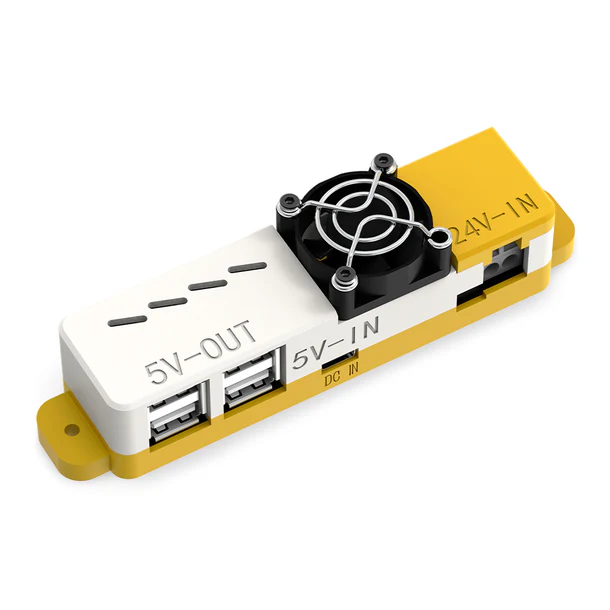

  • Mounting: on the side of a 2020 extrusion or on a DIN rail (bracket files on BTT's GitHub).
  • In the box: K Hub, 30 cm USB-A to USB-C cable, fan, fan guard, heatsink, hammer-head nuts and screws.

The BIGTREETECH K Hub V1.0 4-Port USB 2.0 Hub is designed specifically for Klipper-powered 3D printers. It solves common USB port limitations by providing additional stable connections while supporting dual power input (24V from printer or 5V).

Key Features:

  • 4 high-speed USB 2.0 ports for easy expansion
  • 24V/5V dual power support for reliable and stable performance
  • Designed for Klipper environments – ideal for connecting multiple devices
  • Supports cameras (webcams), touchscreens, ADXL accelerometers, and other USB peripherals
  • Compact size for clean integration into printer enclosures or control boxes
  • Plug-and-play design with strong compatibility

Whether you're running a Voron, or any custom Klipper build, the K-Hub V1.0 makes it easy to connect multiple USB devices without instability or port shortages.

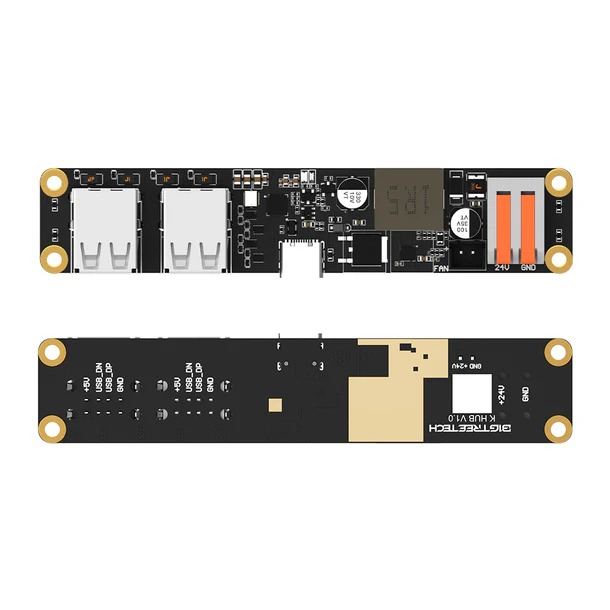

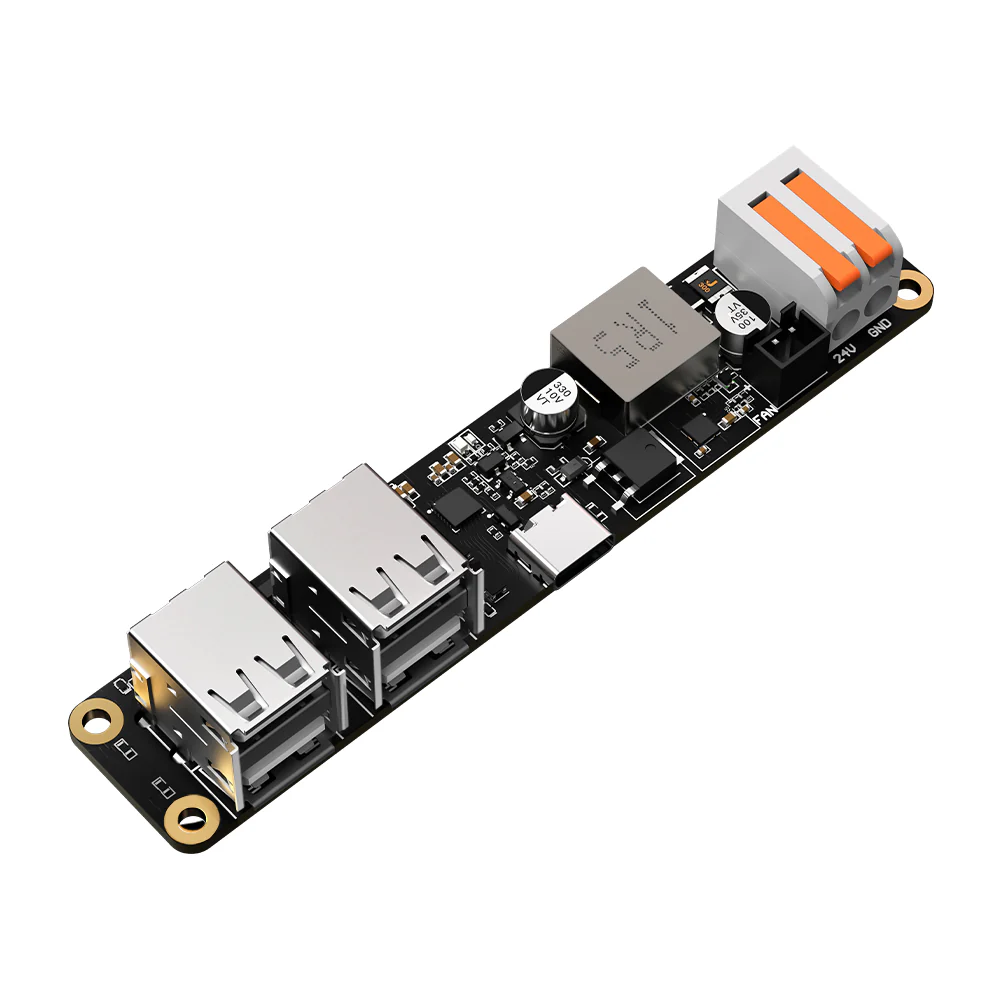

K Hub V1.0 4-Port USB 2.0 Hub – picture 1K Hub V1.0 4-Port USB 2.0 Hub – picture 2
