HeatCore 4 UHF ALPS Hotend

HeatCore 4 UHF ALPS Hotend

60.38 AUD

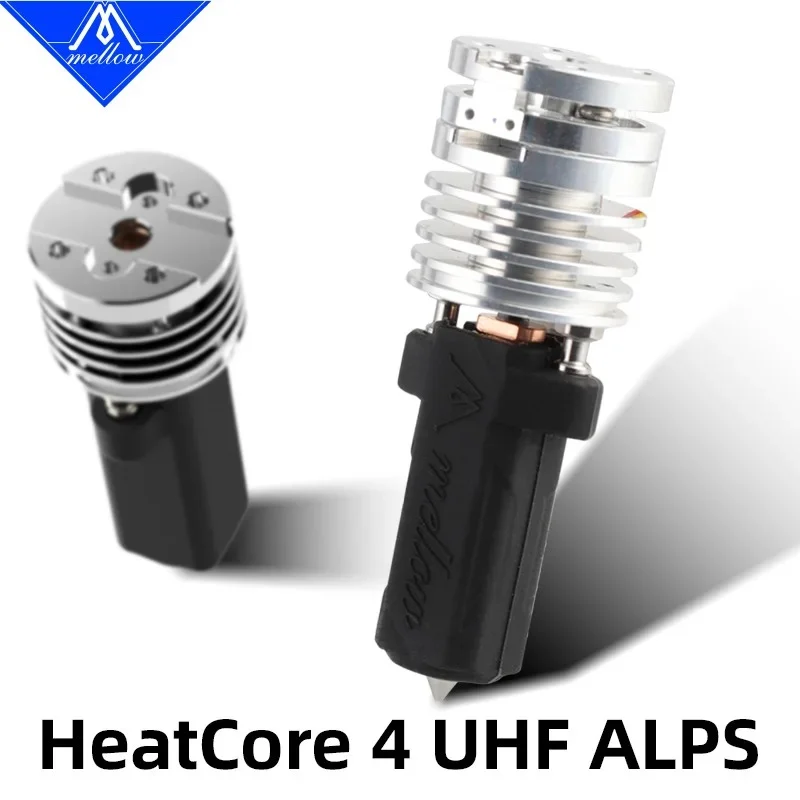

The HeatCore 4 UHF ALPS Hotend is a next-generation, compact, high-performance hotend designed for ultra-fast, high-temperature 3D printing. Featuring a 4 mm heating element, aerospace-grade components, and seamless compatibility with the ALPS pressure-based bed levelling module, it delivers rapid heat-up, stable extrusion, and precise levelling for professional and industrial applications.

Key Features of HeatCore 4 UHF Hotend

1. Ultra-Compact Design

  • 4 mm High-Performance Heater Cartridge: Minimises heater block volume for reduced thermal mass and faster response.
  • Lightweight Construction: Lowers overall printhead weight, improving printer dynamics and speed.

2. High-Power Heating System

  • 60 W Heater: Achieves target temperatures in seconds, dramatically cutting preheat times.
  • 400 °C Maximum: Supports high-temperature materials with a Pt1000 temperature sensor for precise control.

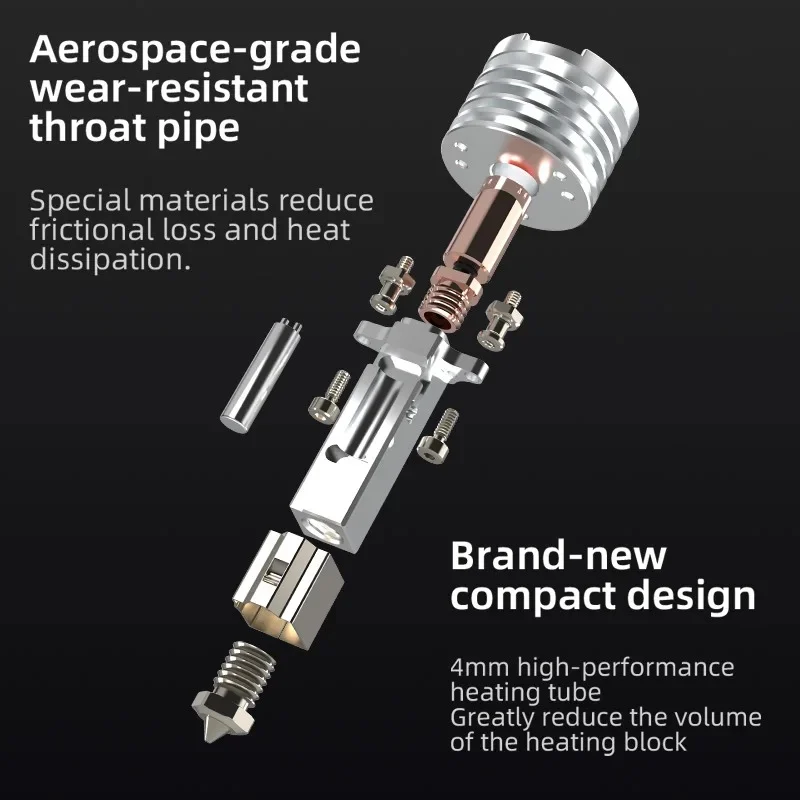

3. Aerospace-Grade Wear-Resistant Throat

  • Low-Friction Material: Reduces filament drag and heat loss, ensuring smooth, consistent flow.

4. Titanium-Reinforced Structure

  • Innovative Screw-Support Framework: Distributes mechanical stress across the hotend, enhancing reliability during long prints.

5. V6 Nozzle Compatibility

  • Standard Copper Nozzle Included: Easily swap in hardened steel, tungsten carbide, or silicon carbide nozzles to suit abrasive or high-temperature filaments.

6. Exceptional Flow Performance

  • > 40 mm³/s Throughput: Guarantees stable feeding at high print speeds, maximising productivity.

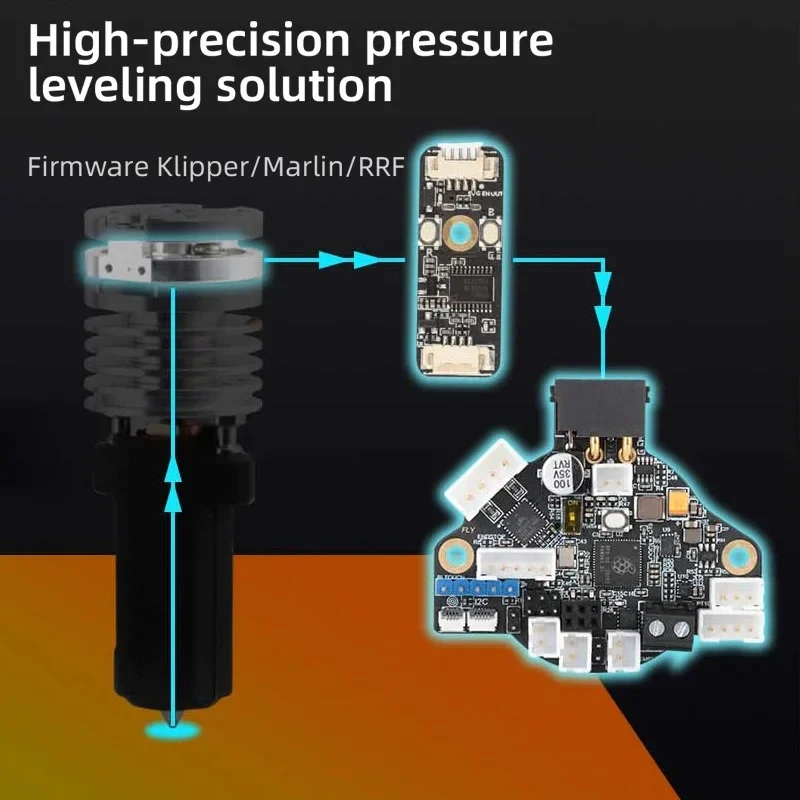

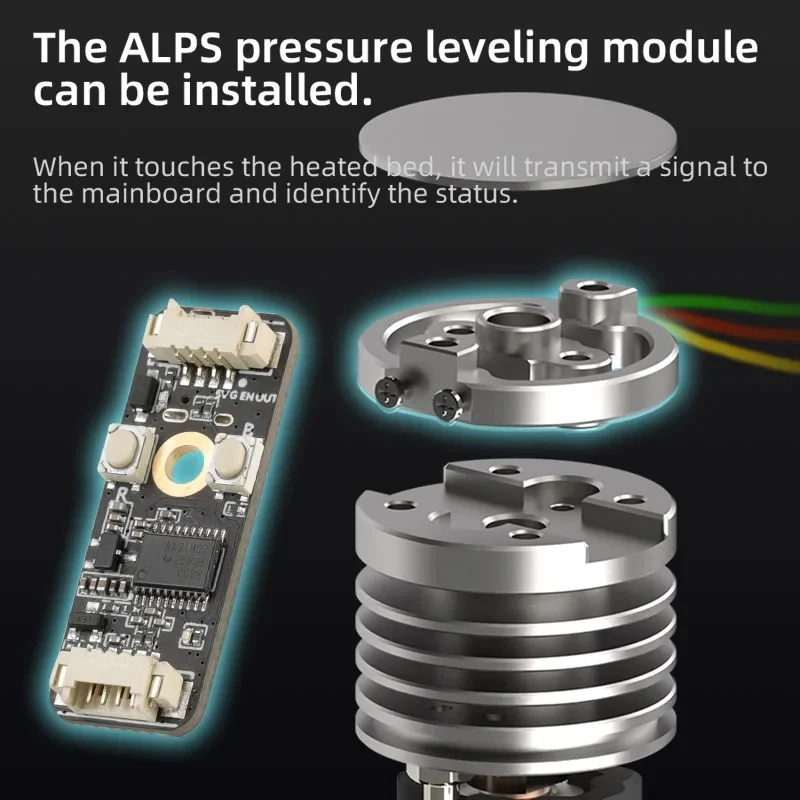

Highlights of the ALPS Pressure-Based Levelling Module

  • Nozzle Calibration Probe

1. 24-Bit High-Precision ADC

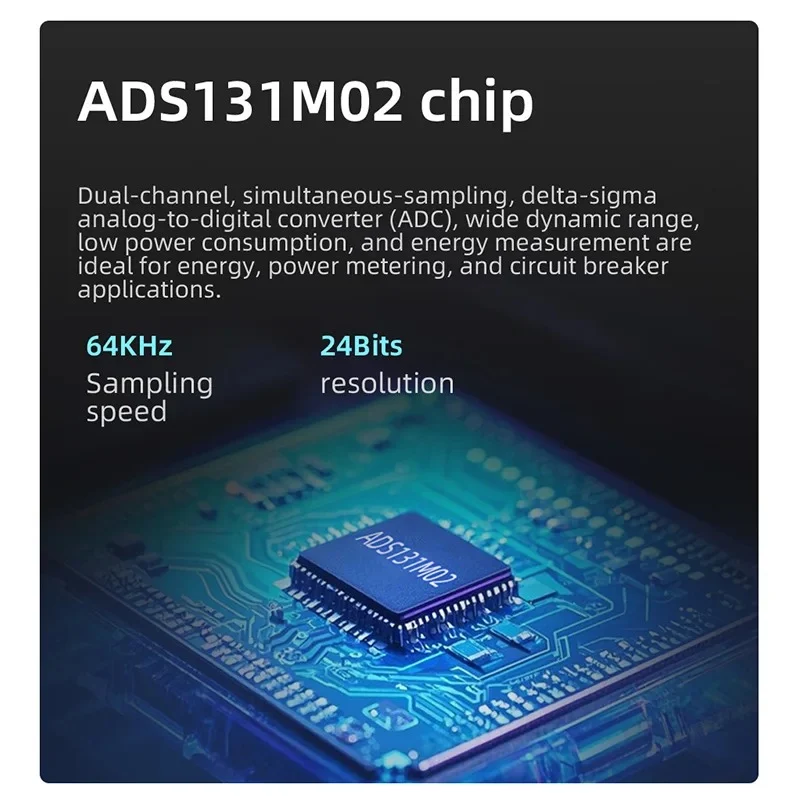

  • ADS131M02 Chip: Sampling at 64 kHz to detect minute pressure changes, outperforming HX711-based sensors.

2. On-Chip Signal Amplification

  • 128× Gain: Enhances sensitivity and signal-to-noise ratio for reliable bed triggering.

3. Advanced Noise Reduction

  • Low-Drift Reference & Kalman Filtering: Slashes measurement error by over 90 %, delivering ultra-stable readings.

4. Plug-and-Play Threshold Adjustment

  • USB Interface: Allows real-time threshold tuning on a PC—no coding or firmware tweaks required.

5. Broad Firmware Compatibility

  • Modular Integration: Works seamlessly with Klipper, Marlin, RRF, and other popular firmwares for custom pressure-based levelling workflows.

We provide a 1.5-meter cable for the ALPS module to connect directly to the motherboard's UART interface.

ALPS refers to this URL: https://mellow.klipper.cn/en/docs/ProductDoc/ExtensionBoard/fly-apls/?persistLocale=true
