Fly VoltUp Power Board 48V/60V Boost Module

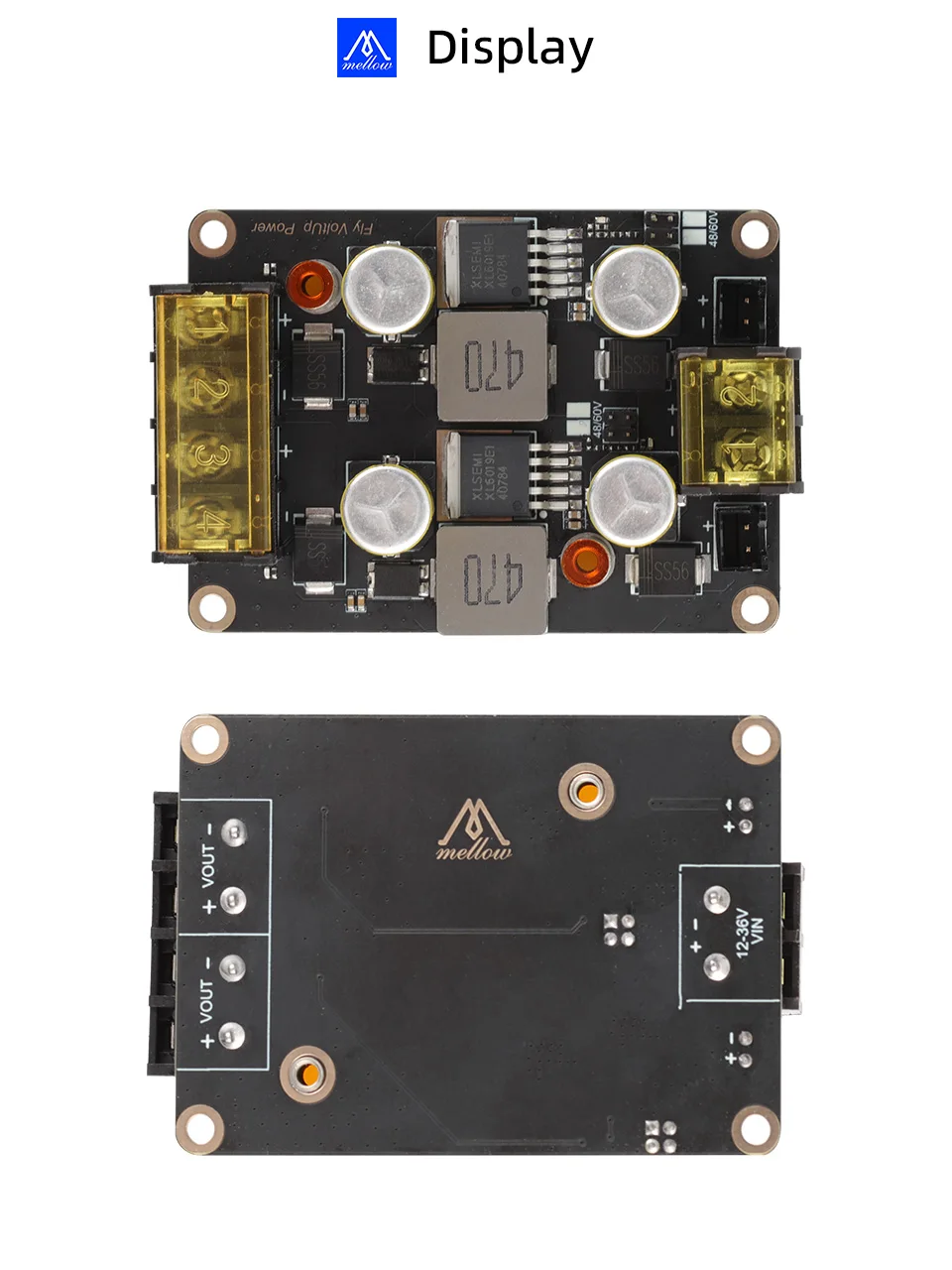

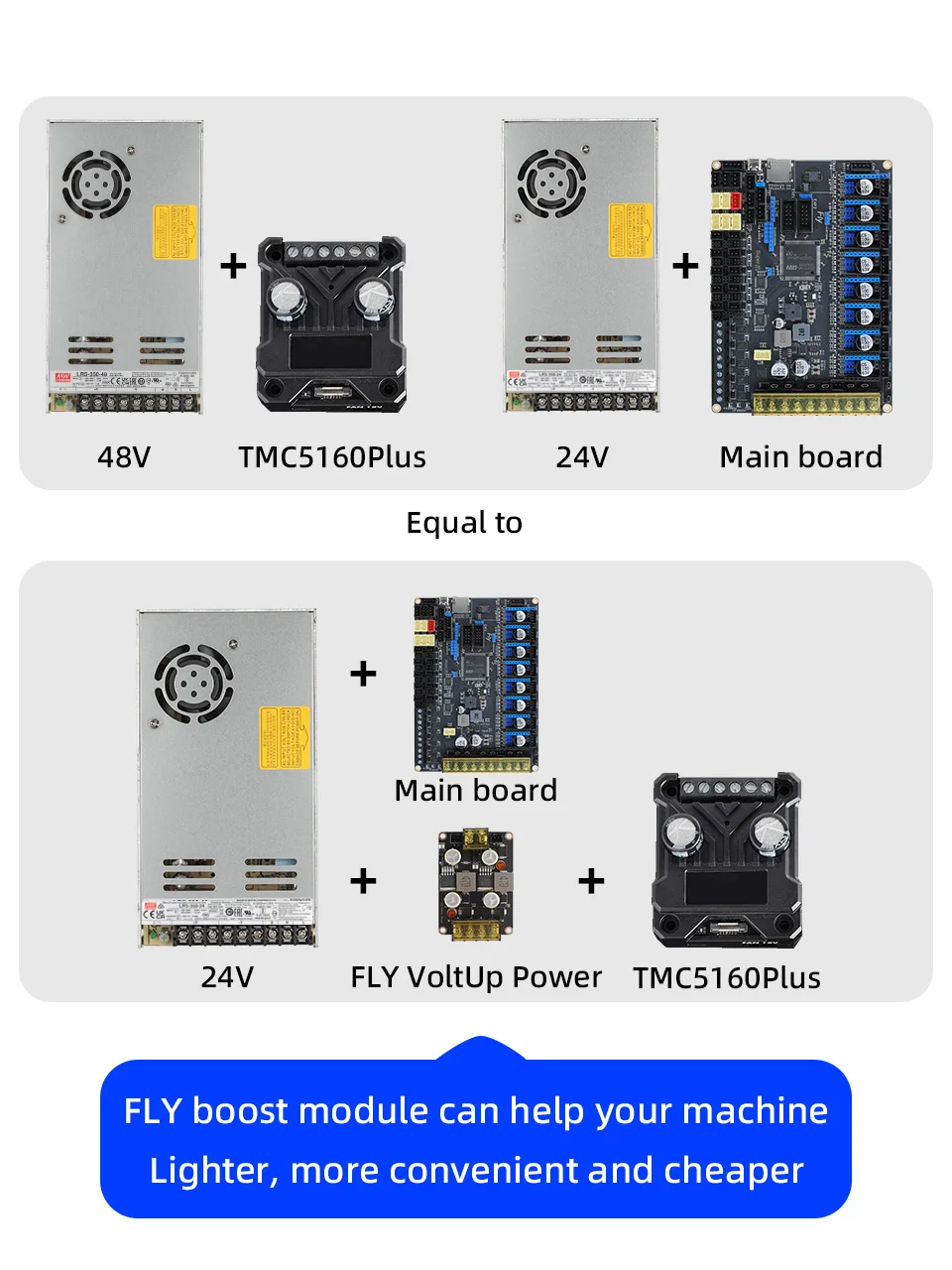

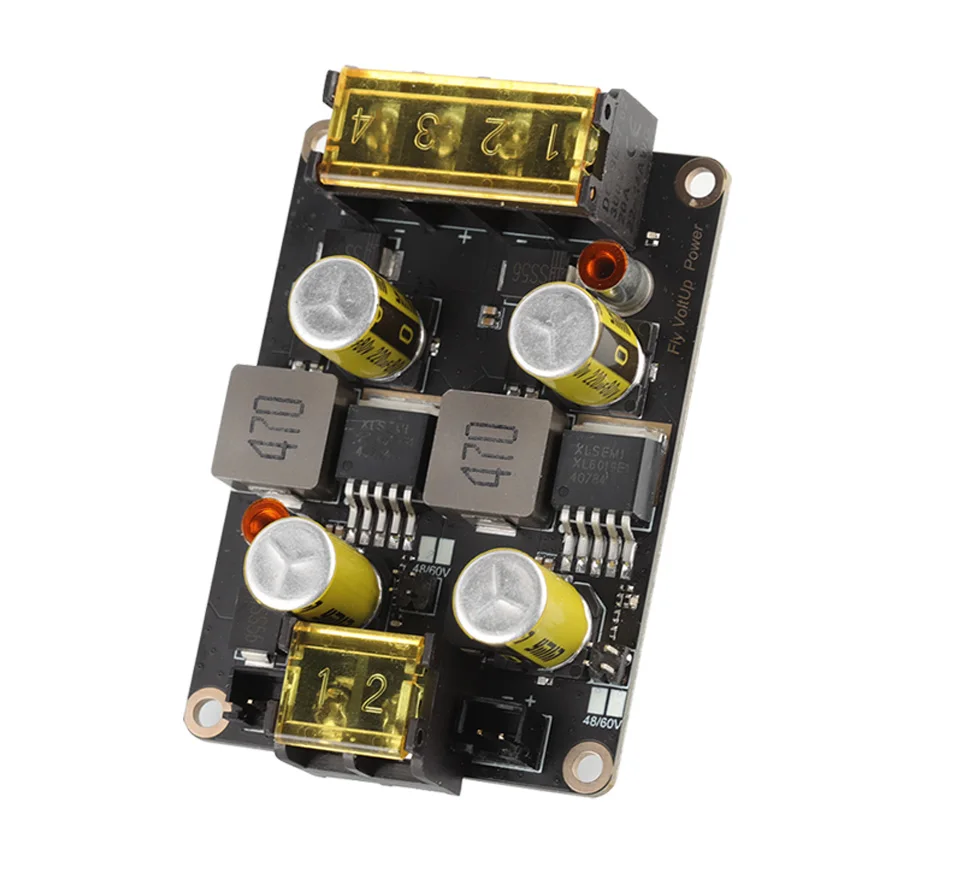

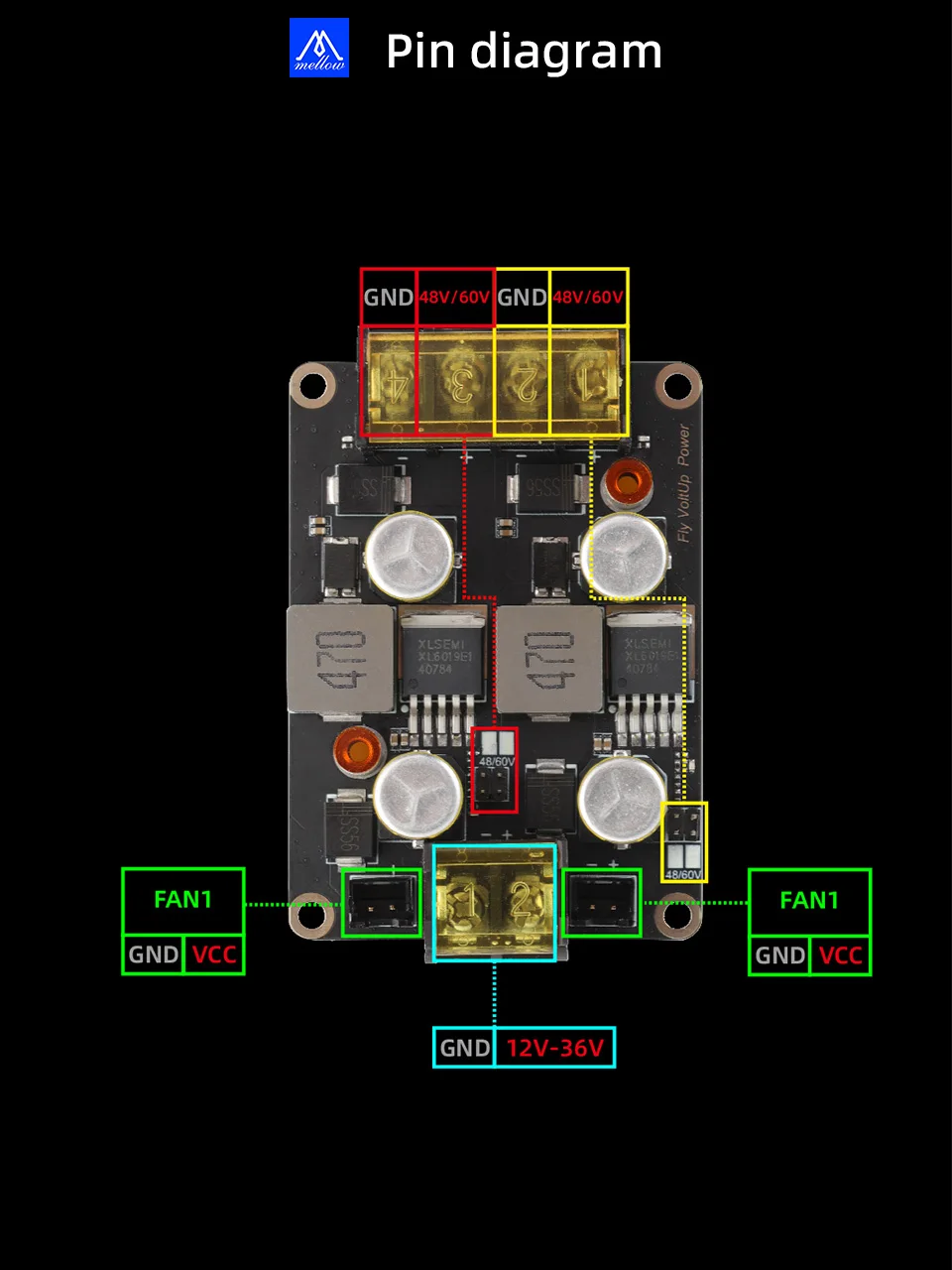

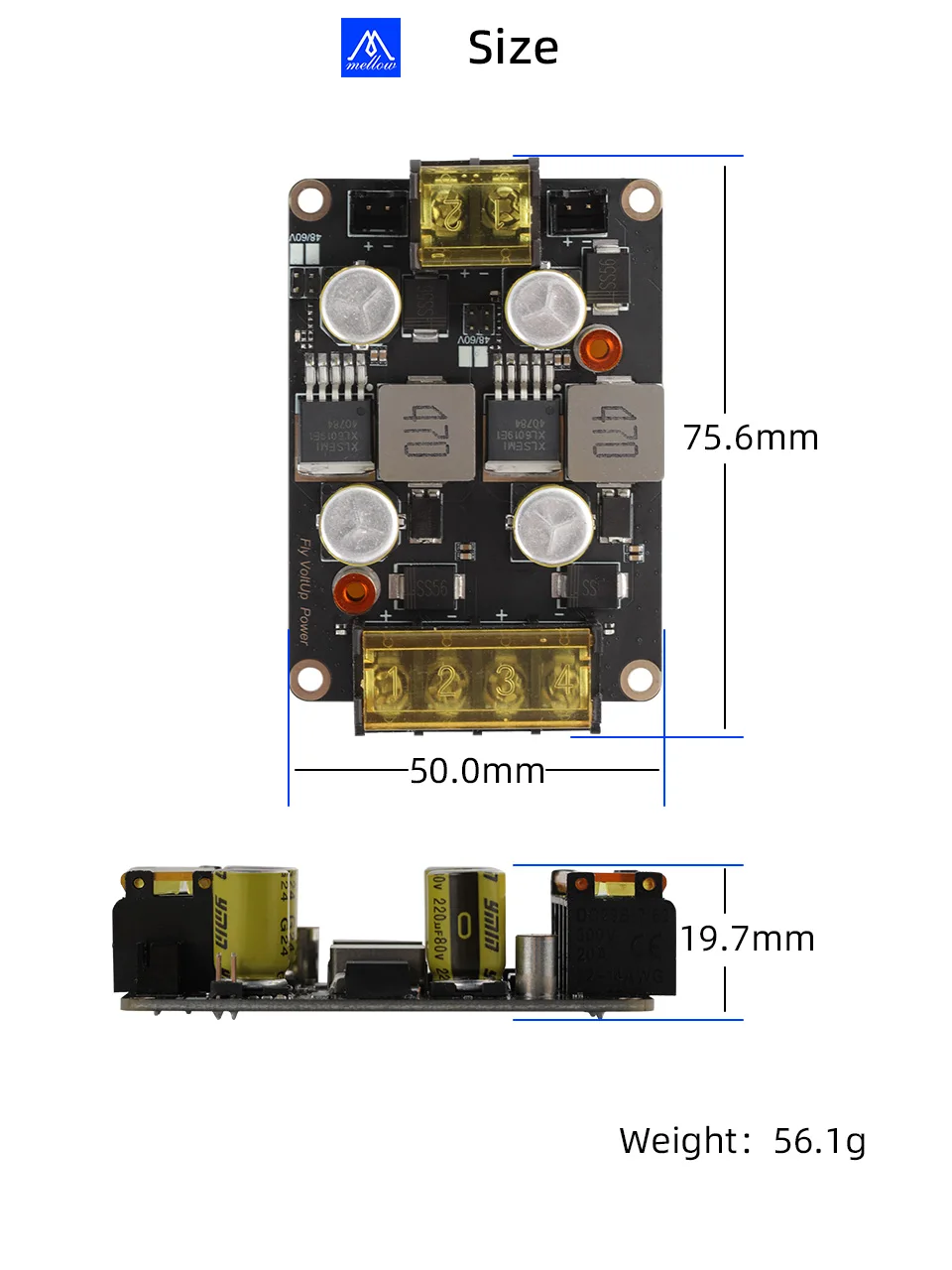

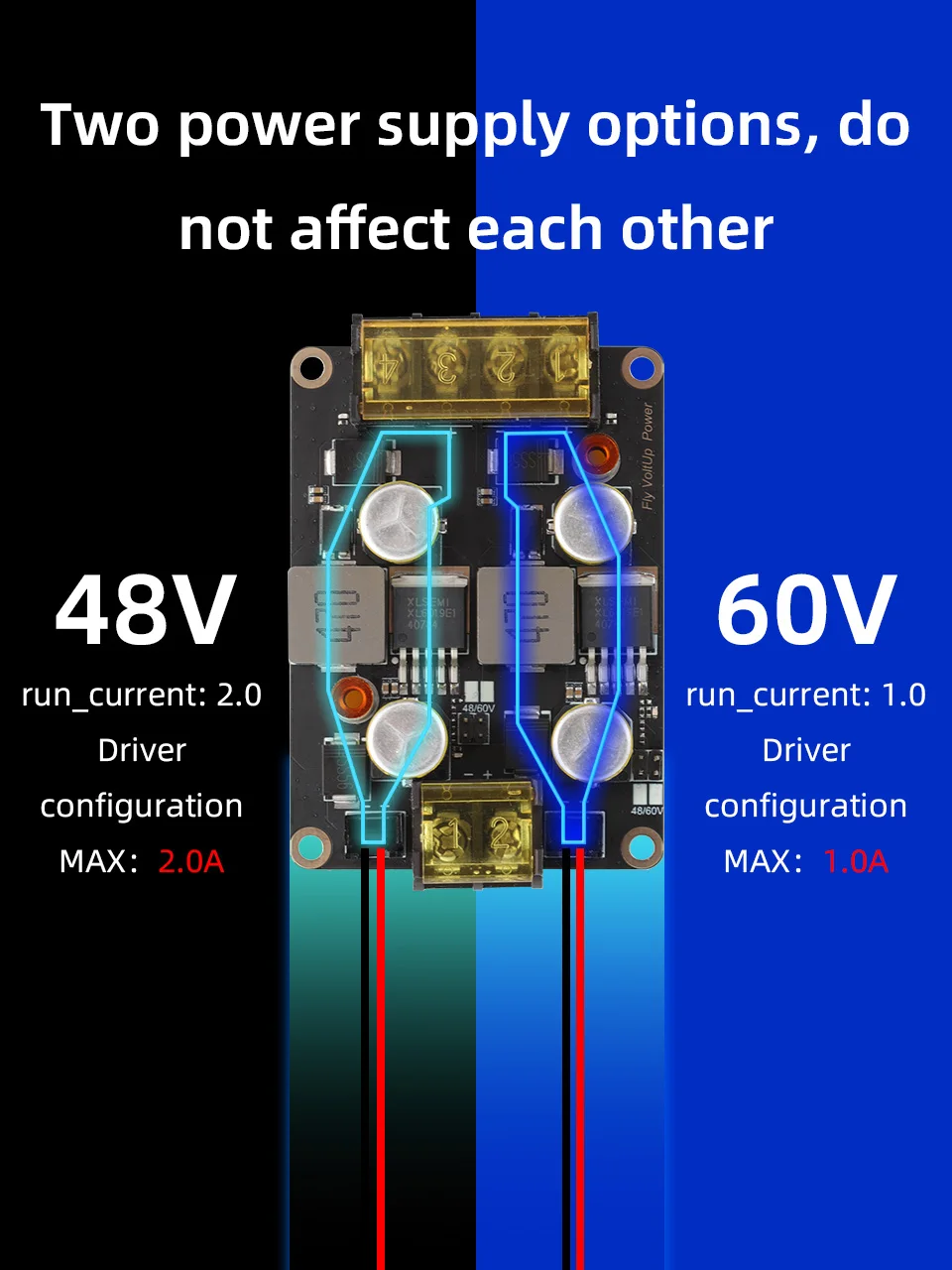

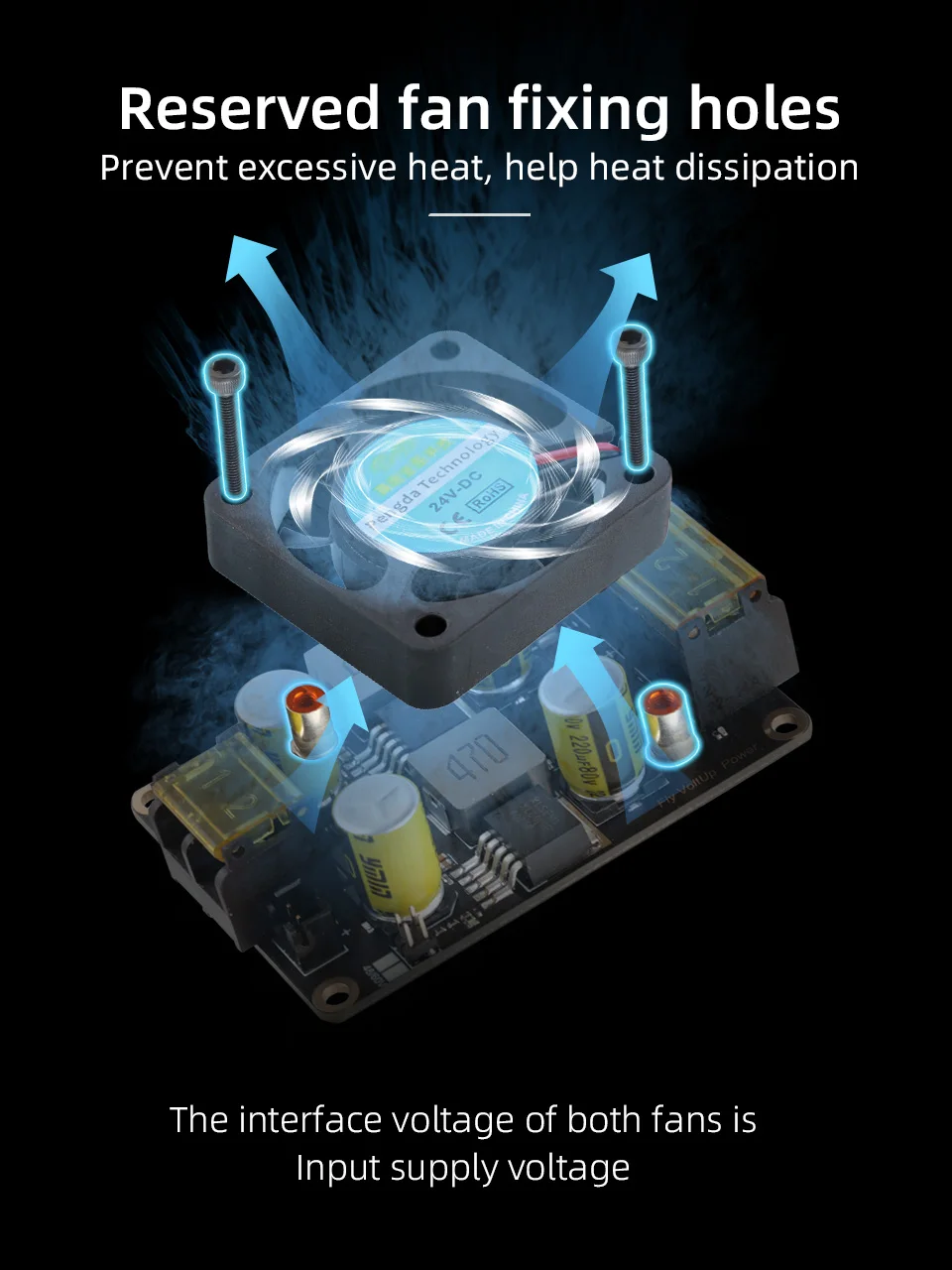

This boost module supports a power input range of 12V-36V, with a selectable output of either 48V or 60V (configured via jumper caps). At 48V output, the motor current can be set up to 2A, while at 60V output, the maximum motor current is 1A. The two VCC FAN interfaces provide voltage consistent with the power input, and the output voltage matches the power supply voltage. The module is equipped with mounting holes for a 4010 fan, which is essential for heat dissipation due to the significant heat generated by the boost module. It also features a built-in reverse polarity protection diode to prevent damage from user errors.

Usage Precautions

Both 48V and 60V are non-safe voltages; all operations must be performed with the power off, and proper leakage protection should be in place to prevent electric shock.

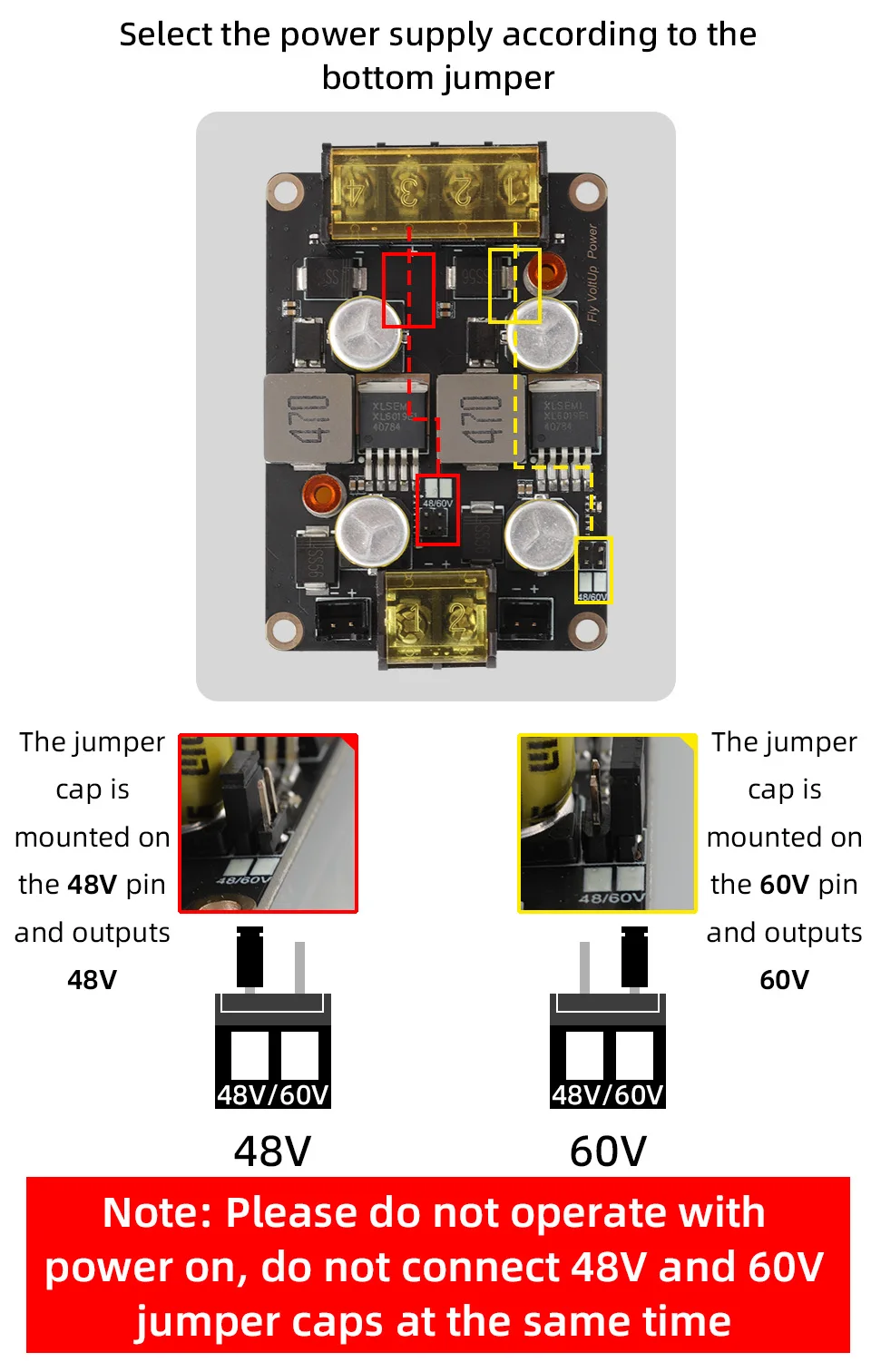

Do not insert both voltage selection jumper caps simultaneously to avoid damaging the components.

Ensure correct connection of positive and negative terminals to prevent component damage.

Package:

1*Fly VoltUp Power Board
