Magneto Filament Cutter

Magneto Filament Cutter

28.05 AUD

Cut filament at the toolhead, for clean filament changes

The Magneto cutter by Treintjes replaces the adapter plate on a VzBoT printhead. Its blade cuts the filament just above the hotend, so the end is clean and sharp before unloading. That makes filament changes and multi-material swaps more reliable. It adds 2 mm to the hotend length.

  • Fits: Mellow CNC VzBoT 330/235 printhead, Mellow CNC Rat Rig/HevORT head, Mellow ZeroG CNC head; Goliath Air/Water V2, Phaetus Rapido, Dragon, Long Goliath.
  • Not for: Short Goliath; not recommended with the VzHextrudORT LOW (LOW PLUS is fine).

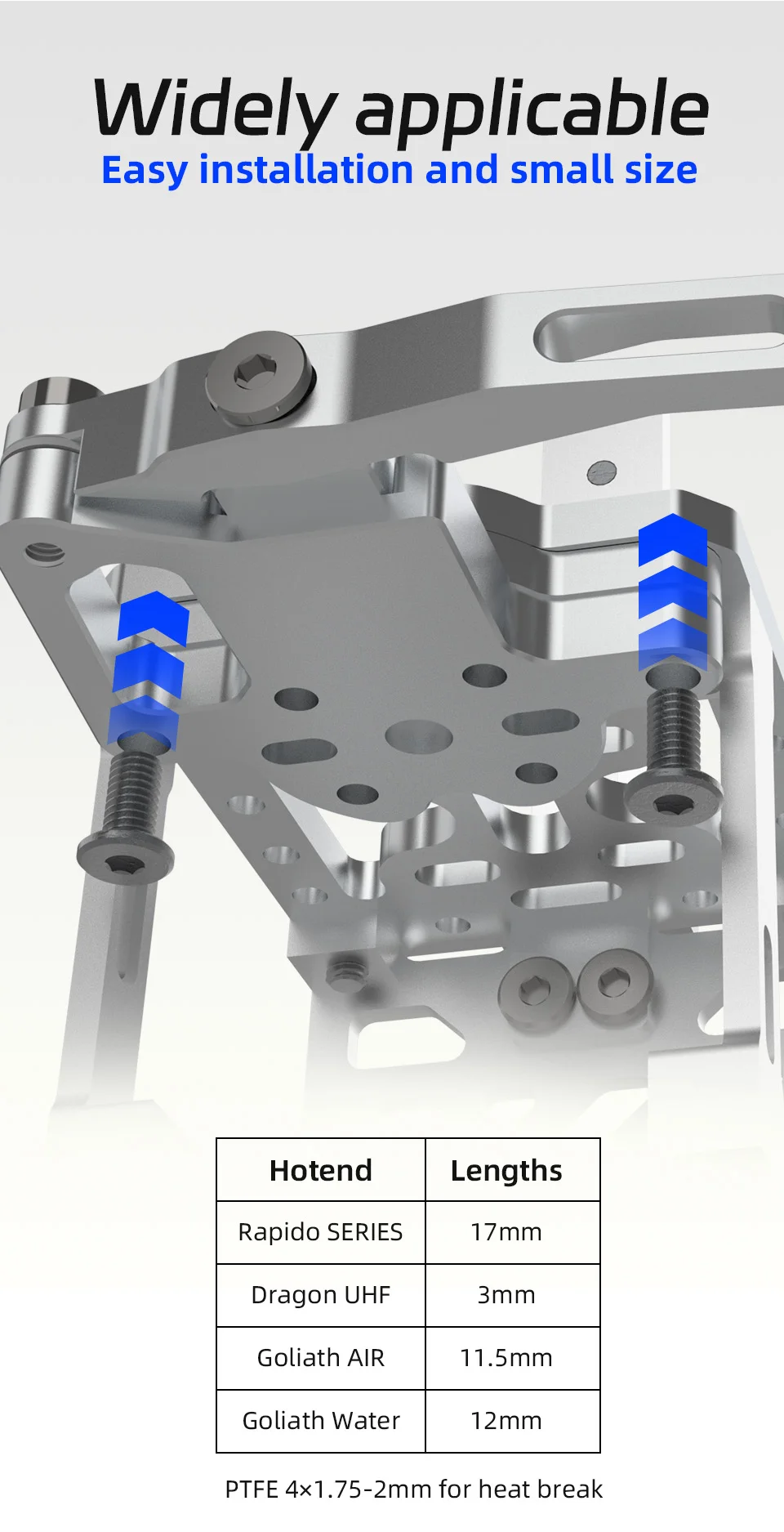

  • Fitting: M3 × 8 screws replace the original M3 × 6. Put a filament guide before the extruder for a clean cut. Recommended PTFE lengths per hotend are in Treintjes's GitHub.
  • In the box: cutter + 3 spare blades.

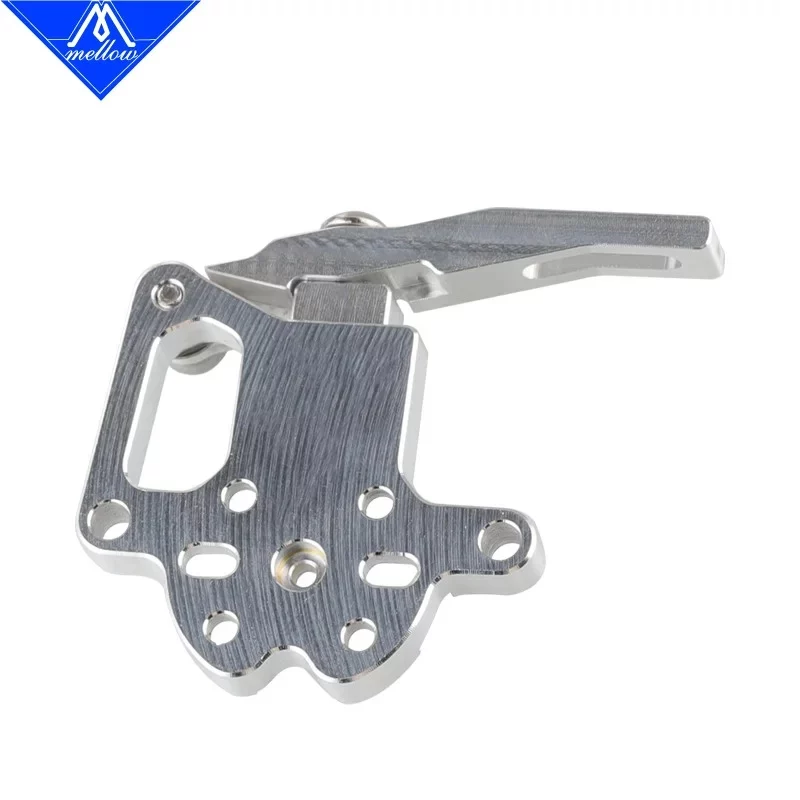

Magneto Filament Cutter – picture 1

The Magneto Filament Cutter, designed by Treintjes, is a direct replacement for the VzBot Adapter Plate in the VzBot Printhead series (https://github.com/VzBoT3D/Vz-Printhead-CNC). This upgrade adds 2mm to the hotend length and is fully compatible with the Vz-Printhead featuring the Long Goliath or other hot-ends, except the Short Goliath.
This component is entirely designed by Treintjes, with our role limited to manufacturing it. To understand 3D Printer Filament cutter, follow this URL https://github.com/Treintjes/Magneto_Filament_Cutter
Compatible
· Printhead

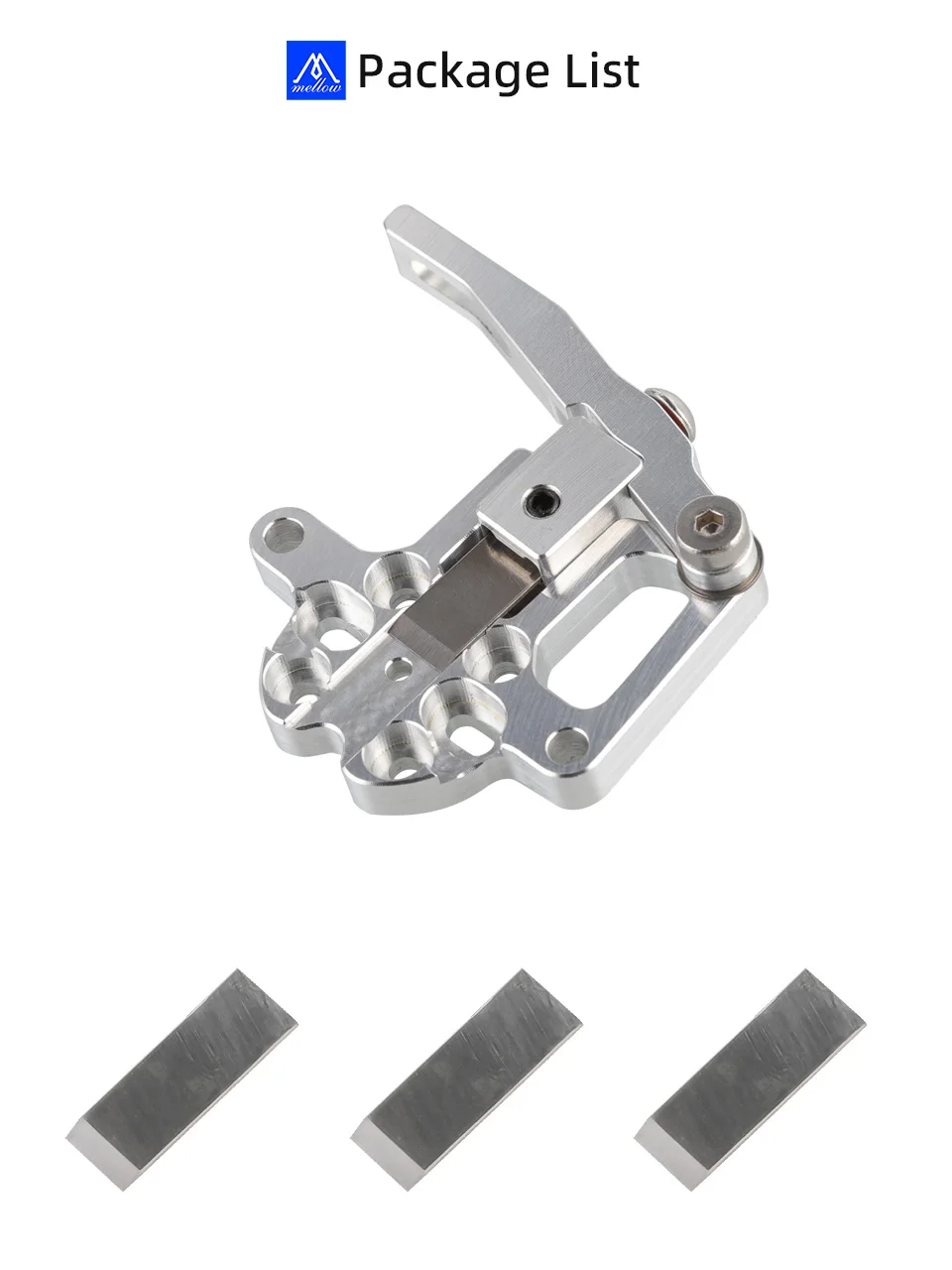

Package included:
  • Magneto Filament cutter*1
  • Replacement blades*3

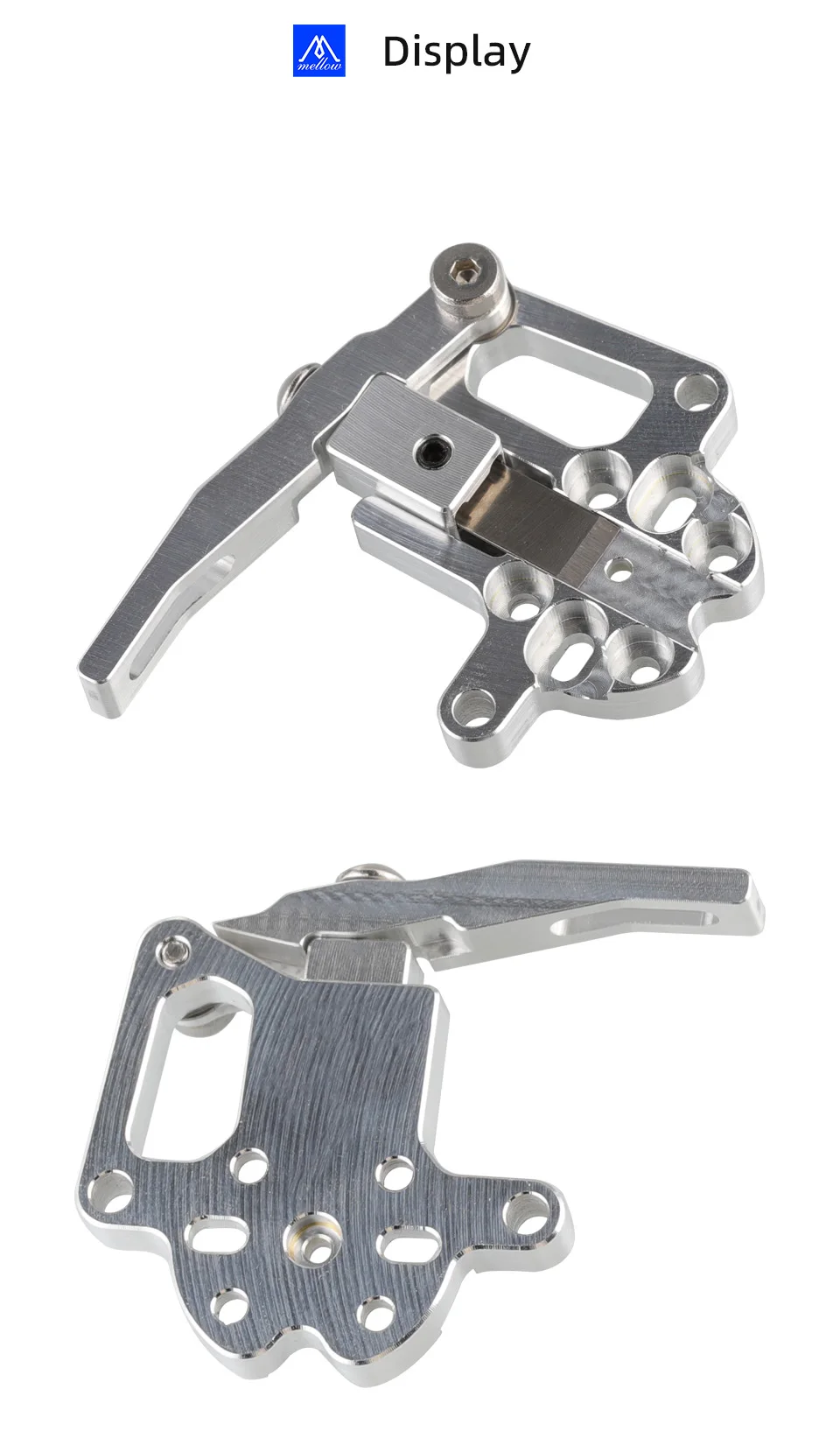

Magneto Filament Cutter – picture 2

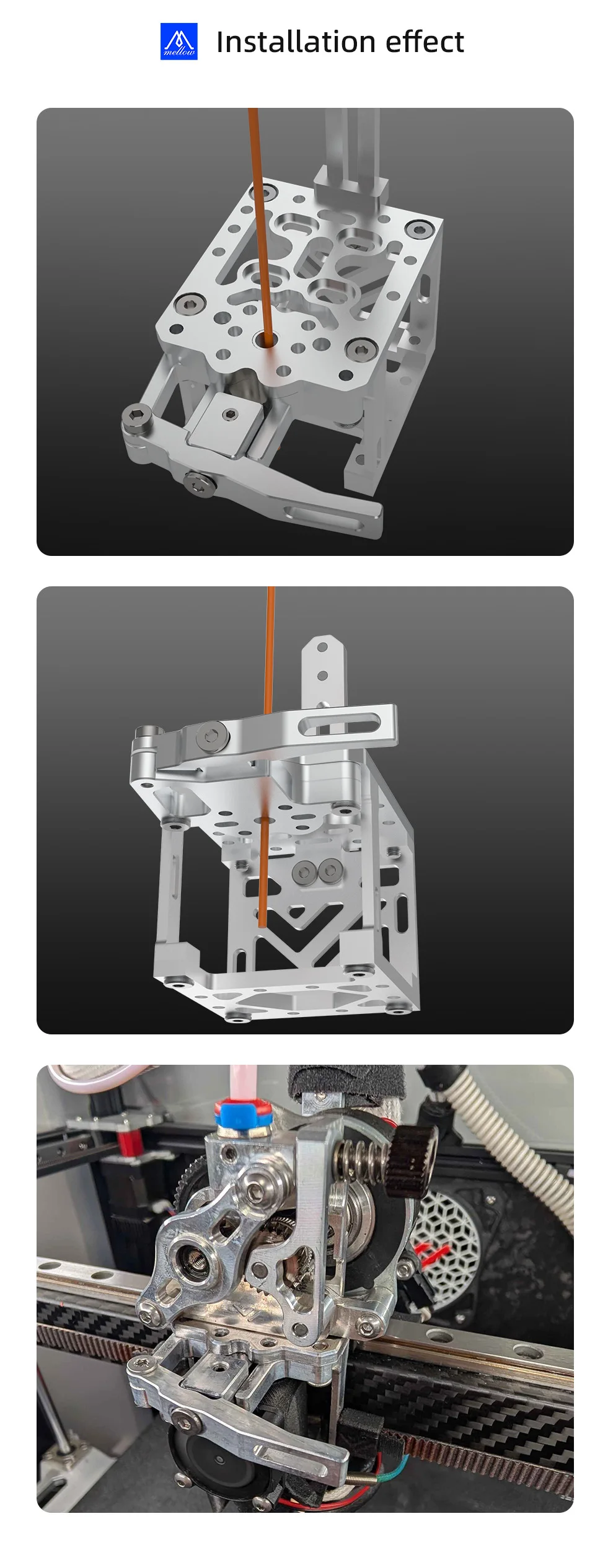

Magneto Filament Cutter – picture 3
Magneto Filament Cutter – picture 4
Magneto Filament Cutter – picture 5

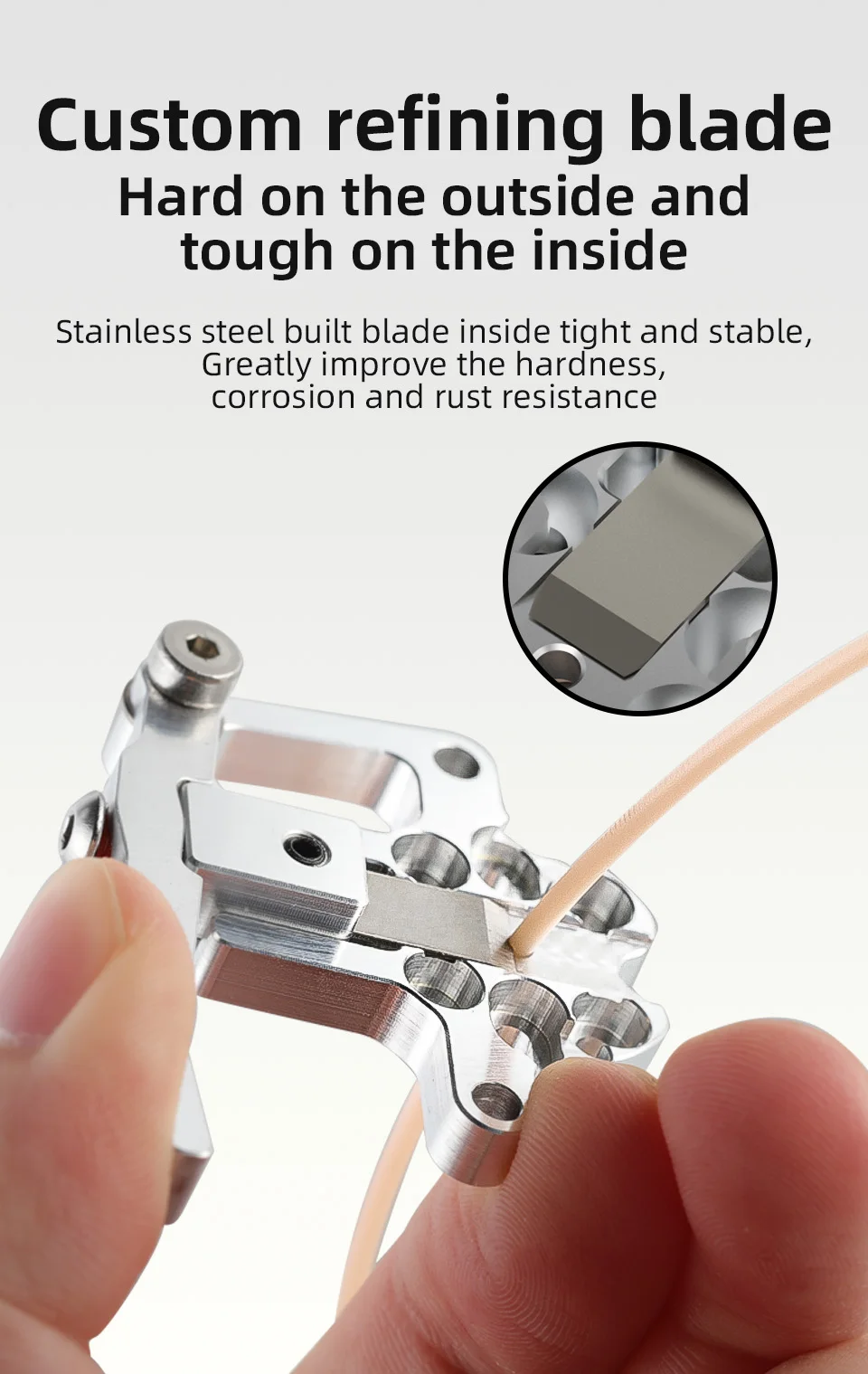

Magneto Filament Cutter – picture 6

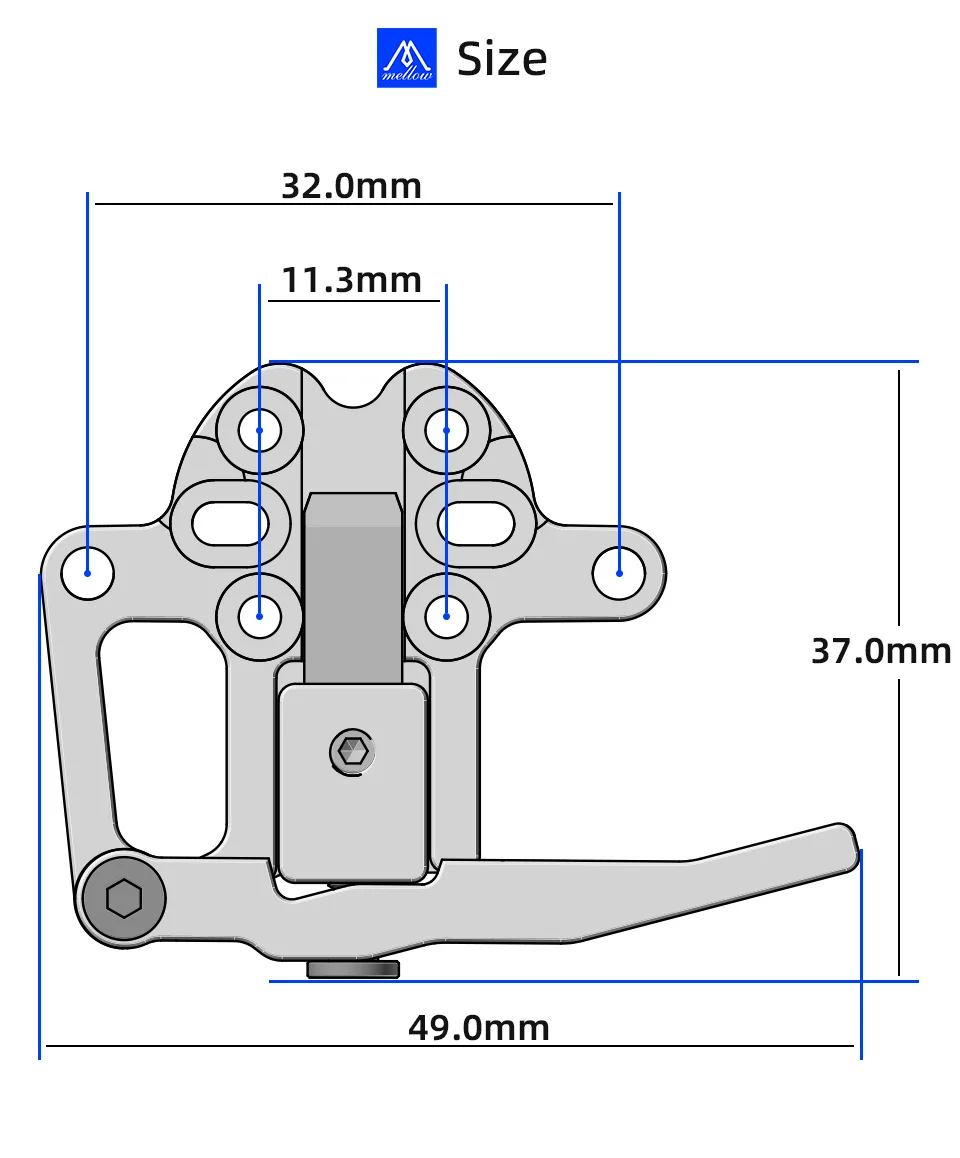

Magneto Filament Cutter – picture 7

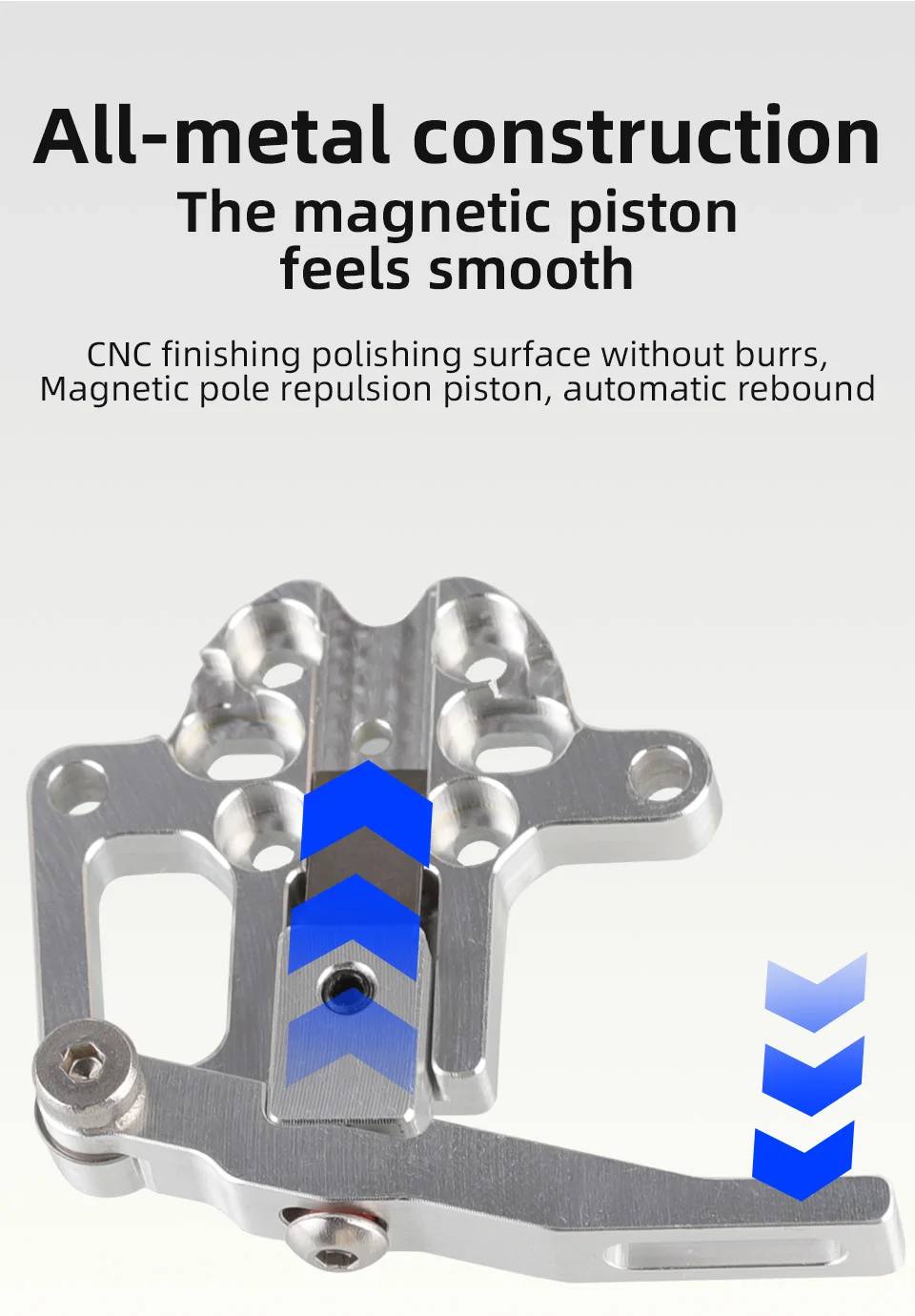

Magneto Filament Cutter – picture 8
