CNC ST/IDEX Vcore4 Printhead Bracket

CNC ST/IDEX Vcore4 Printhead Bracket

138.86 AUD

Mellow CNC ST/IDEX Vcore4 Printhead Bracket For Goliath Rapido Dragon Hotend VZ Extruder Orbiter LGX Sherpa Mini 3D Printer

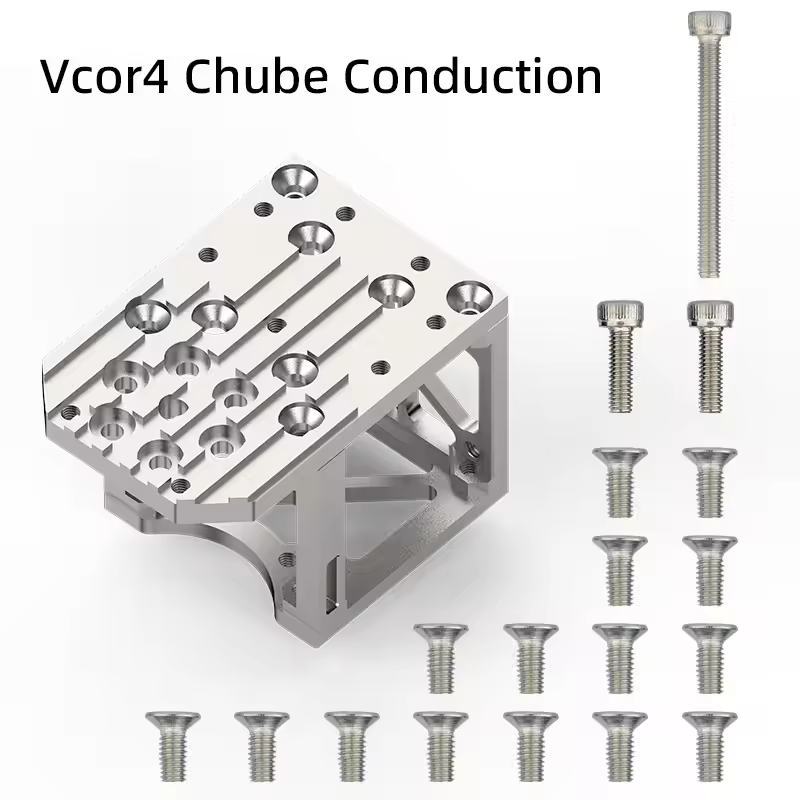

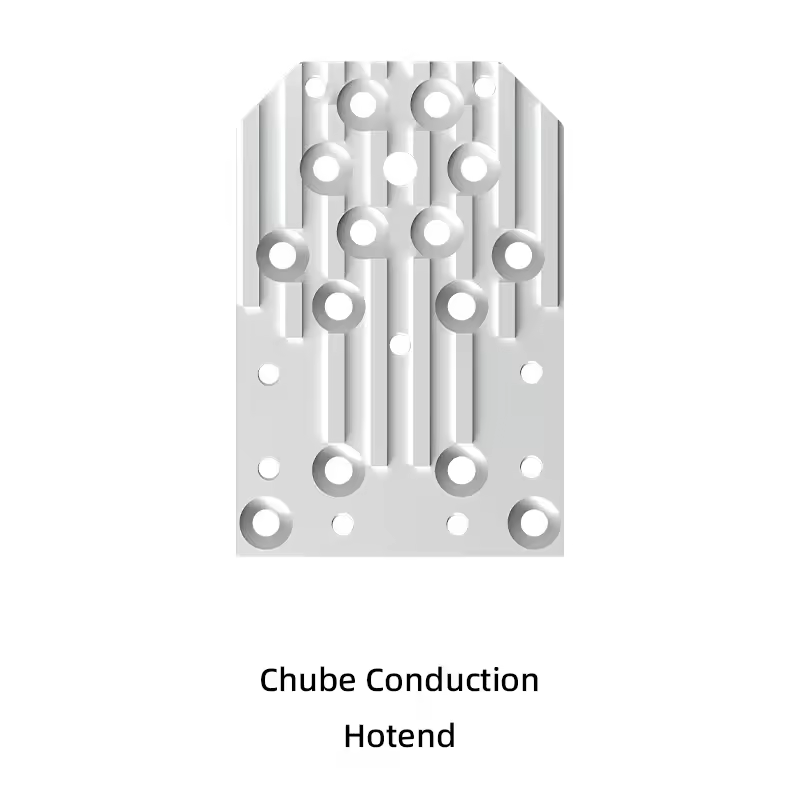

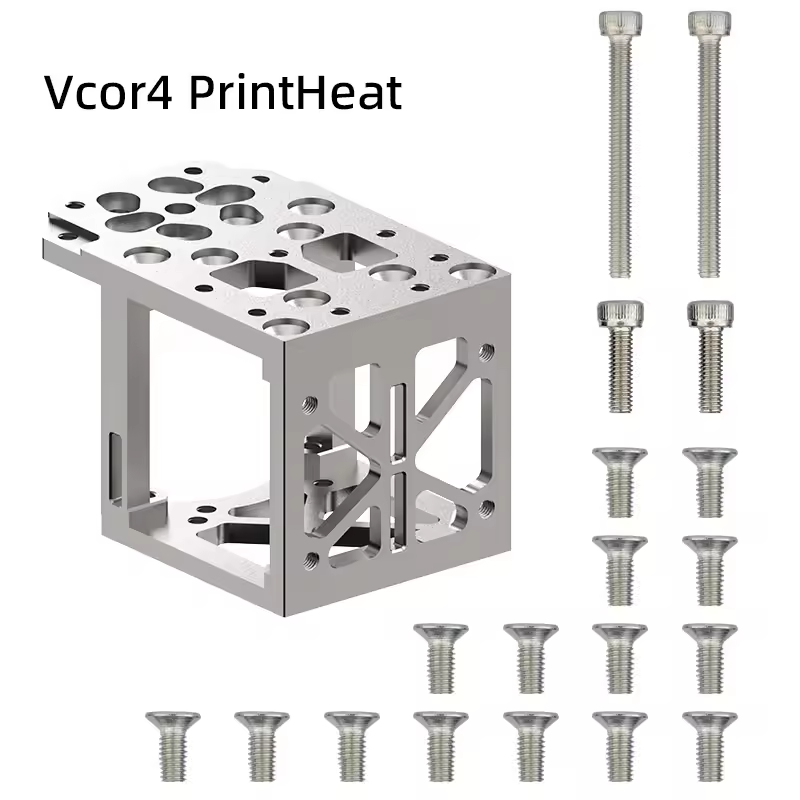

This Vcore4 Printhead bracket, modified by Cristian based on the VzBot Printhead bracket, supports Vcore4 and Vcore4 IDEX 3D printers. Its lightweight design allows for the simplest installation when used with Vzbot extruders. Its innovative structure accommodates a variety of extruders and hotends, allowing for multiple configurations to suit your needs. The original bracket was the result of extensive experimentation by the VzBoT team, so this version was also produced with their permission.
Currently, only some prints are available for this Vcore4 printhead. We will have more designs to share in the future.

One issue we've discovered is that installing the Goliath air-cooled version requires cutting the leadscrew 5 mm to prevent collision with the IDEX nozzle holder.

Printed parts can be downloaded here: BigTreeTech ERCF Control Board MMB CAN V1.0: Electronic circuit board with multiple connectors, capacitors, and components for 3D printing

Big thanks go to Cristian I for his design and contribution to the community.

Compatible:· V-Core 4 3D Printer
