BIGTREETECH TMC5160T/TMC5160T Plus Stepper Motor Driver SPI Mode


SKU: 8799790465308 Categories: , Tags: , , ,
BIGTREETECH TMC5160T/TMC5160T Plus Stepper Motor Driver SPI Mode BIGTREETECH TMC5160T/TMC5160T ...


Select options

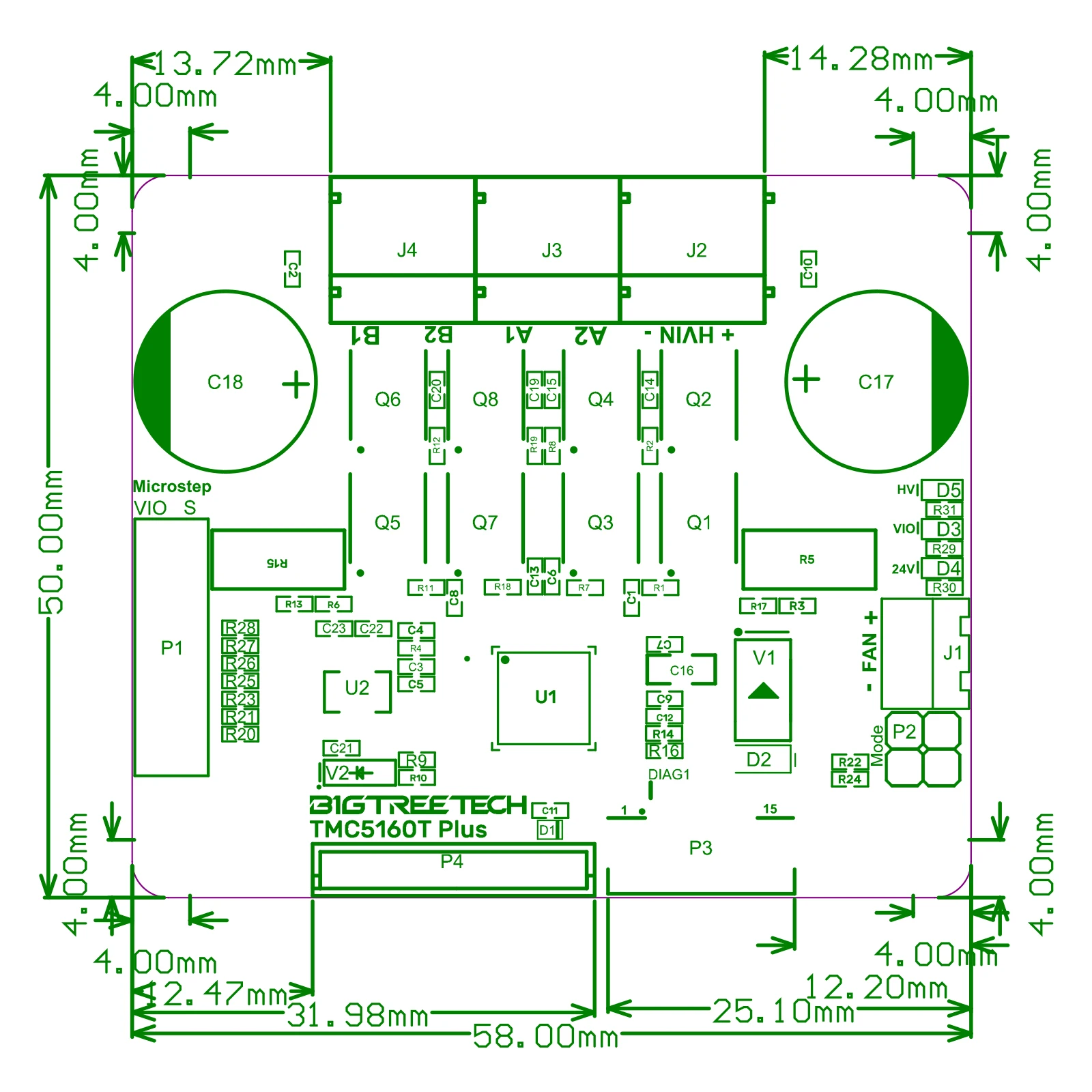

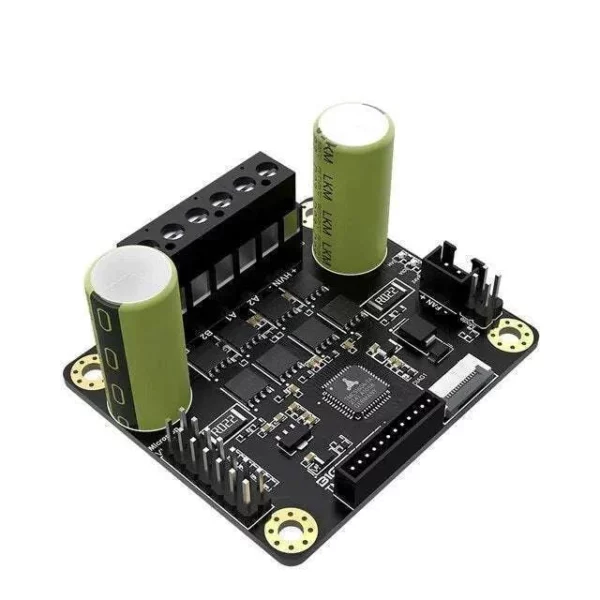

TMC5160T Plus is a high-power stepper motor driver control module, featuring 8 high-power MOSFETs separately mounted on the board with a maximum voltage of 60V. This supports a wider range of stepper motors and offers greater adaptability.


  • 8 high-power MOSFETs separately mounted on the board with 100V voltage resistance, 93A current resistance, and equivalent resistance as low as 6mΩ, significantly enhancing the drive’s performance;
  • Supports a maximum voltage of 60V, a maximum effective current (IRMS) of 10.6A, and a sine wave peak current of up to 15A;
  • StealthChop™ mode and SpreadCycle™ mode selectable, with standalone mode, UART mode, and SPI mode selectable;
  • Generates significantly less heat compared to other drives with the same chip model, and outperforms others on the market;
  • Can prevent motor jitter and avoid losing steps;
  • Tested to drive 36, 42, 57, 86, etc., stepper motors;
  • ESD protection on the drive power, logic power, etc., to prevent damage due to power fluctuations and static electricity;
  • On-board 24V always-on fan interface facilitates active cooling;
  • Encoder interface reserved for DIY usage;
  • Integrated heat sink design, providing high heat dissipation while enhancing structural integrity and aesthetics;
  • Supplied with adapters and wires for both standard drives and EZ drive, for user convenience;
  • Heat sink pre-designed with fan mounting holes for DIY fan installation.
