BigTreeTech SKSM V1.0

BigTreeTech SKSM V1.0

29.95 AUD

Saves your Klipper host when the power goes out

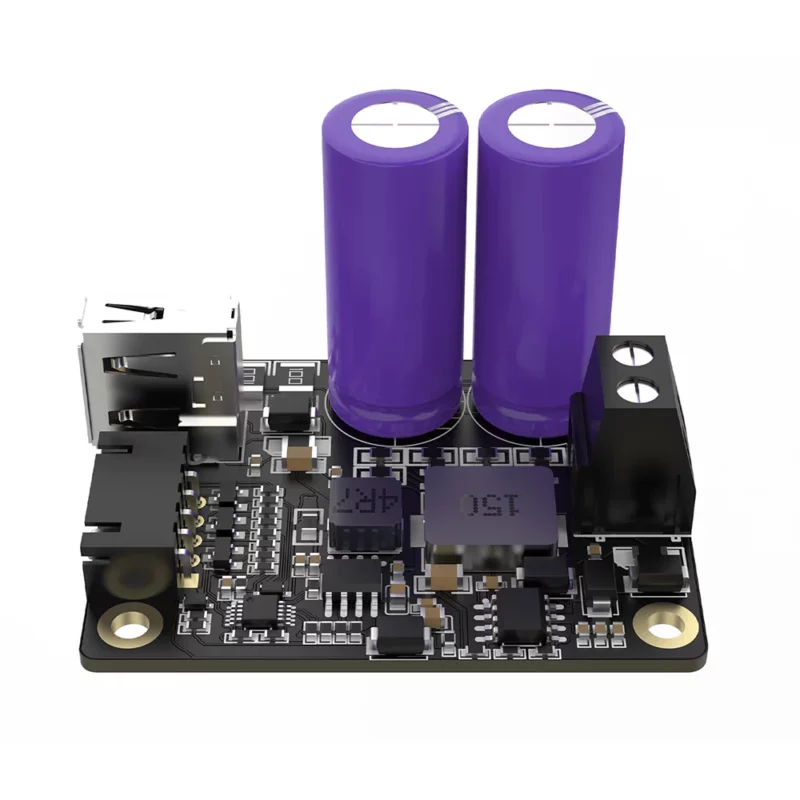

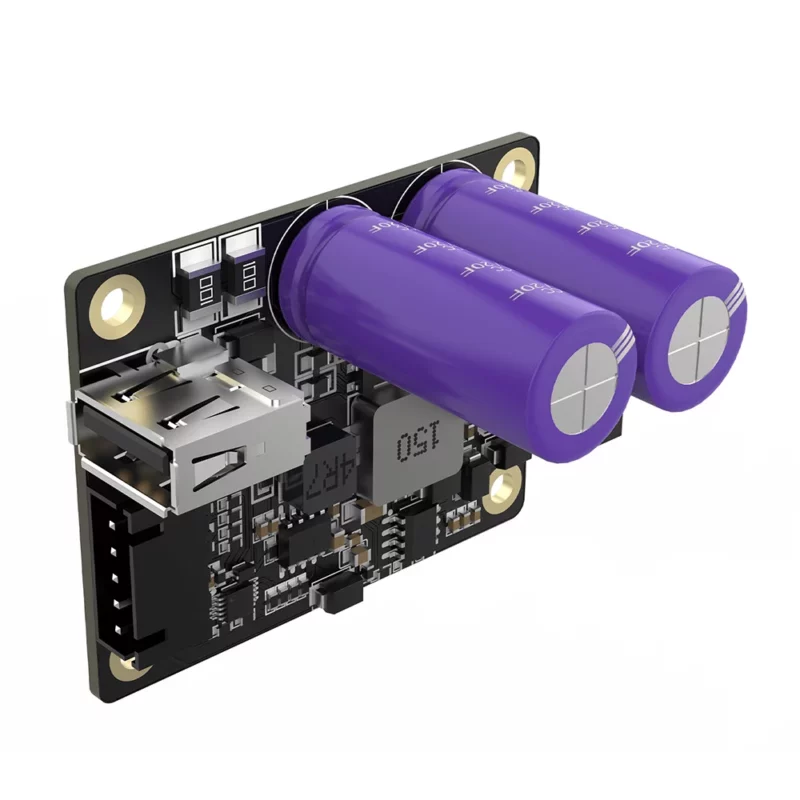

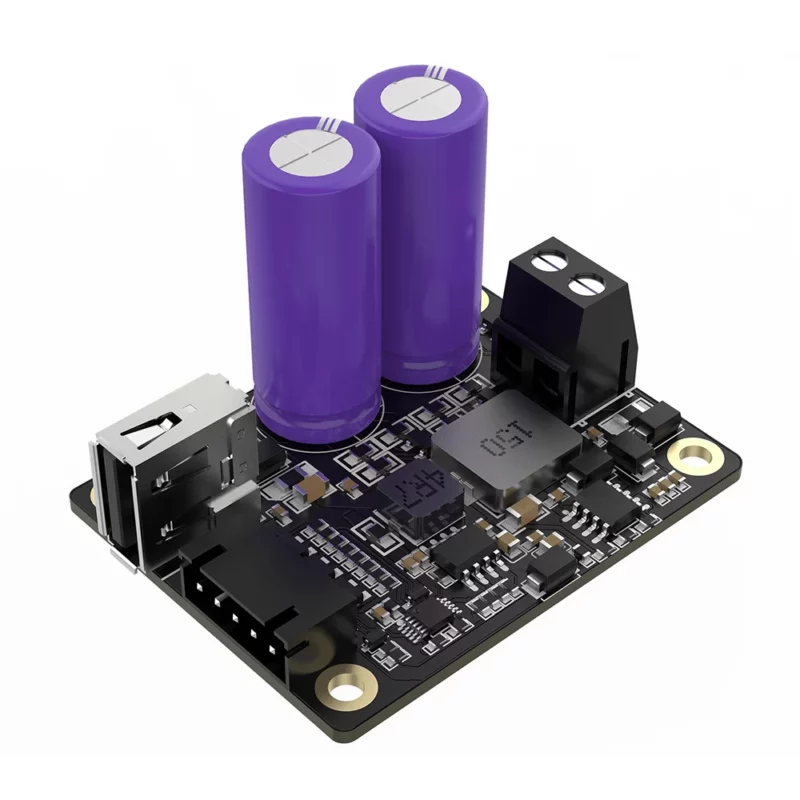

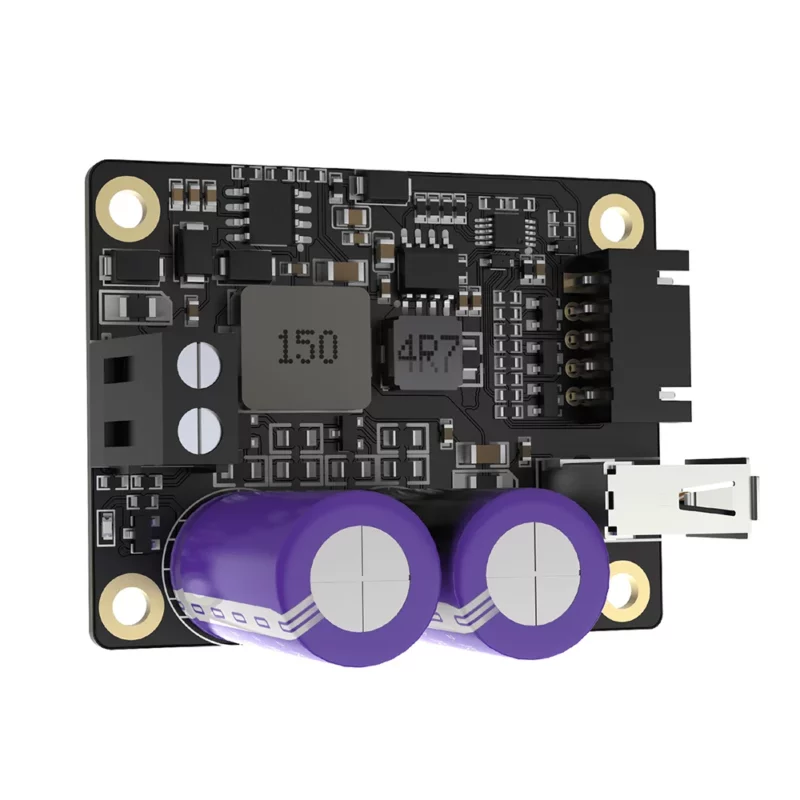

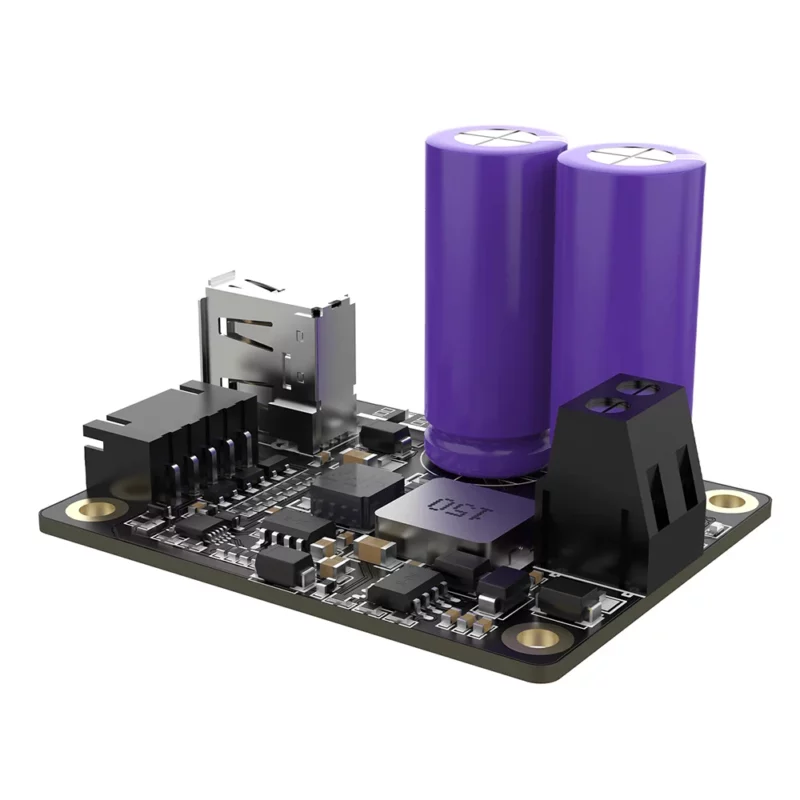

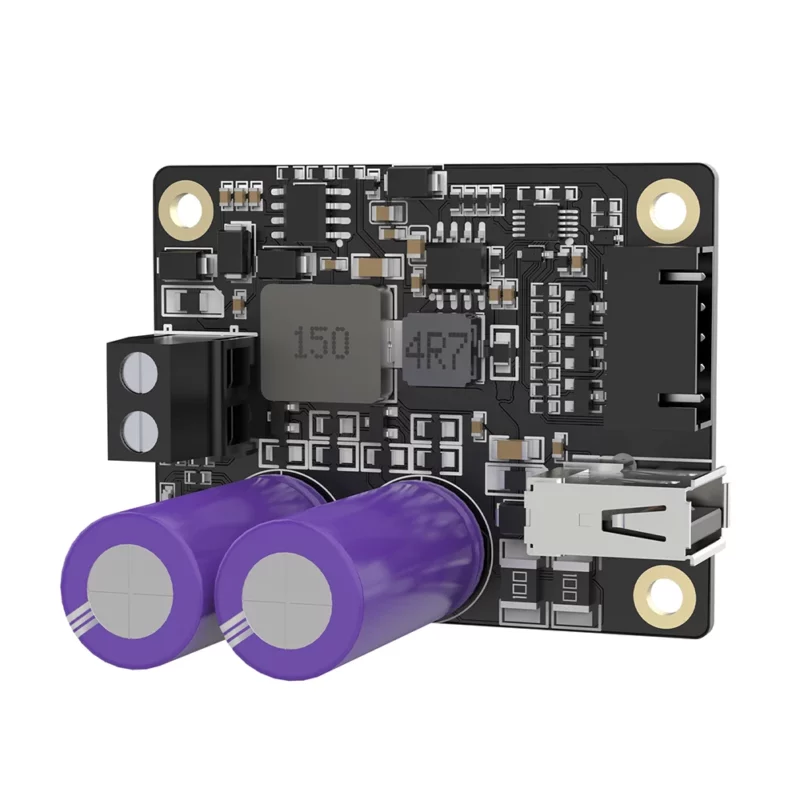

SKSM sits between the printer's 12–24 V supply and the Klipper host. When the power drops, two 2.7 V 20 F supercapacitors keep the host running for up to 15 seconds while the module tells it to shut down cleanly. That protects the SD card or system image from corruption.

  • Input: 12–24 V DC, with reverse polarity protection.
  • Output: 5 V 2 A from the USB port to the host (Raspberry Pi 3, 4B, BTT Pi or Pi4B Adapter + CB1).
  • Backup: up to 15 s at 5 V, 1 A load. The capacitors charge in about 100 seconds after power-on.
  • Signals on a 5-pin XH2.54 cable: power lost (shutdown), power back (reset), and a detect input.
  • A red LED flashes while charging and stays on when ready.
  • Size: 50.2 × 39.4 mm (43.3 × 32.9 mm hole spacing).
  • In the box: SKSM, a 300 mm connecting cable, a 200 mm power cable, a sticker and the BTT duck.

Setting it up

  • On a Raspberry Pi, add dtoverlay=gpio-shutdown,gpio_pin=21 to config.txt. BTT Pi and Pi 2 use a setting in their boot file; see BTT's manual.
  • Wire the reset line too if your host supports it. Otherwise the host stays in standby after a short power blip, and you have to restart it by hand.
