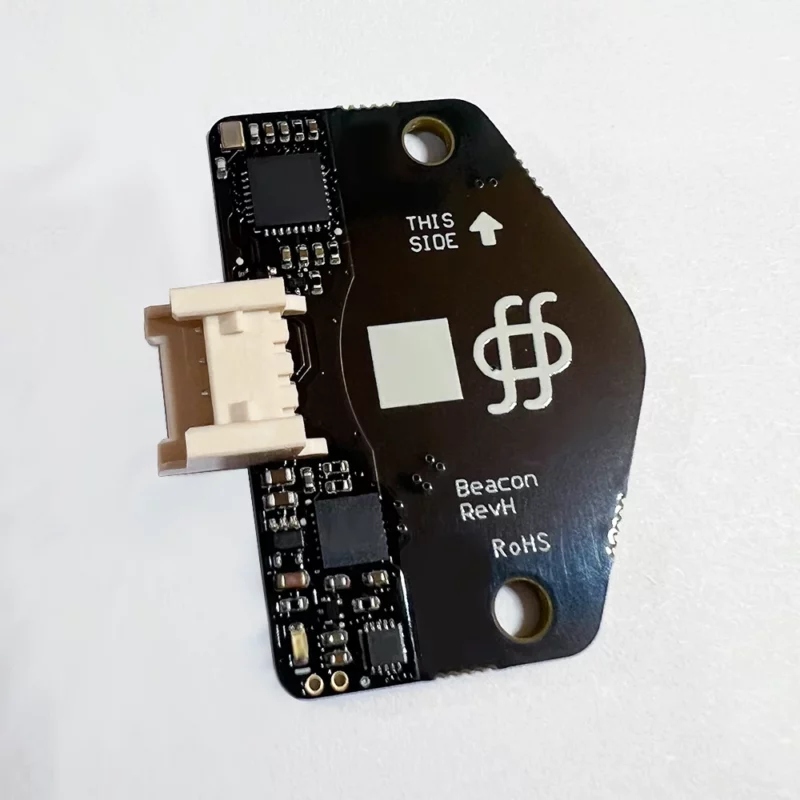

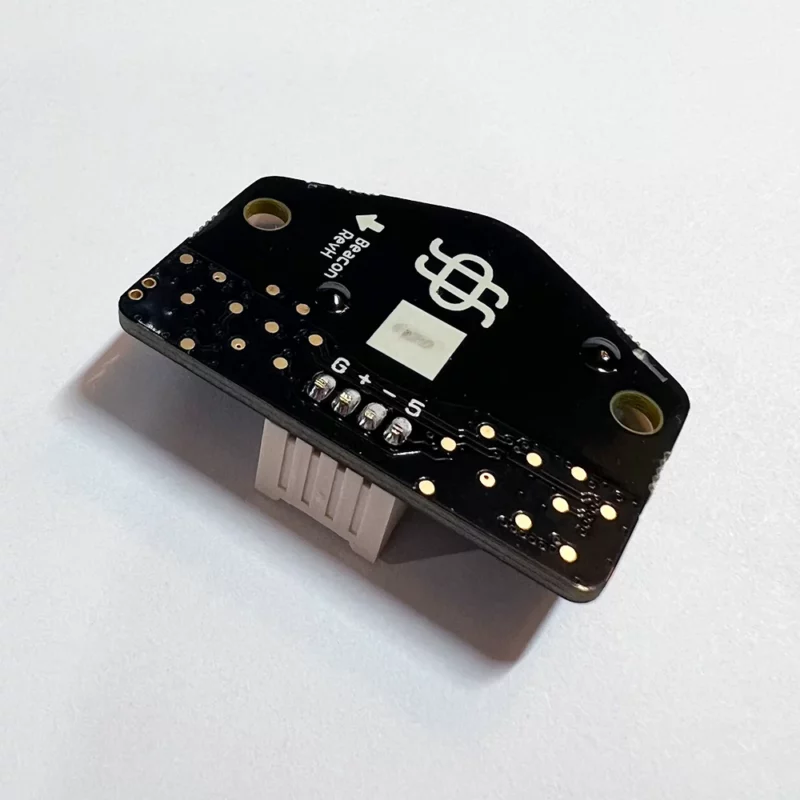

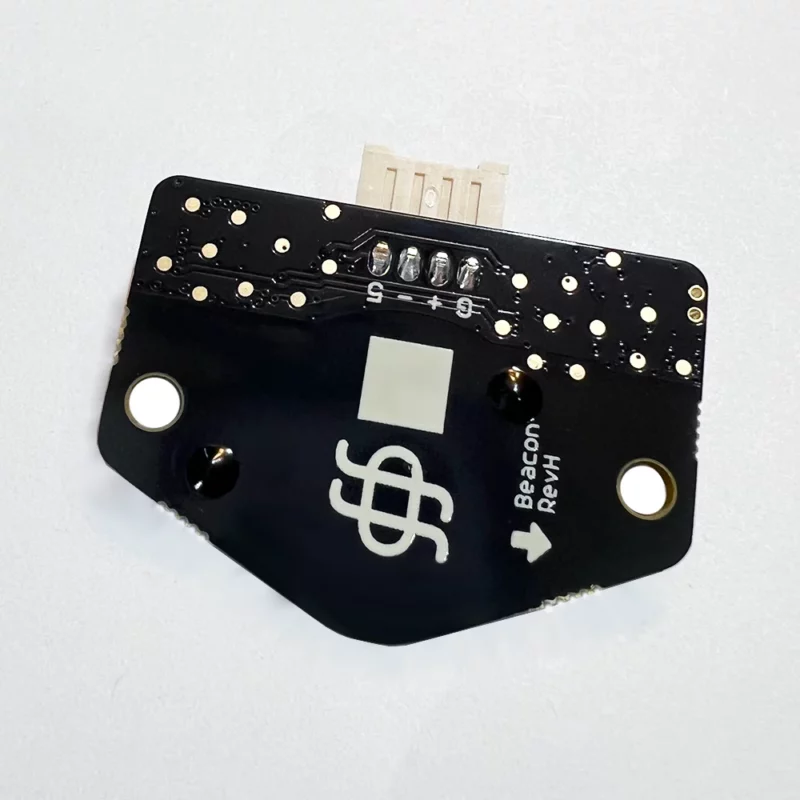

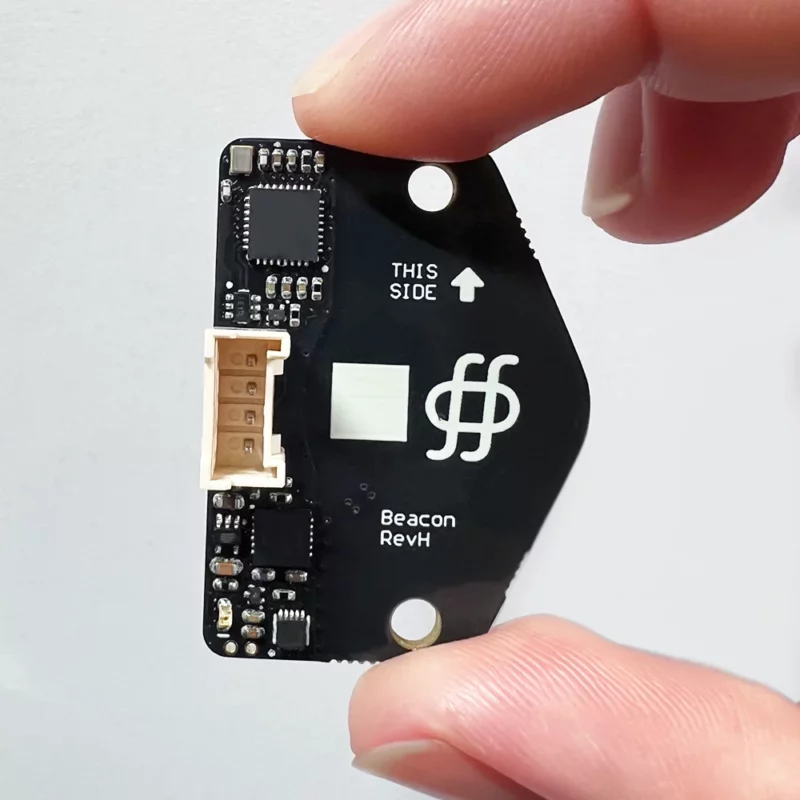

Beacon 3D Sensor Surface Scanner REV H

$151.50

or
Beacon 3D Sensor Surface Scanner REV H Beacon 3D Sensor Surface Scann...

$151.50

Select options

Nervous about your first layer?

Beacon is so fast, it scans right before the first layer, measuring exactly what you’re printing on.

Fast Surface Mesh

Beacon directly measures distance for rapid mesh construction at up to 500mm/s, without ever moving the z axis.
RevD-her

Uncompromising Precision

Meticulously optimized to achieve 0.5um resolution at 1k samples per second with <350nm typical standard deviation.

High Temperature

Rated up to 115°C ambient and designed for minimal thermal drift and equipped with active temperature compensation.
Mesh-her
Graph-her

On-Board Accelerometer

Klipper’s first high temperature rated accelerometer for simplifying resonance measurement and compensation.

2nd Generation Design​

Optimized materials and design achieve +15% sensitivity, -40% thermal drift, and improved durability against minor abrasions.
Vez-her

Beacon Technology

Beacon uses eddy current to scan your print surface at the sub-micron level for consistent results and high repeatability.

20sec

HIGH PERFORMANCE
Total mesh time for a typical size printer.

0.5µm

HIGH RESOLUTION
Native displacement measurement with sub-micron (0.0005mm) precision.

1kHz

HIGH BANDWIDTH
Dense grid sampling with no z motion.

<350nm

LOW NOISE
Standard deviation under typical operating conditions.

3.5g

LOW MASS
Lightweight at 3.5g for minimal impact on machine dynamics.

115C

LOW DRIFT
Precision components for thermal stability and low aging.
