Aluminium 2020/3030 Diagonal Support by Spannsyteme for RatRig

Aluminium 2020/3030 Diagonal Support by Spannsyteme for RatRig

30.79 AUD

How it is used

Bolt the brace across the corner where two extrusions meet. It forms a triangle, which stops the frame from racking, so the printer stays square and shakes less at high acceleration.

  • Use M6 × 12 mm screws and T-nuts that fit your extrusion. They are not included.
  • Fit one brace per corner that needs it, and check the frame is square before tightening.
  • Available in silver (raw aluminium).

Aluminium 2020/3030 Diagonal Support by Spannsyteme for RatRig

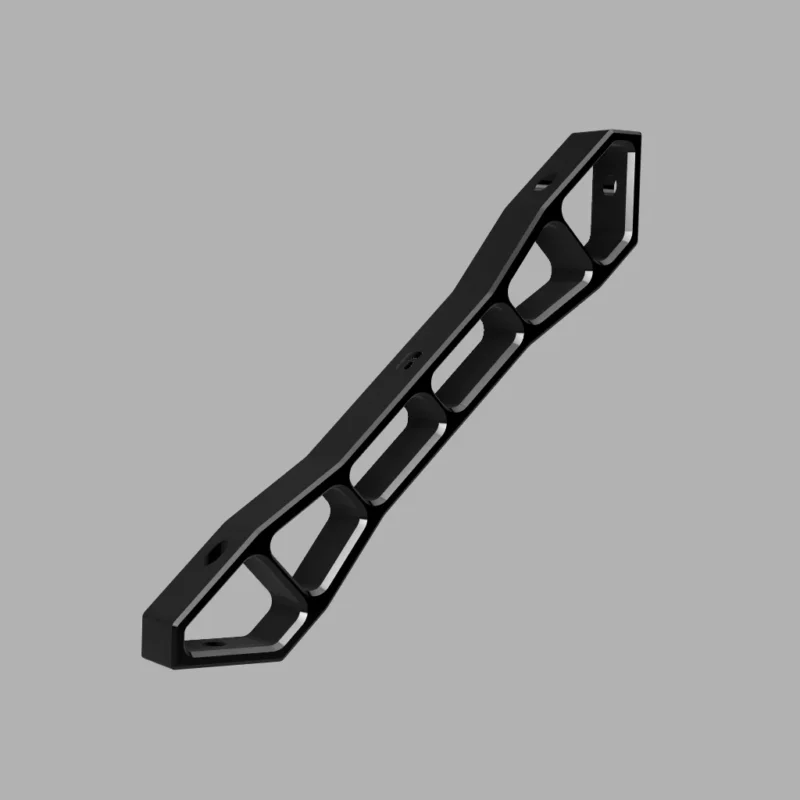

This aluminium diagonal support is a lightweight, rigid, and strong diagonal brace for aluminium 2020 and 3030 extrusion frame 3D printers. It is made in Austria from aerospace-grade aluminium and machined to a high quality, great tolerances, and beautiful surface finish.
  • Dimensions: 195 x 30 x 19 mm
  • Material: EN AW 7075
  • Production: Precision CNC milling
  • Surface : (with minimal handling scratches)
    • Raw aluminium
    • Anodized black aluminium
  • Note:
    • Fits all 3030 aluminium extrusions
    • Fits all 2020 aluminium extrusions
    • Distance from Plane to 45° hole is 125.40 mm
    • M6x12 mm screws and nuts needed
    • No screws or nuts included
  • Design: Credit goes to Simon Vez (VzBot)
