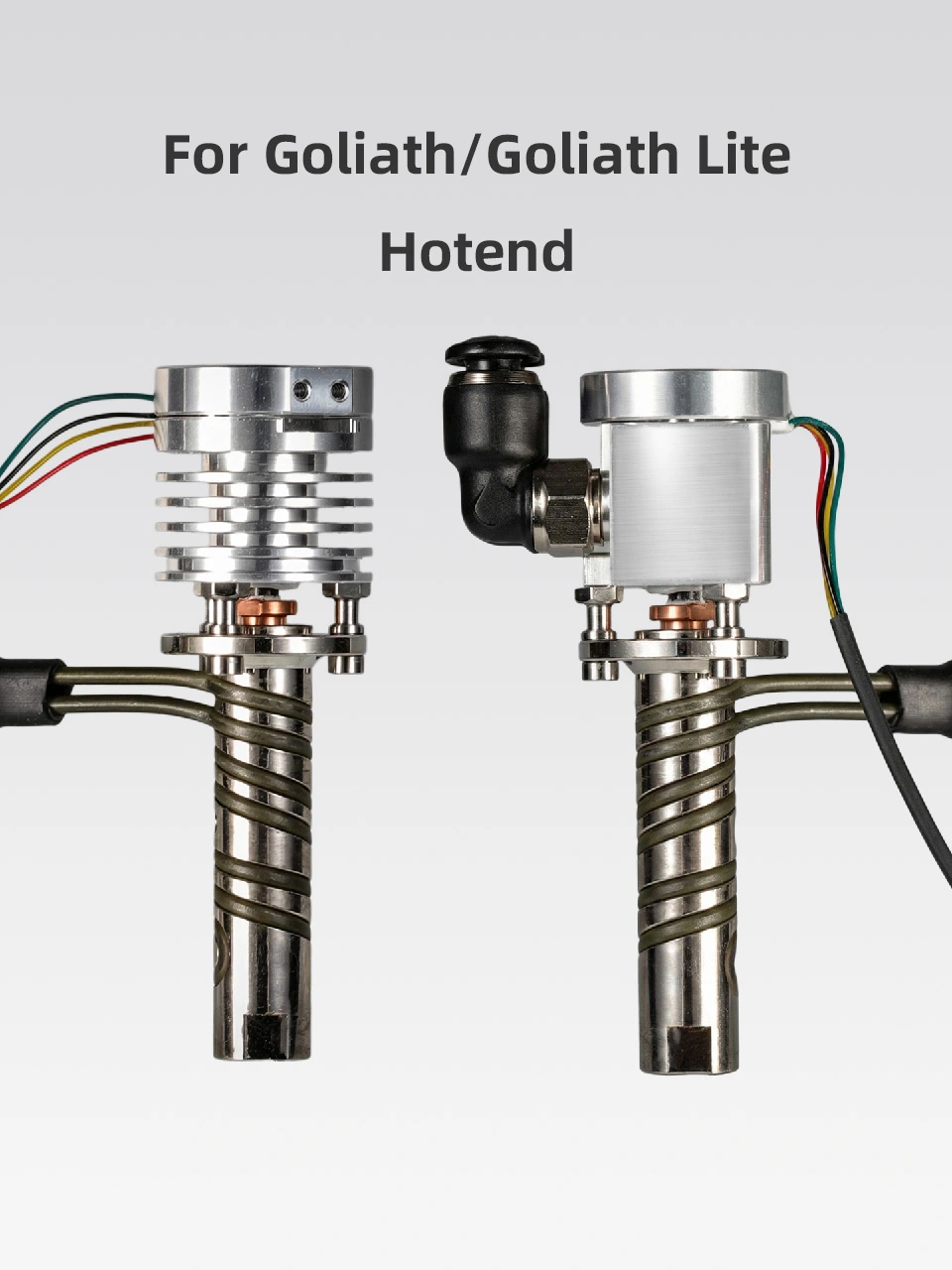

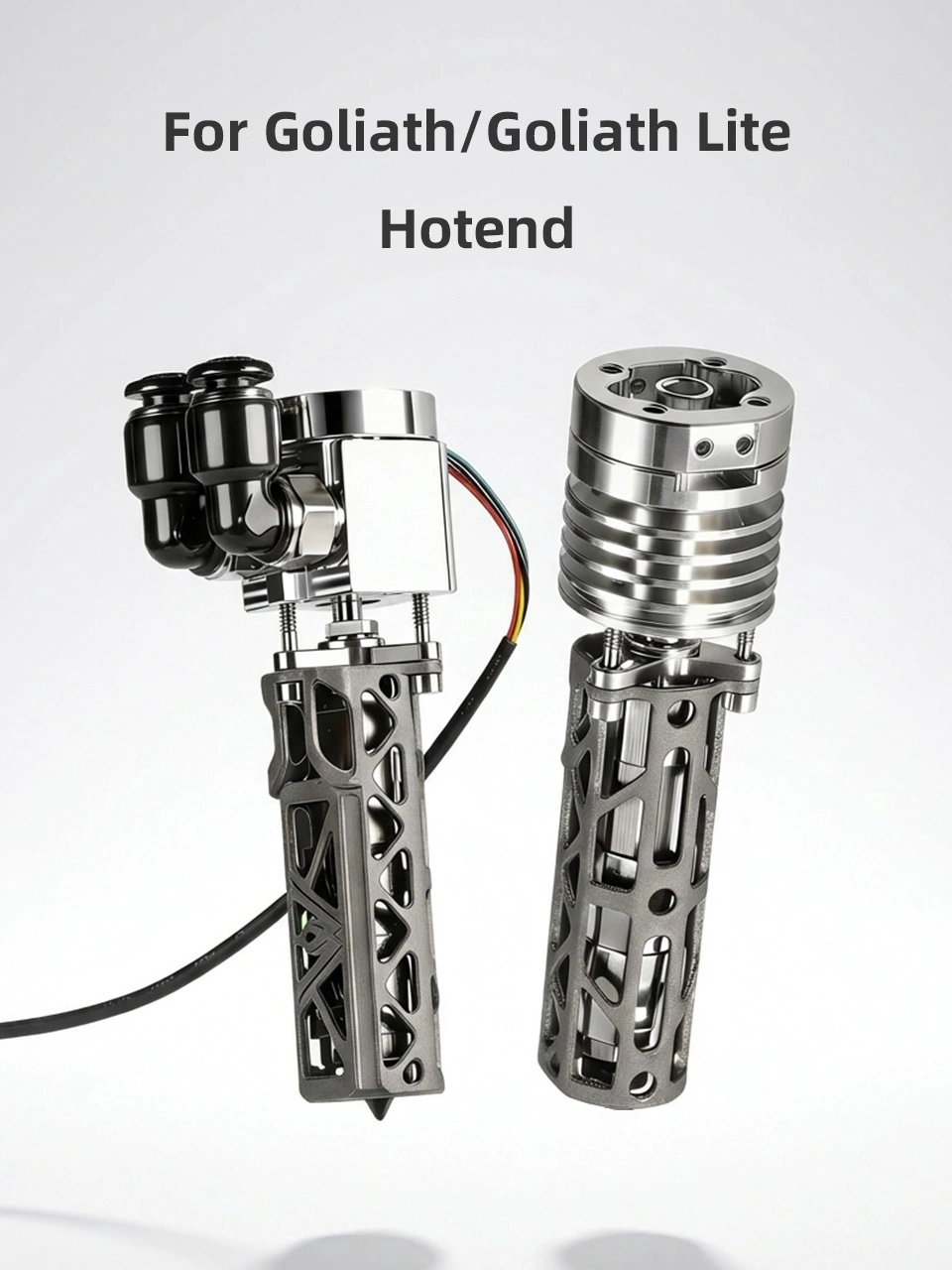

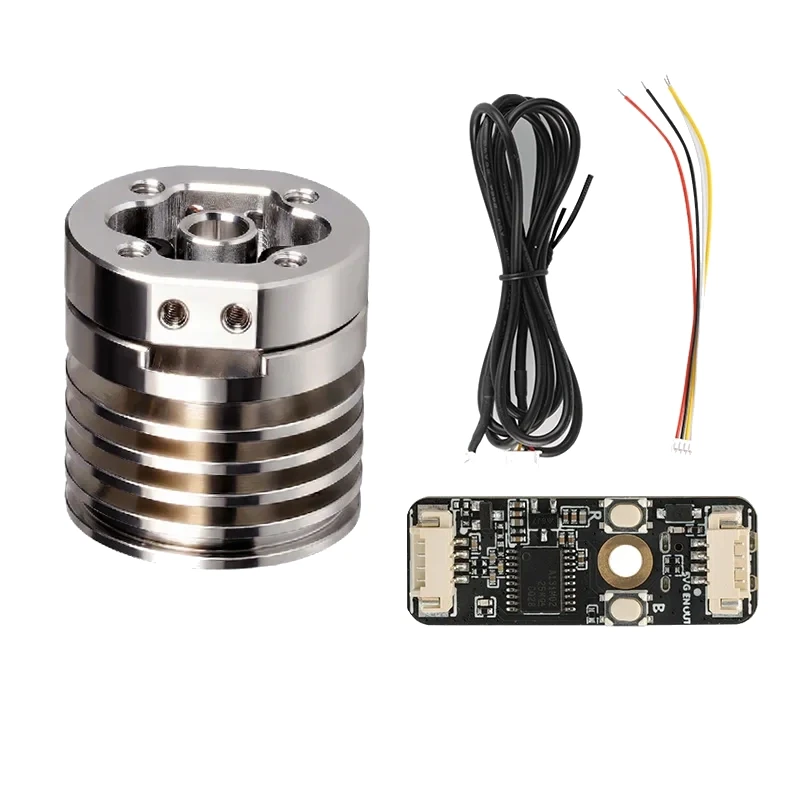

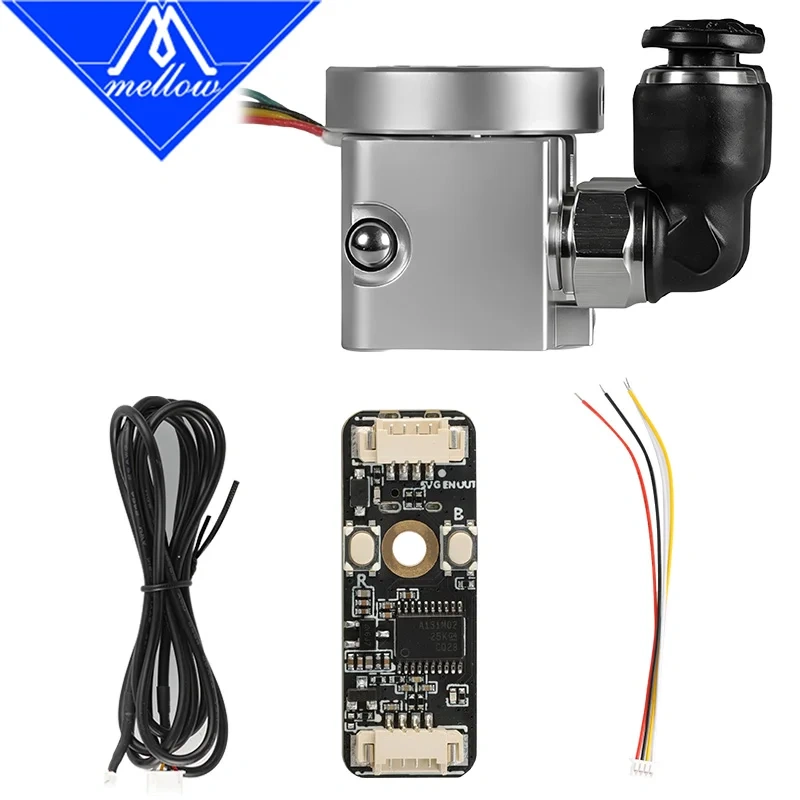

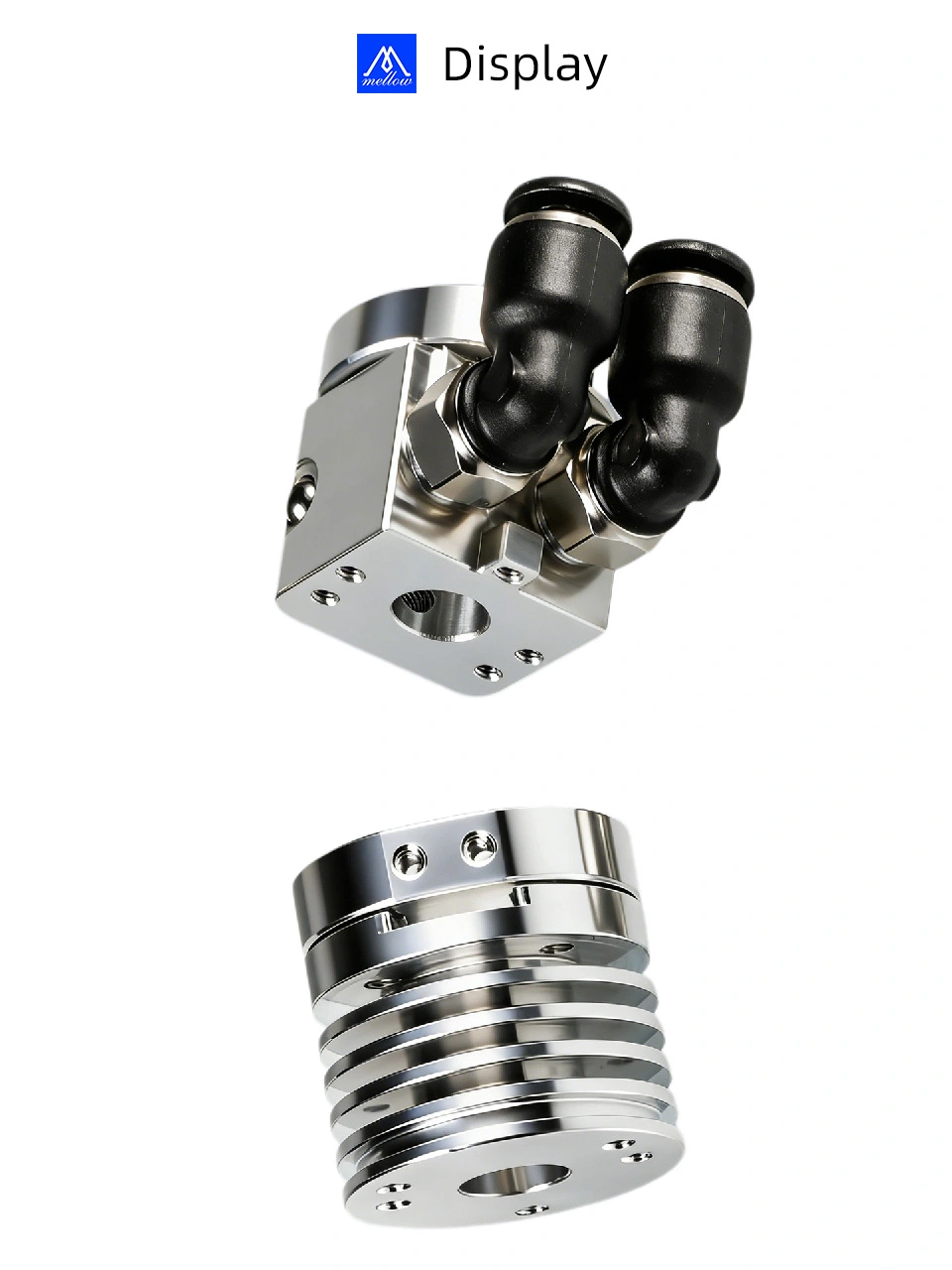

ALPS Pressure Sensor Module for Goliath Hotend

ALPS Pressure Sensor Module for Goliath Hotend

35.05 AUD

 ALPS Pressure Sensor Module for Goliath Hotend

High-Precision Auto Z Homing & Mesh Bed Levelling Solution

Designed specifically for Goliath hotends, this ALPS-based pressure module enables accurate automatic Z-axis homing and mesh bed levelling through real-time pressure sensing.

Key Features

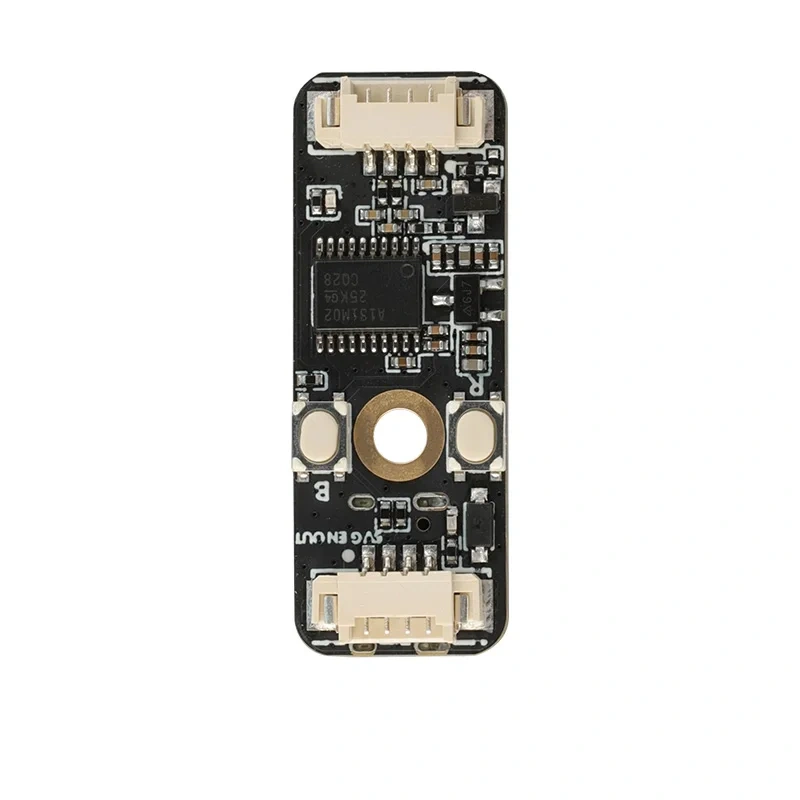

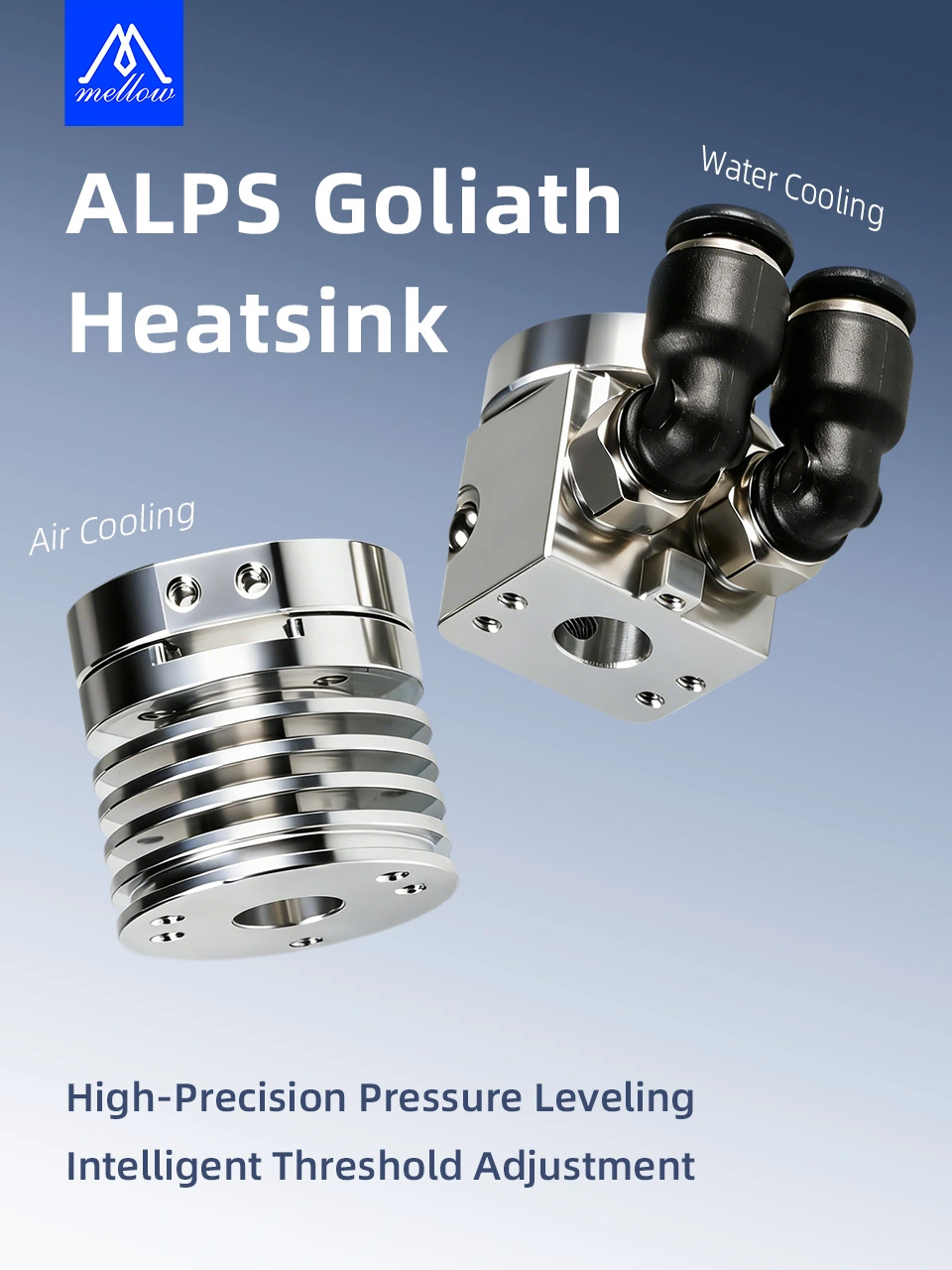

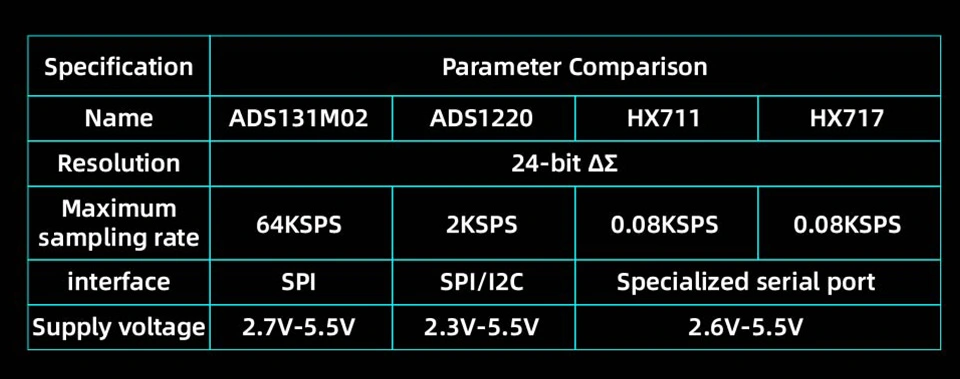

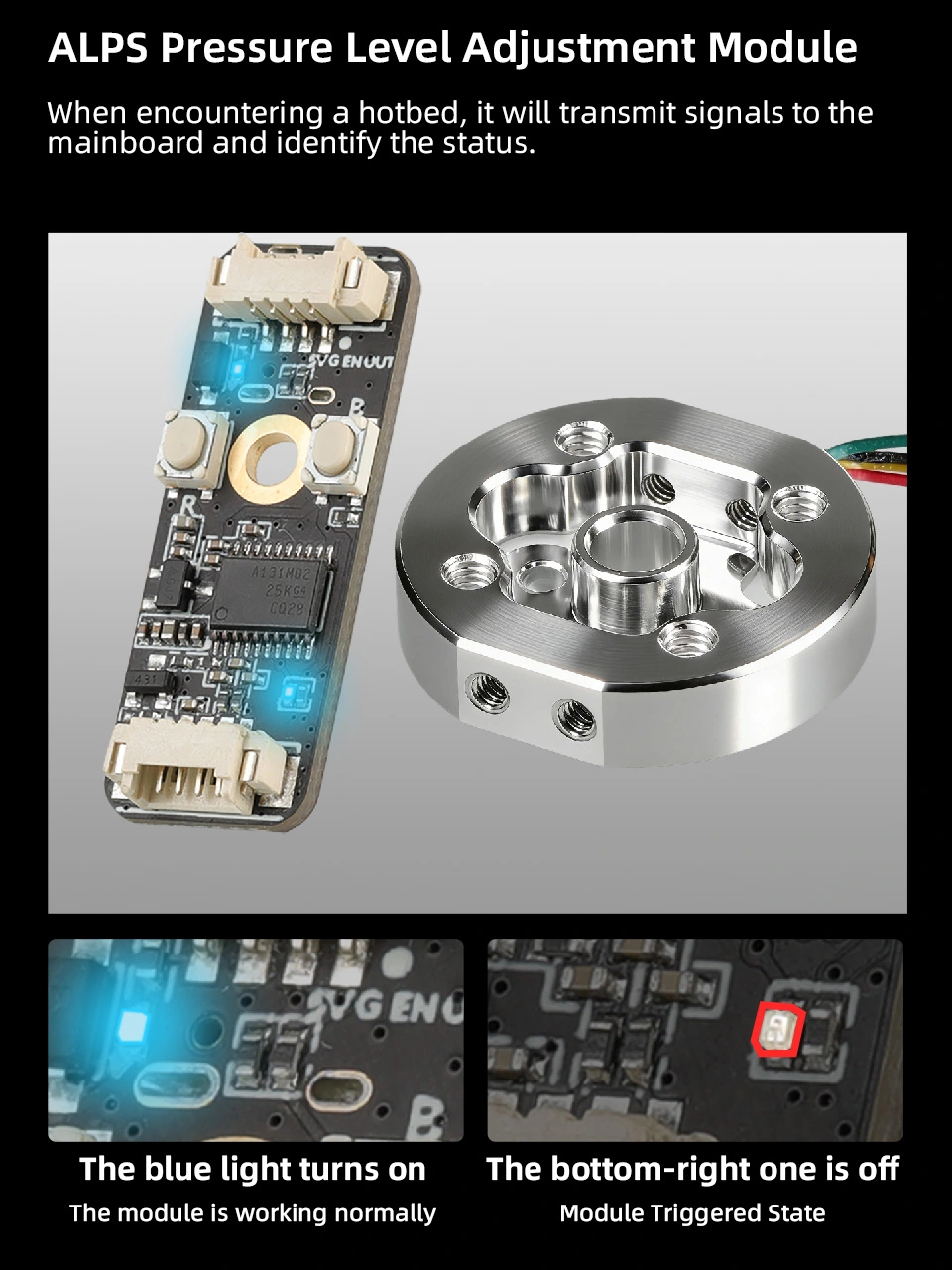

High-Sensitivity Pressure Detection Based on ADS131M02, the module detects nozzle-to-bed contact with high precision, achieving stable and accurate levelling. No Z-Offset Recalibration Needed After nozzle replacement, no need to readjust Z height, saving time and improving workflow efficiency. Integrated Top-Mount Design Installed directly on top of the heatsink, requiring minimal installation space and maintaining a compact setup. No Nozzle Offset Adjustment Required Hotend installation does not require coordinate offset calibration, simplifying setup. CNC Aluminium Construction Made from high-precision aluminium alloy for durability, stability, and consistent performance.

Benefits

  • Improves first-layer success rate
  • Eliminates errors from mechanical endstops
  • Enables precise and repeatable bed levelling
  • Reduces manual calibration effort

Application

  • Auto Z-axis homing (Z Home)
  • Mesh Bed Levelling (MBL)
  • High-performance and automated 3D printing setups

 Important Notes

  • Recommended: Use with a nozzle wiping function to ensure accuracy
  • Ensure the module issecurely installedto avoid vibration issues
  • Double-check allcable connectionsbefore use
  • Perform multiple levelling tests during initial setup

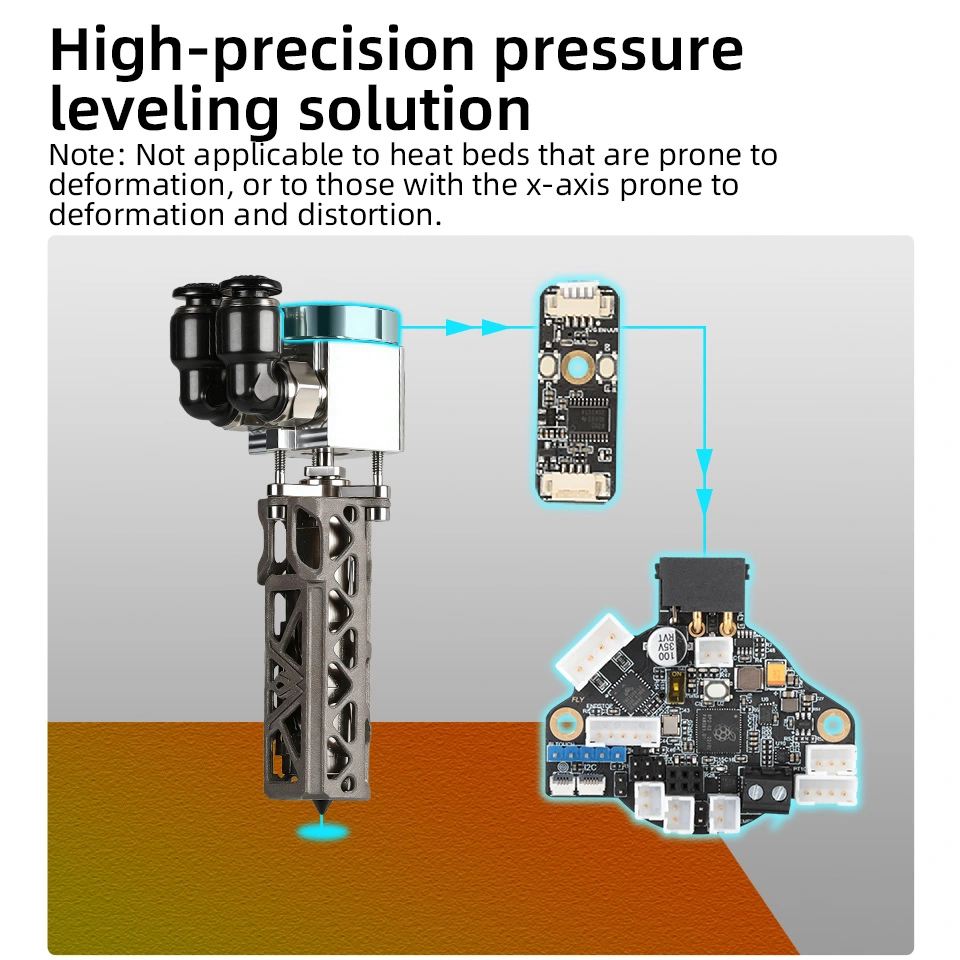

  • Must be connected to mainboard/toolboard— Type-C alone will NOT work

  • ALPS Pressure Sensor Module for Goliath Hotend – picture 1ALPS Pressure Sensor Module for Goliath Hotend – picture 2ALPS Pressure Sensor Module for Goliath Hotend – picture 3ALPS Pressure Sensor Module for Goliath Hotend – picture 4ALPS Pressure Sensor Module for Goliath Hotend – picture 5ALPS Pressure Sensor Module for Goliath Hotend – picture 6ALPS Pressure Sensor Module for Goliath Hotend – picture 7ALPS Pressure Sensor Module for Goliath Hotend – picture 8ALPS Pressure Sensor Module for Goliath Hotend – picture 9ALPS Pressure Sensor Module for Goliath Hotend – picture 10ALPS Pressure Sensor Module for Goliath Hotend – picture 11ALPS Pressure Sensor Module for Goliath Hotend – picture 12ALPS Pressure Sensor Module for Goliath Hotend – picture 13

MIG-19915
